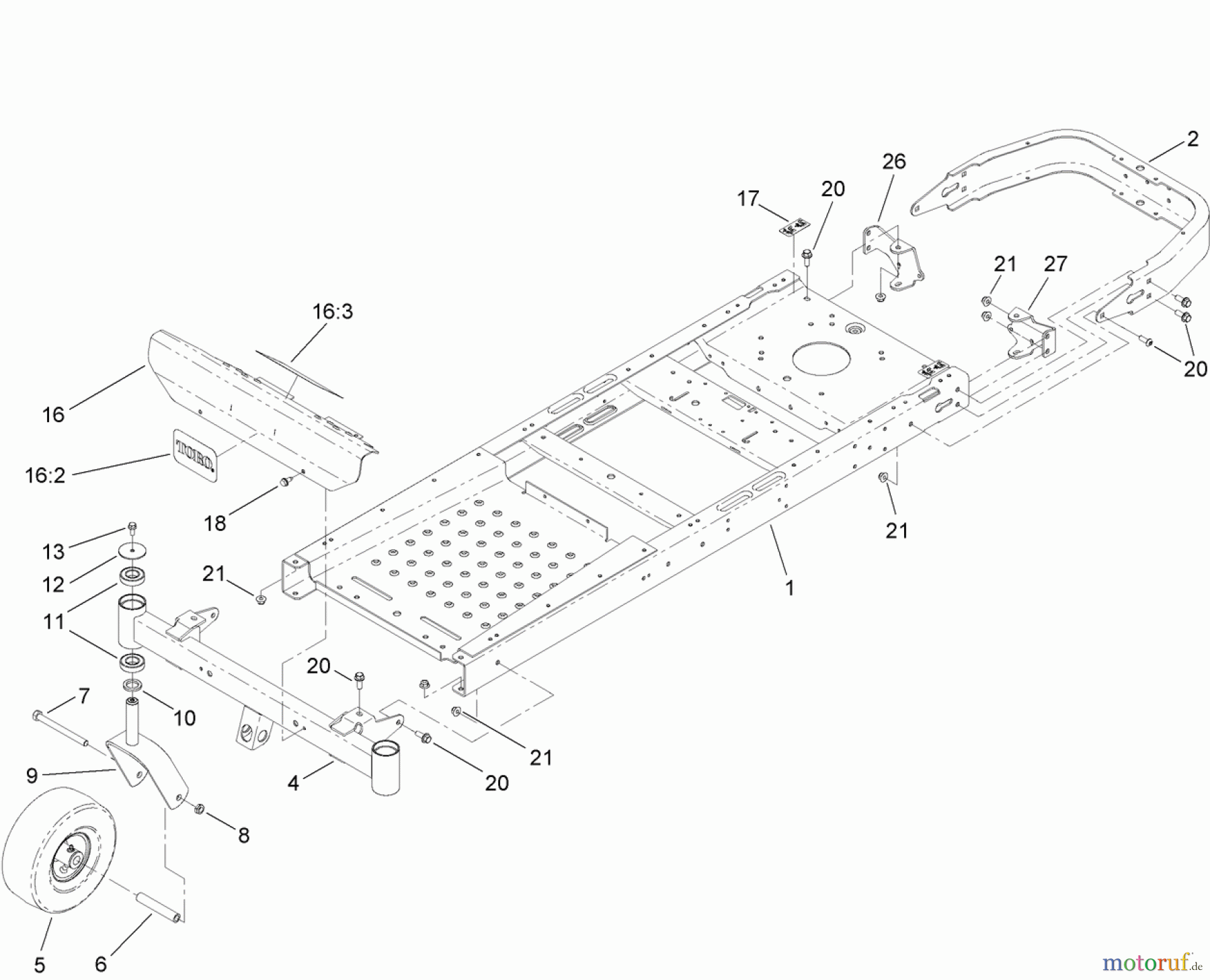

FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY 74388 (ZS 3200S) - Toro TimeCutter ZS 3200S Riding Mower, 2012 (SN 312000001-312999999)

Pos		Article Number	Description
1		TR121-2970-01	FRAME
2		TR110-1920-01	BUMPER-REAR
4		TR120-5516-01	AXLE-FRONT
5		TR120-5515	CASTER WHEEL ASM
6		TR104-3667	Radbuechse
7		TR3252-2	SCHRAUBE
8		TR3296-45	NUT-LOCK, NI
9		TR120-7964-01	CASTER FORK ASM
10		TR117-7394	WASHER-THRUST
11		TR109-3678	BEARING-BALL
12		TR119-8915	WASHER
13		TR3234-47	SCREW-HHF
16		TR125-0072
16:2		TR105-8278	Klebeschild
16:3		TR120-2239	DECAL-DANGER
17		TR121-2989	DECAL-BYPASS
18		TR32144-70	Schraube
20		TR3234-42	Imbusschraube
20		TR3274-94	SCREW-HSBH
21		TR104-8301	Mutter
26		TR121-0737-01	MOUNT-HYDRO, REAR RH
27		TR121-0738-01	MOUNT-HYDRO, REAR LH
