Toro 74399 (Z5020) - TimeCutter Z5020 Riding Mower, 2009 (290000440-290999999) CRANKCASE ASSEMBLY KOHLER SV720-0040 Spareparts

• Start
• Toro Neu
• Mowers, Zero-Turn
• 74399 (Z5020) - Toro TimeCutter Z5020 Riding Mower, 2009 (290000440-29
• CRANKCASE ASSEMBLY KOHLER SV720-0040

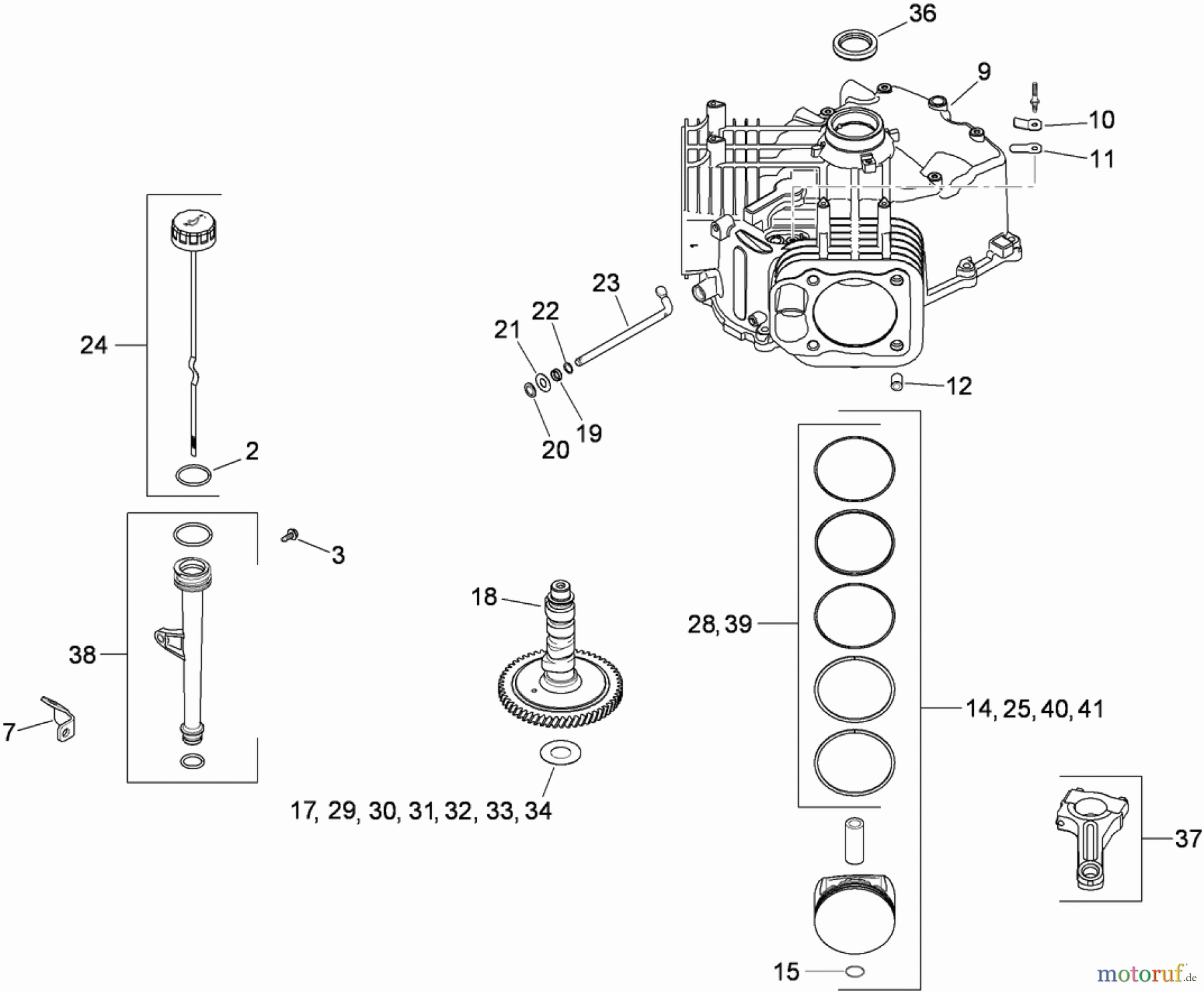

CRANKCASE ASSEMBLY KOHLER SV720-0040 74399 (Z5020) - Toro TimeCutter Z5020 Riding Mower, 2009 (290000440-290999999)

Pos		Article Number	Description
2		KH2515302-S	O-RING, DIPSTICK
3		KHM-545013-S	SCREW, FLG THD FRM M5X0.8X13
7		KH2412619-S	BRACKET, OIL FILL TUBE
9		KH3252203	SV710-740 SHORTBLOCK
10		KH2401804-S	RETAINER, BREATHER REED
11		KH1240202-S	REED, BREATHER
12		KH2438013-S	USE 24 380 16-S PIN
14		KH2587405-S	KIT, PISTON
15		KH2401801-S	RETAINER, PISTON PIN
17		KH1242207-S	SHIM, CAMSHAFT (WHITE .028")
18		KH3201201-S	KIT, CAMSHAFT
19		KH2803209-S	SEAL, GOVERNOR CROSS SHAFT
20		KH2401809-S	RETAINER, RING
21		KHM-931010-S	WASHER, FLAT 9 MM
22		KH2446815-S	WASHER, FLAT 11/32"
23		KH2414438-S	SHAFT, GOVERNOR CROSS
24		KH2403804-S	DIPSTICK, ASSY
25		KH2587408-S	KIT,PISTON W/RING (0.25) 83mm
28		KH2410816-S	RING SET (.25)
29		KH1242208-S	SHIM, CAMSHAFT (BLUE .03")
30		KH1242209-S	SHIM, CAMSHAFT (RED .032")
31		KH1242210-S	SHIM, CAMSHAFT (YELLOW .034")
32		KH1242211-S	SHIM, CAMSHAFT (GREEN .036")
33		KH1242212-S	SHIM, CAMSHAFT (GRAY .038")
34		KH1242213-S	SHIM, CAMSHAFT (BLACK .04")
36		KH2403219-S	SEAL, OIL (HELIX LIP)
37		KH2406724-S	SIEHE 2406728-S-KOH
38		KH2512307-S	TUBE ASSEMBLY
39		KH2410814-S	RING SET (STD)
40		KH2587402-S	KIT,PISTON W/RING (0.08) 83mm
41		KH2487427-S	USE K24 874 02-S ,KIT PISTON
		KH2535714-S	LUBRICANT, CAMSHAFT
