Toro 74433 (ZD420) - TimeCutter ZD420 Riding Mower, 2008 (280000001-280999999) DRIVE ASSEMBLY Spareparts

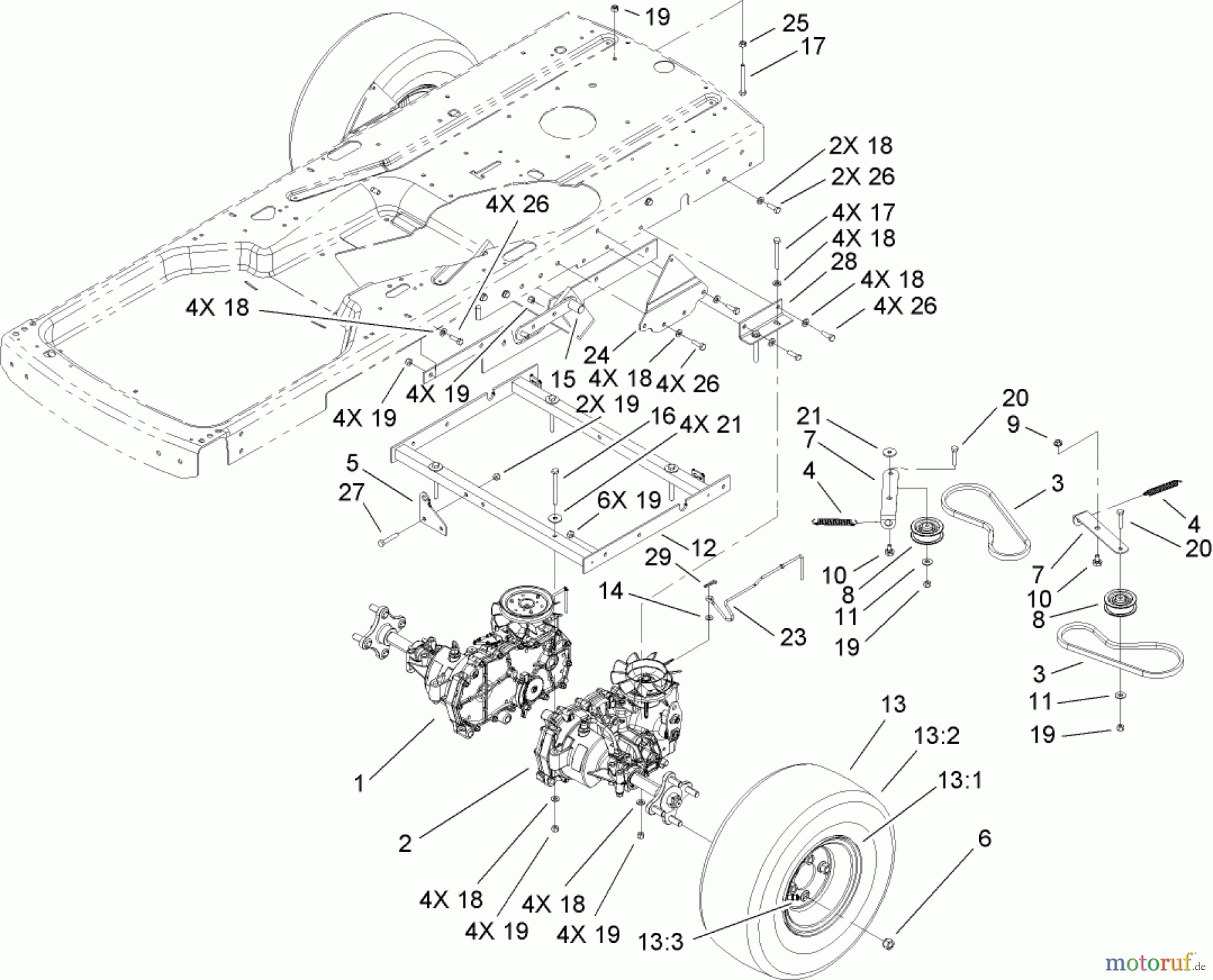

DRIVE ASSEMBLY 74433 (ZD420) - Toro TimeCutter ZD420 Riding Mower, 2008 (280000001-280999999)

Toro Neu Mowers, Zero-Turn 74433 (ZD420) - Toro TimeCutter ZD420 Riding Mower, 2008 (280000001-280999999) DRIVE ASSEMBLY
PosArticle NumberDescription
1 TR114-8520KIT-TRANSAXLE, RH
2 TR114-8521KIT-TRANSAXLE, LH
3 TR106-2174Riemen
4 TR95-3805SPRING
5 TR105-7049BRACKET-SPRING
6 TR242-50Mutter
7 TR105-7047ARM-IDLER
8 TR106-2176Spannrolle
9 TR32128-25NUT-HF
10 TR37-8771Schraube
11 TR3256-3Scheibe
12 TR108-8733-03HYDRO FRAME ASM
13 TR106-7004Rad Kpl.18X10.00-8
13:1 TR242-76Felge
13:2 TR106-7006Reifen
13:3 TR5108VENTIL
13:99 TR107-2491TUBE-TIRE
14 TR3256-1SCHEIBE F. KLEMME
15 TR107-8970-03BRACE-FRAME, LEFT SIDE
16 TR322-20SCREW-HH
17 TR322-13SCREW-HH
18 TR3256-23Scheibe
19 Toro MutterTR3296-29Mutter
20 TR322-7Schraube
21 TR5-4460Scheibe
22 TR107-2464Schaltarm Rechts
23 TR107-2463ARM-BYPASS, LH
24 TR112-4754-03ANCHOR-DAMPER
25 TR3217-6NUT-HEX
26 TR322-5Schraube
27 TR322-9Schraube
28 TR105-7039-03Rahmen
29 TR1-806003HAARNADELSICHERUNG
