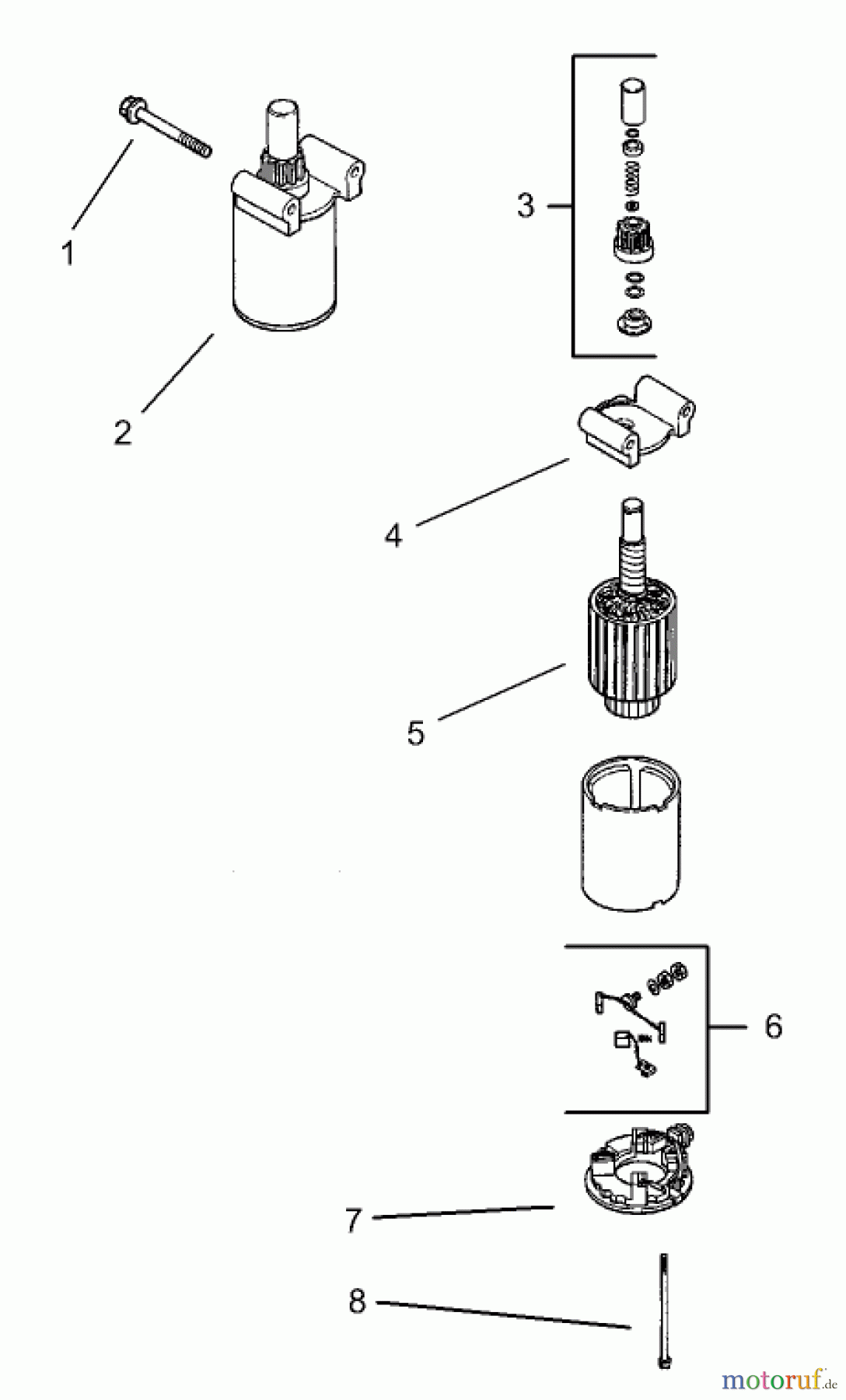

STARTING SYSTEM ASSEMBLY KOHLER CV 490S-27503 74601 (17K-44ZX) - Toro 17K-44ZX TimeCutter ZX Riding Mower, 2003 (230000001-230999999)

Pos		Article Number	Description
1		KHM-839070-S	SCREW, FLG M8X1.25X70
2		KH1209822-S	ELECTRIC STARTER-BENDIX DRIVE
3		KH1275553-S	KIT, DRIVE
4		KH1222719-S	CAP, DRIVE END - (#DSC)
5		KH1217005-S	ARMATURE - DISCONTINUED
6		KH1222101-S	BRUSH KIT
7		KH1222713-S	CAP - DISCONTINUED
8		KH1221101-S	BOLT, THRU #10-24X4 13/32"
