Toro 37771 - Power Max 726 OE Snowthrower, 2013 (SN 313000001-313999999) 26 INCH AUGER GEARCASE ASSEMBLY NO. 119-7641 Spareparts
Start
Toro Neu
Snow Blowers/Snow Throwers
Seite 1
37771 - Toro Power Max 726 OE Snowthrower, 2013 (SN 313000001-31399999

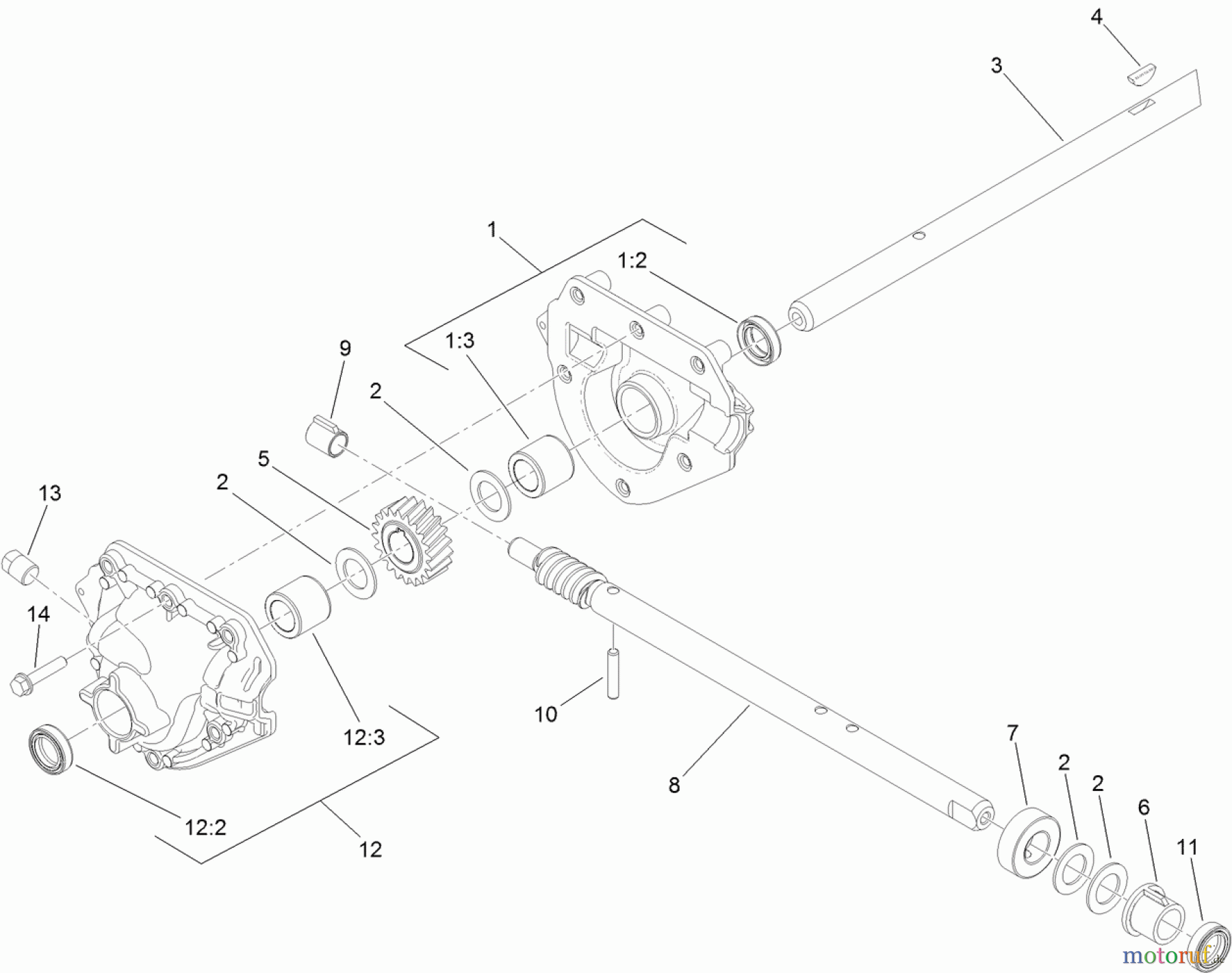

26 INCH AUGER GEARCASE ASSEMBLY NO. 119-7641
26 INCH AUGER GEARCASE ASSEMBLY NO. 119-7641 37771 - Toro Power Max 726 OE Snowthrower, 2013 (SN 313000001-313999999)
Pos
Article Number
Description
1
TR121-1209
1:2
TR121-6634
SEAL-SHAFT
1:3
TR120-9269
2
TR119-7640
WASHER-THRUST
3
TR119-7639
4
TR3257-5
Keil
5
TR119-1576
GEAR-HELICAL, 20 TOOTH
6
TR119-7635
BUSHING-INPUT
7
TR119-7636
COLLAR-THRUST
8
TR121-1234
SHAFT-IMPELLER, ROLLED
9
TR62-1150
Buechse
10
TR107-8899
PIN-DOWEL
11
TR121-6634
SEAL-SHAFT
12
TR121-1210
12:2
TR121-6634
SEAL-SHAFT
12:3
TR120-9269
13
TR121-6832
PLUG-PIPE, SQH
14
TR108-4862
Schraube
