Toro 38026 (1800) - 1800 Power Curve Snowthrower, 2009 (290001001-290999999) HOUSING AND ROTOR ASSEMBLY Spareparts

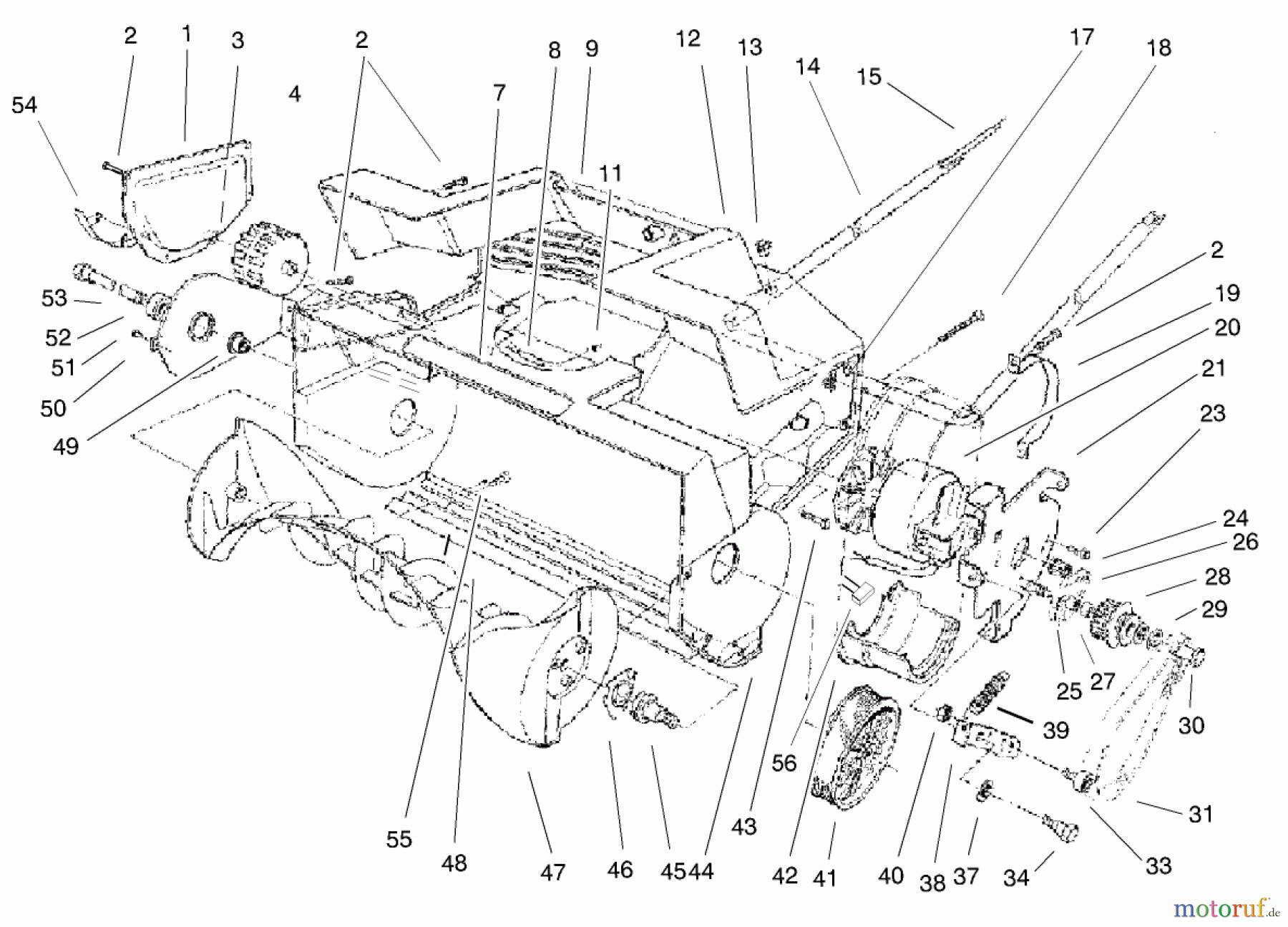

HOUSING AND ROTOR ASSEMBLY 38026 (1800) - Toro 1800 Power Curve Snowthrower, 2009 (290001001-290999999)

Toro Neu Snow Blowers/Snow Throwers Seite 1 38026 (1800) - Toro 1800 Power Curve Snowthrower, 2009 (290001001-290999999) HOUSING AND ROTOR ASSEMBLY
PosArticle NumberDescription
1 TR73-9370-03PLATE - SIDE
2 TR94-4496SCREW-PPH
3 TR32112-1Sicherungskappe
4 TR73-5720RAD
7 TR73-0370AXLE SHAFT
8 TR64-5820Abdeckung
9 TR107-3324Warnschild
11 TR218-511Sticker
12 TR107-3327Verkleidung
13 TR256-307Buechse
14 TR104-9365-03Schiebegestaenge
15 TR73-3630110-3111
17 TR73-1800FOAM FILTER
18 TR32144-88Schraube
19 TR73-0120Motorhalterung
20 TR107-3321E-Motor
21 TR73-8680Motorplatte
23 TR32144-100Schraube
24 TR73-3660Riemenscheibe
25 TR73-0160BELT-PULLEY, IDLER/DRIVER
26 TR73-3580Distanzstueck
27 TR
28 TR73-357073-3810
29 TR73-0041WASHER-THRUST
30 TR73-3530Spannarm
31 TR61-8802Keilriemen
33 TR73-5730IDLER BEARING
34 TR27-0411Schraube
37 TR25-5641WASHER
38 TR73-3600Halter f. Spannarm
39 TR73-3680IDLER SPRING
40 TR3296-47Mutter
41 TR73-3550Riemenscheibe
42 TR73-36501800 CLAMP MTR BRCKT
43 TR32104-97Schraube
44 TR73-3640ROTOR/HOUSING 1800
45 TR73-0990Welle
46 TR73-0860COUPLER, ROTOR
47 TR73-8590ROTOR - 1800 SNOWBLOWER
48 TR73-3690Schuerfleiste
49 TR73-8580BUSHING
50 TR73-0010-0373-1900
51 TR3290-271Niete
52 TR100-1048Kugellager
53 TR73-0020Welle
54 TR73-1570SKID, 1800
55 TR106-6461Schraube
56 TR107-3322FILTER-RFI
