Toro 38040 (524) - 524 Snowthrower, 1980 (0000001-0999999) ENGINE ASSEMBLY (MODEL NO. 38040) Spareparts

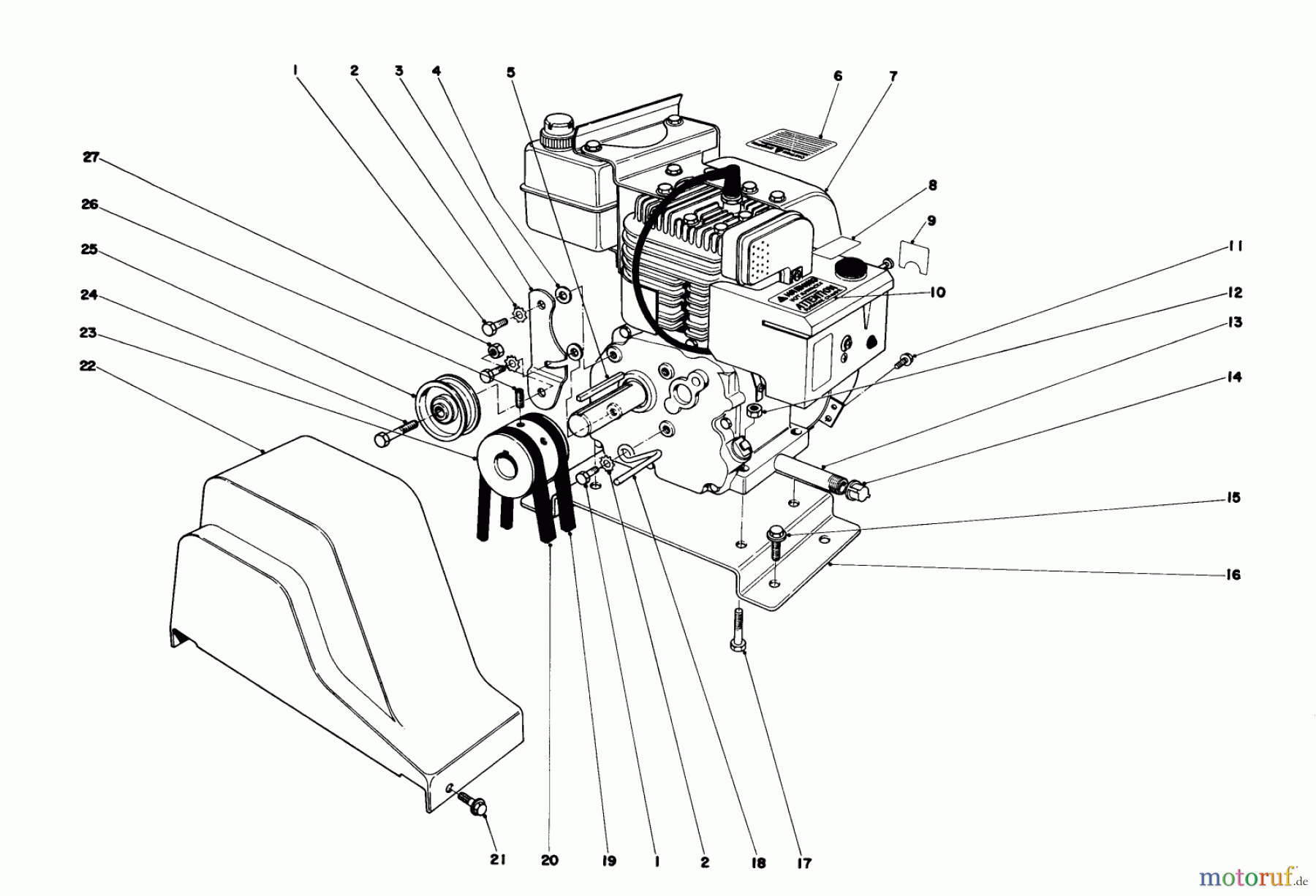

ENGINE ASSEMBLY (MODEL NO. 38040) 38040 (524) - Toro 524 Snowthrower, 1980 (0000001-0999999)

Toro Neu Snow Blowers/Snow Throwers Seite 1 38040 (524) - Toro 524 Snowthrower, 1980 (0000001-0999999) ENGINE ASSEMBLY (MODEL NO. 38040)
PosArticle NumberDescription
1 TR3210-2Schraube
2 TR3255-8Federring
3 TR20-1800ENGINE IDLER ARM
4 TR3256-23Scheibe
5 TR5-0930Keil
6 TR29-6380SCHILD
7 TR221-638
8 TR39-3860DISCONTINUED
9 TR39-3850SCHILD
10 TR29-6390SCHILD
11 TR12-3270Schraube
12 Toro MutterTR3296-29Mutter
13 TR289-34Verlaengerung
14 TR288-2Hutmutter
15 TR32144-15Schraube
16 TR25-5990DISCONTINUED
17 TR322-7Schraube
18 TR17-5530Riemenfuehrung
19 TR20-1820V-BELT
20 TR26-9670Keilriemen
21 TR32144-10SCREW-HWH
22 TR20-1830BELT GUARD
23 TR21-4100DISCONTINUED
24 TR323-29Schraube
25 TR3-4244Riemenscheibe
26 TR3246-143246-3
27 TR32146-232153-2
