Toro 38116 (CR-20R) - CR-20 Snowthrower, 1988 (8000001-8999999) CARBURETOR NO. 632142A Spareparts

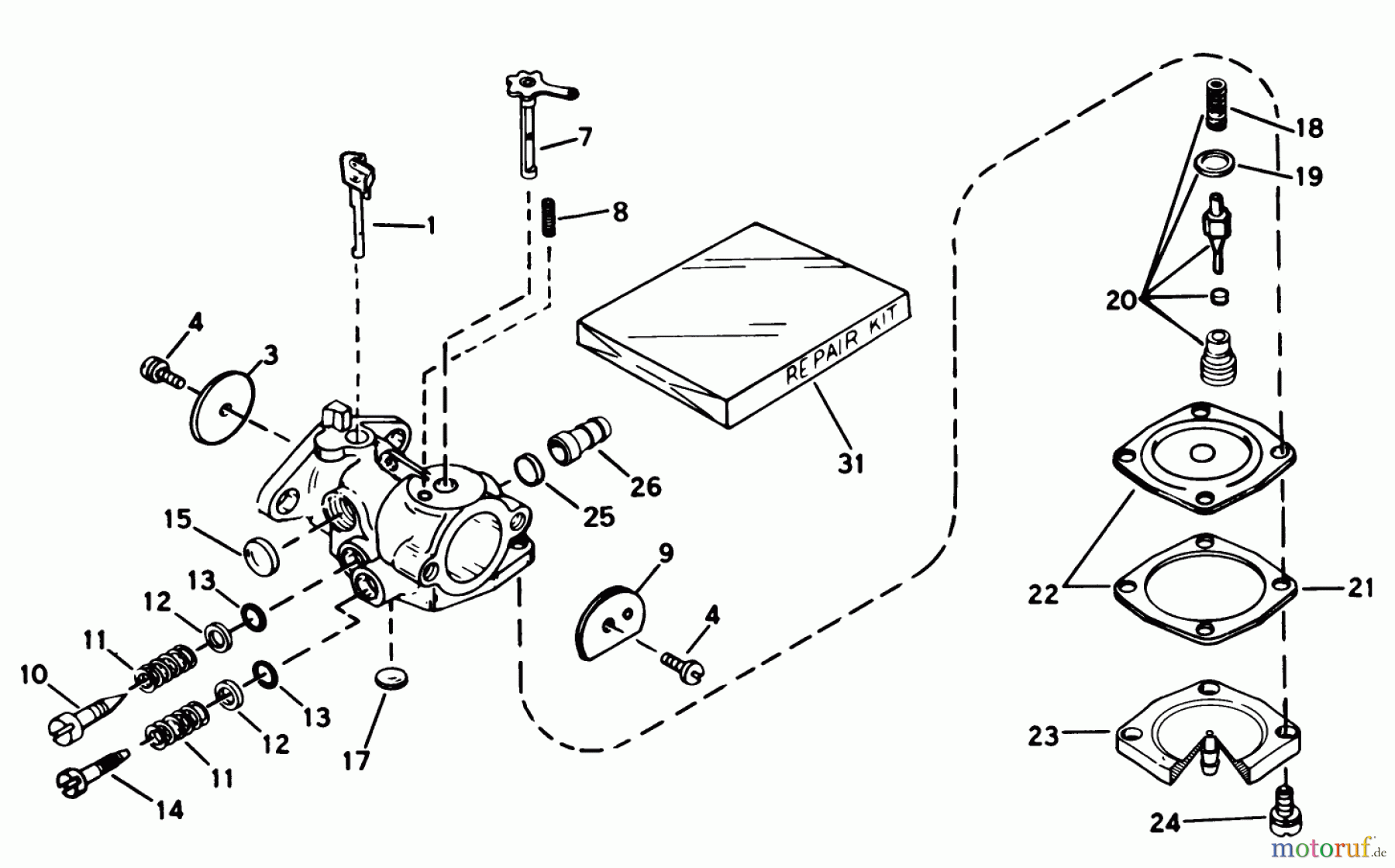

CARBURETOR NO. 632142A 38116 (CR-20R) - Toro CR-20 Snowthrower, 1988 (8000001-8999999)

Toro Neu Snow Blowers/Snow Throwers Seite 1 38116 (CR-20R) - Toro CR-20 Snowthrower, 1988 (8000001-8999999) CARBURETOR NO. 632142A
PosArticle NumberDescription
1 TC632130SHAFT & LEV
3 TC631036SHUTTER
4 TC650506SCHRAUBE
7 TC631888SHAFT & LEV
8 TC630735SPRING
9 TC31837DROSSELKLAPPE
10 TC631562EINSTELLSCHRAUBE
11 TC630738FEDER
12 TC630739WASHER
13 TC630740O-RING
14 TC630898ADJ SCREW
15 TC630748WELCH PLUG
17 TC630746USE 632554
18 TC631049SPRING
19 TC630742DICHTUNG
20 TC630932AINLET NEEDLE
21 TC630750USE 630750A
22 TC630978MEMBRAN
23 TC632127DECKEL
24 TC650817SCREW
25 TC632163DISK
26 TC632164AUSLASSTUTZEN
31 TC631893AREPAIR KIT
