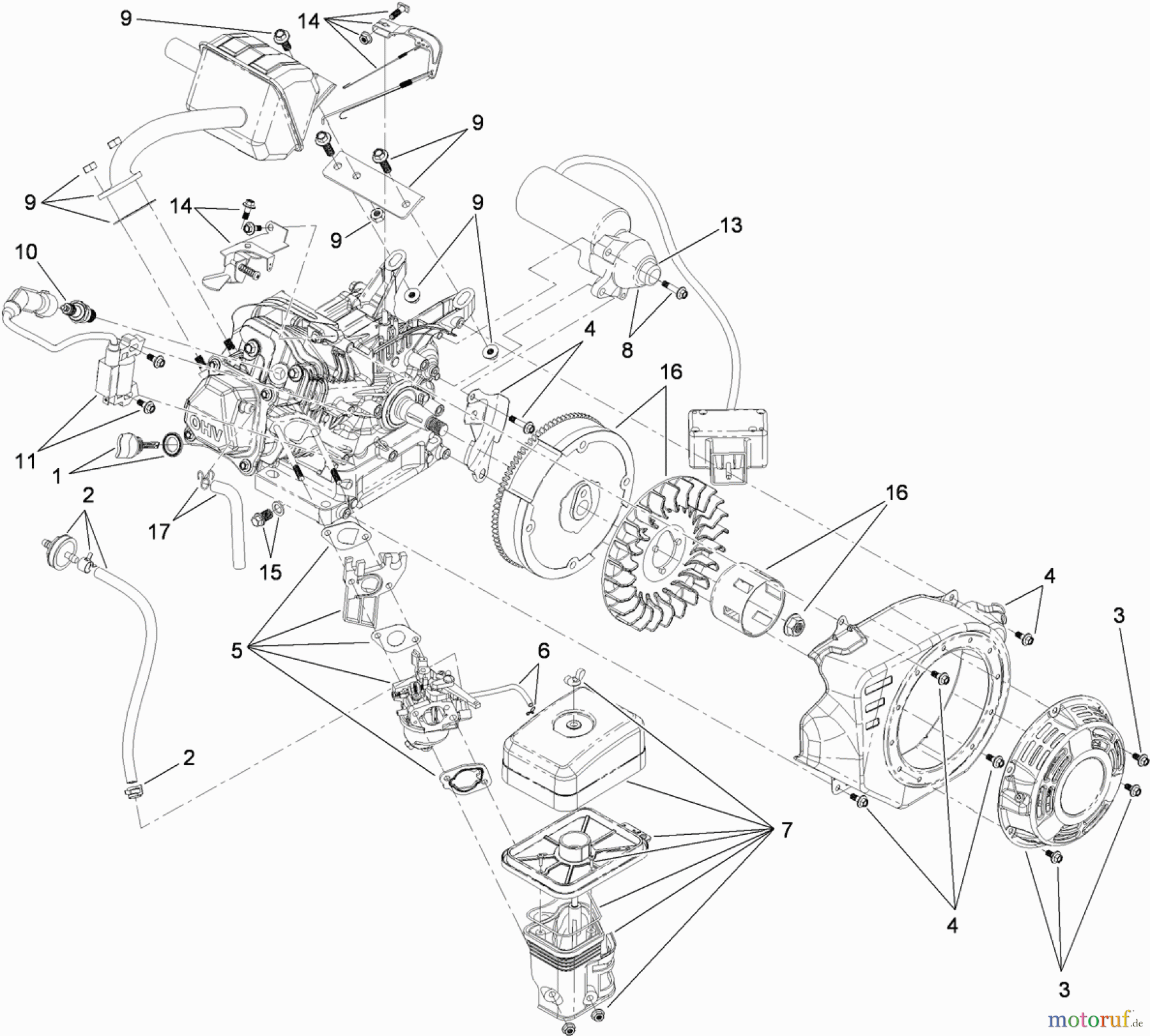

Toro 38589 - Power Clear Snowthrower, 2010 (310000001-310999999) ELECTRIC START ENGINE COMPONENT ASSEMBLY NO. 119-1942 Spareparts

ELECTRIC START ENGINE COMPONENT ASSEMBLY NO. 119-1942 38589 - Toro Power Clear Snowthrower, 2010 (310000001-310999999)

Toro Neu Snow Blowers/Snow Throwers Seite 1 38589 - Toro Power Clear Snowthrower, 2010 (310000001-310999999) ELECTRIC START ENGINE COMPONENT ASSEMBLY NO. 119-1942
PosArticle NumberDescription
1 TR119-1944DIPSTICK AND O-RING KIT
2 TR119-1953120-4402
3 TR119-1945RECOIL KIT
4 TR119-1946BLOWER SHROUD KIT
5 TR120-4416CARB FLOAT, VALVE AND GASKET K
5 TR120-4419CARB AND FUEL LINE KIT
6 TR119-1949PRIMER LINE KIT
7 TR119-1950HEATER BOX KIT
8 TR119-1952ELECTRIC STARTER KIT
9 TR119-1954MUFFLER KIT
10 TR119-190181-3250
11 TR119-1959IGNITION KIT
12 TR119-1955GASKET AND SEAL KIT
13 TR119-1956PINION KIT
14 TR119-1957GOVERNOR KIT
15 TR119-1923DRAIN PLUG KIT
16 TR119-1958FLYWHEEL KIT
17 TR119-1921BREATHER TUBE KIT
