Toro 38601 - Snow Commander Snowthrower, 2005 (250000001-250999999) UPPER SHROUD AND CONTROL PANEL ASSEMBLY Spareparts

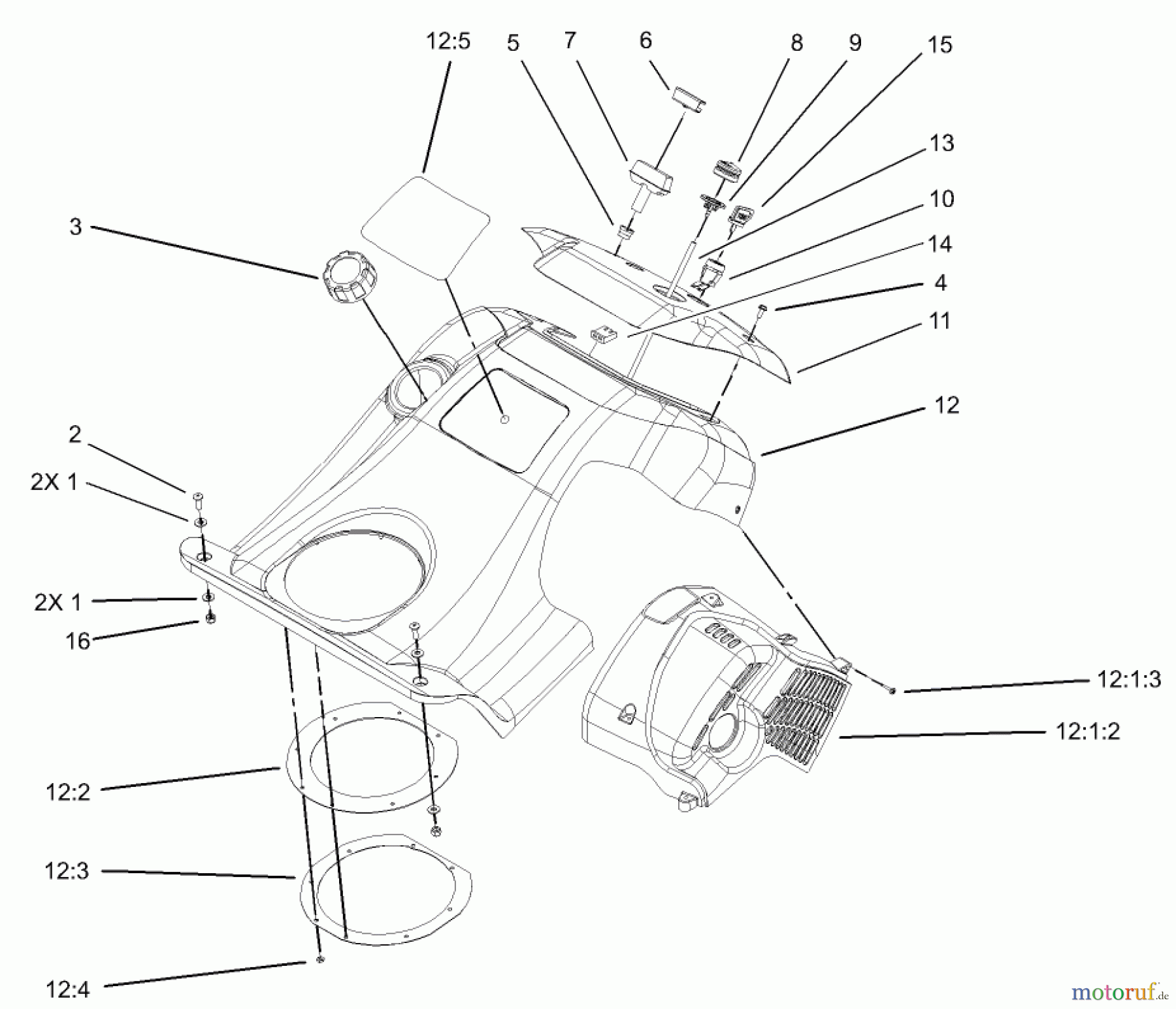

UPPER SHROUD AND CONTROL PANEL ASSEMBLY 38601 - Toro Snow Commander Snowthrower, 2005 (250000001-250999999)

Toro Neu Snow Blowers/Snow Throwers Seite 1 38601 - Toro Snow Commander Snowthrower, 2005 (250000001-250999999) UPPER SHROUD AND CONTROL PANEL ASSEMBLY
PosArticle NumberDescription
1 TR3256-22Scheibe
2 TR3250-32Schraube
3 TR104-4133GAS CAP ASM
4 TR32144-112Schraube
5 TR55-9410Seilfuehrung
6 TR612824CLIP-STARTER
7 TR612825Startergriff
8 Toro PrimerknopfTR66-7460Primerknopf
9 Toro Primer-KoerperTR44-2750Primer-Koerper
10 TR40-5940Zuendschloss
11 TR104-8662PANELE
12 TR106-4735108-5099
12:1:2 TR104-0860SHIELD-HEAT
12:1:3 TR94-4496SCREW-PPH
12:2 TR105-3543SEAL-CHUTE
12:3 TR55-9540-03Halter
12:4 TR3290-474Hutmutter
12:5 TR106-4717Klebeschild
13 TR95-1861Priemerschlauch
15 Toro SchluesselTR63-8360Schluessel
16 Toro MutterTR3296-42Mutter
