Toro 53009 - Gas Trimmer, Straight Shaft, 2000 (200000001-200999999) GEARCASE ASSEMBLY Spareparts

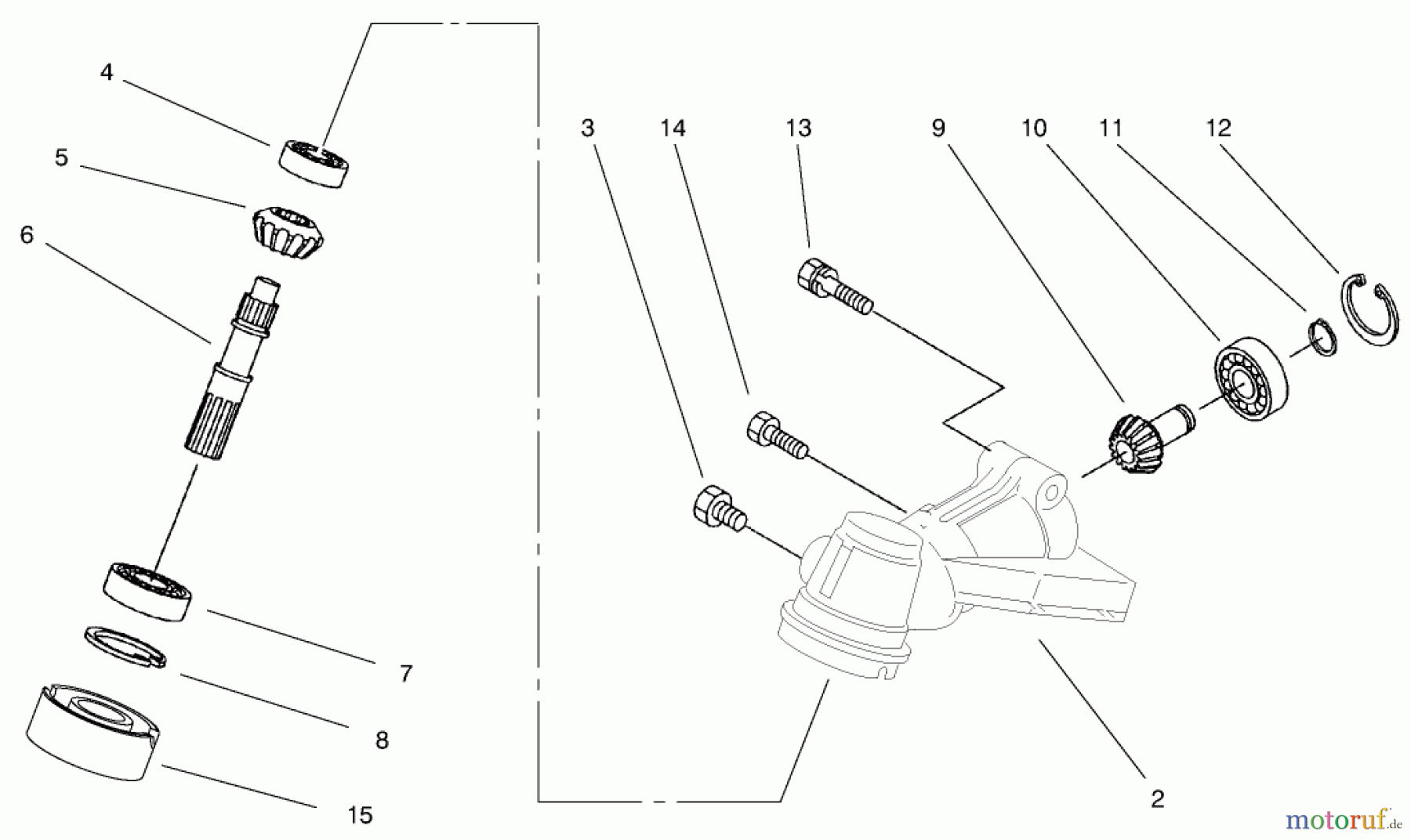

GEARCASE ASSEMBLY 53009 - Toro Gas Trimmer, Straight Shaft, 2000 (200000001-200999999)

Toro Neu Trimmers, String/Brush 53009 - Toro Gas Trimmer, Straight Shaft, 2000 (200000001-200999999) GEARCASE ASSEMBLY
PosArticle NumberDescription
2 TRM222888GEAR CASE HOUSING
3 TRM089884BOLT
4 TRM219205BEARING
5 TRM222121M222887
6 TRM219430LOWER SHAFT
7 TRM212999BEARING
8 TRM055185RING - SNAP
9 TRM222122BEVEL GEAR AND SHAFT
10 TRM140268BEARING
11 TRM140269RING - SNAP
12 TRM140270DISCONTINUED
13 TRM092561BOLT
14 TRM089737DISCONTINUED
15 TRM222890SPACER-HEAD
TRM222887GEAR CASE ASSY-COMPLETE
