MTD 155-92 LE 13HM71KE676 (2014) Engine hood K-Style from 20.12.2013 Spareparts

• Start
• MTD
• Lawn tractors
• 155-92 LE
• 13HM71KE676 (2014)
• Engine hood K-Style from 20.12.2013

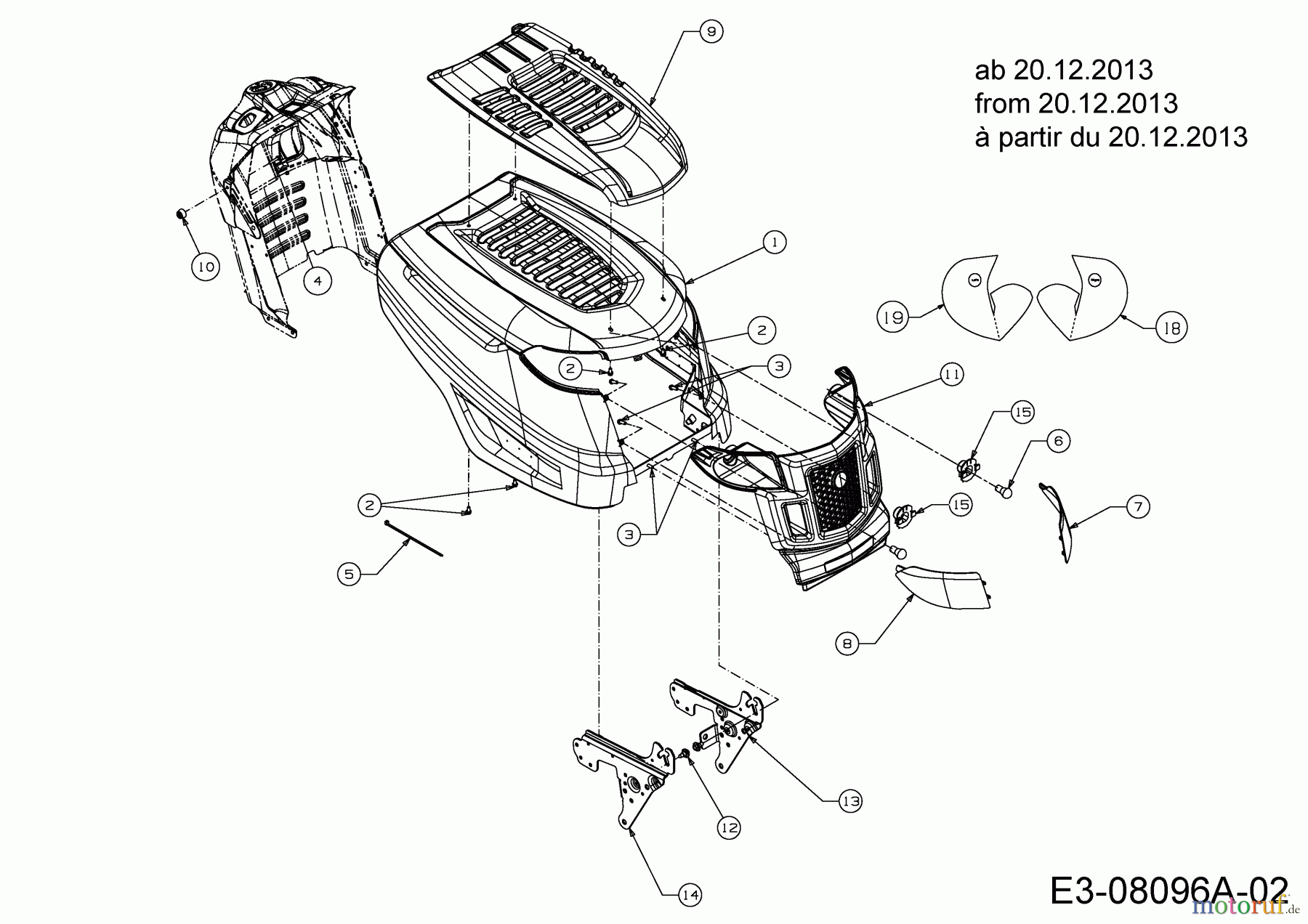

Engine hood K-Style from 20.12.2013 13HM71KE676 (2014)

Pos		Article Number	Description
1		683-04774	HOOD ASM:K STYLE:SCP
2		710-04187	SCH:HL:1/4-15:0.50:HXINDWSH
3		710-05108	SCR:BOS:1/4 DIA:.750:HXINDWSH
4		710-05281	SCR:HI-LO:#12 x 1.15 LG
5		725-0157	CBL:TIE: 3/16 X .05 X 7.4
6		725-0963	LAMP:#1156
7		731-06095	LENS:LH TROY-BILT
8		731-06096	LENS:RH TROY-BILT
9		731-06194B	SCP:HOOD:K-STY
10		731-06404	BMPR:DASH K-STYLE
11		731-06796	GRILL:K-STYLE
12		738-04091A	SCR:SHLDR:.43 x.29:TT:5/16-18
13		783-05417	BRKT:SUPT:PIVOT LH
14		783-05418	BRKT:SUPT:PIVOT RH
15		725-1649	SOC:LAM: 1/4 TURN
18		777X43038	HEADLIGHT REFLECTORS LH:K STY
19		777X43039	HEADLIGHT REFLECTORS RH:K-STY
