Cub Cadet CC 714 TC 13H276DC603 (2016) Gearbox Spareparts

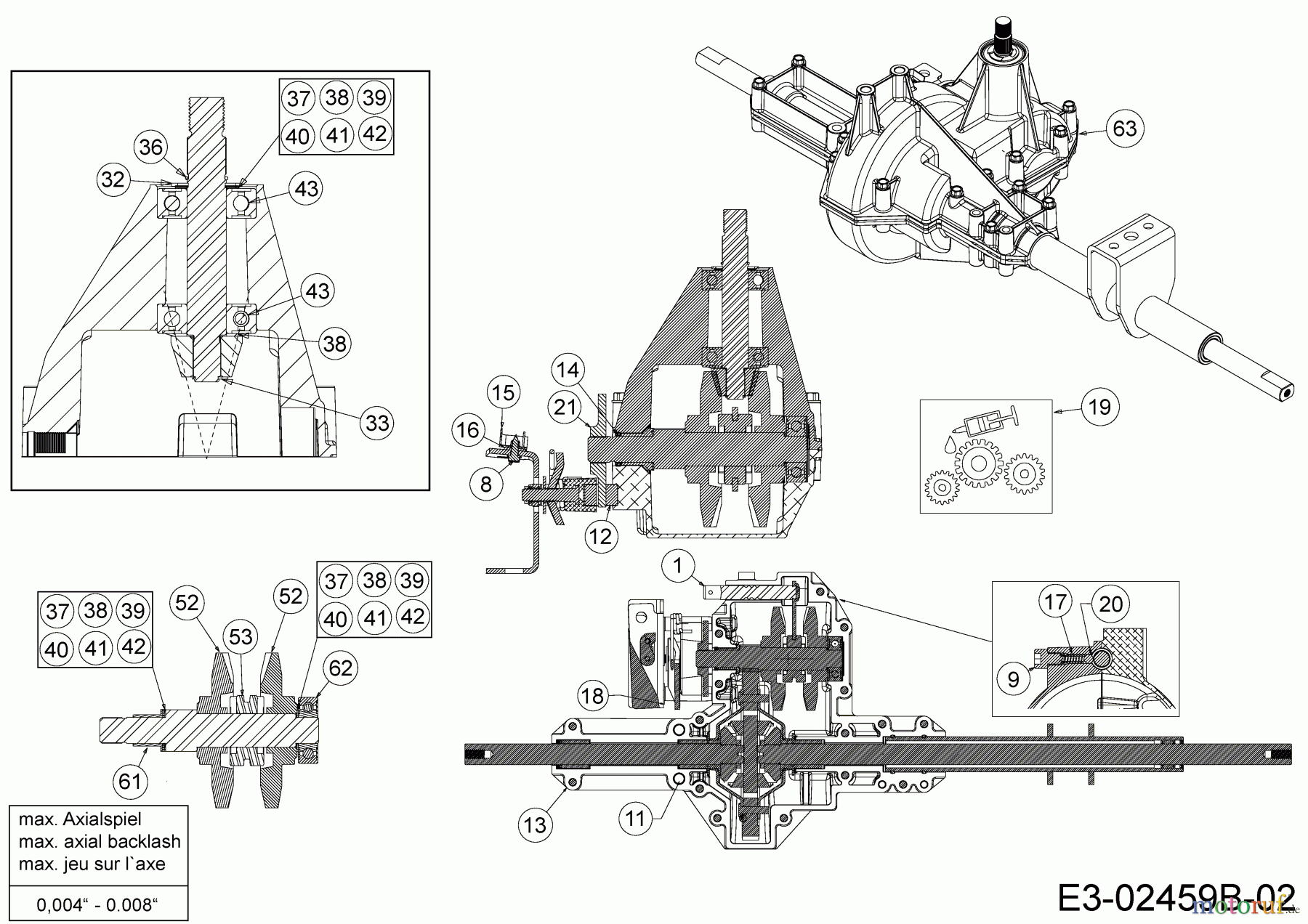

Gearbox 13H276DC603 (2016)

Cub Cadet Lawn tractors CC 714 TC 13H276DC603 (2016) Gearbox

Cub Cadet CC 714 TC 13H276DC603 (2016) Gearbox Spareparts

SHF ASM:YOKE:EURO

SHF ASM:YOKE:EURO
Number: 611-04096
Search for: 611-04096
Manufacturer: MTD
Cub Cadet Gearbox
44.42 €
for EU Including VAT, plus shipping
PosArticle NumberDescription
1 Cub Cadet SHF ASM:YOKE:EURO611-04096SHF ASM:YOKE:EURO
8 Cub Cadet SCR:AB:#8-18:0.500:HXINDWH710-0227SCR:AB:#8-18:0.500:HXINDWH
9 710-04731SCREW TT 5/16-18 .375lg
11 Cub Cadet SCREW:TT:1/4-20:1.625:HXINDWSH710-1325SCREW:TT:1/4-20:1.625:HXINDWSH
12 717-0678BRAKE CORK
13 719-04358HSG:LWR
14 Cub Cadet SEAL:.625 .812X.094721-0213SEAL:.625 .812X.094
15 Cub Cadet SWITCH:SPRING:SHORT725-1644SWITCH:SPRING:SHORT
16 726-0320INSULATING PLATE
17 Cub Cadet SPR:COMP:.205 OD x.61 LG732-04485ASPR:COMP:.205 OD x.61 LG
18 736-0342WASHER:FLAT:.283 x.750 x .030
19 Cub Cadet GEAR BOX GREASE (400G CAN)6021-U1-1073GEAR BOX GREASE (400G CAN)
20 Cub Cadet BALL:DETNT:7/32741-1134BALL:DETNT:7/32
21 Cub Cadet BRAKE DISC761-0202BRAKE DISC
32 Cub Cadet RING:E-TYPE:.750716-0231RING:E-TYPE:.750
33 716-0385RING-RETAINING .394" EXT
36 Cub Cadet Circlip732-0614Circlip
37 736-0336WASH:SHIM:.625x1.000x.030:HD
38 Cub Cadet WASH:SHIM:.634x1.000x.040:HD736-0337WASH:SHIM:.634x1.000x.040:HD
39 Cub Cadet WASHER:SHIM:.630x1.000x.020:HD736-0349WASHER:SHIM:.630x1.000x.020:HD
40 Cub Cadet WASH:SHIM:1.00 x.632 x .010736-04337WASH:SHIM:1.00 x.632 x .010
41 Cub Cadet WASHER:FL:.632X1.000X.035:HD736-0494WASHER:FL:.632X1.000X.035:HD
42 Cub Cadet WASHER:SHIM:.632x1.000x.025:HD736-0495WASHER:SHIM:.632x1.000x.025:HD
43 Cub Cadet BRG:BALL:.625x40x12:6203:DS741-0524ABRG:BALL:.625x40x12:6203:DS
52 Cub Cadet GEAR:BEVEL:55T717-04537GEAR:BEVEL:55T
53 Cub Cadet COLR:CLU718-04045COLR:CLU
61 Cub Cadet BRG:FLG:.625 X .75 X .75741-04458BRG:FLG:.625 X .75 X .75
62 Cub Cadet BRG:BALL:.625x40x12:6203:DS741-0524ABRG:BALL:.625x40x12:6203:DS
63 092.60.138SERVICE KIT FOR LT-5 TRANSMI.
