Wolf-Garten TC 32 MAC 3617000 Series A (2004) Harness Spareparts

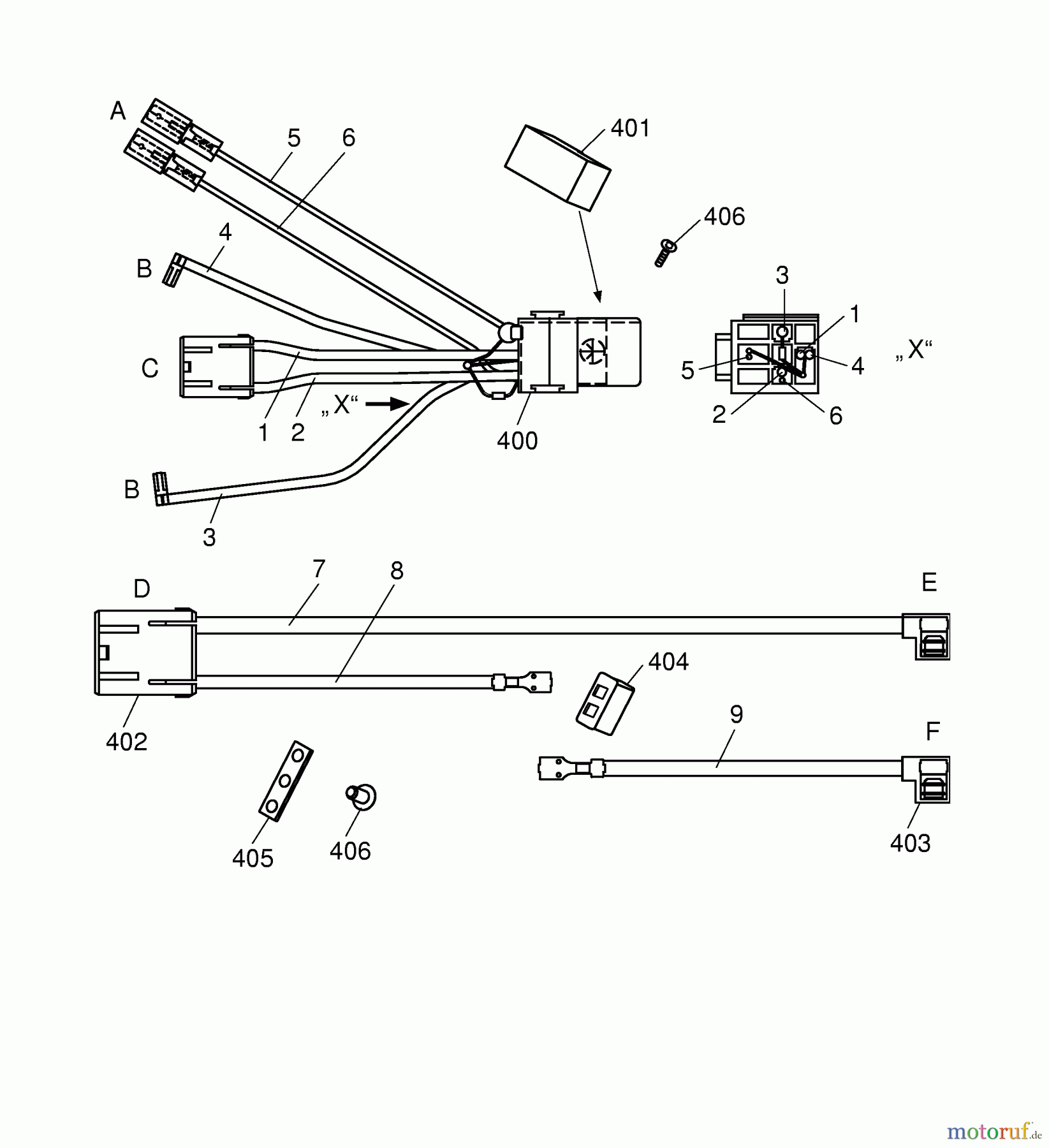

Harness 3617000 Series A (2004)
Pos | Article Number | Description | |
400 | 3617054 | WIRE HARNESS | |
401 | 4933114 | RELAY | |
402 | 3617061 | ACCU CONNECTOR CABLE WITH PLUG | |
403 | 3617135 | Cable Red | |
404 | 3617109 | SWITCH (1160-02-15) | |
405 | 3617505 | CLIP TC32MAC | |
406 | 0012629 | EJOT-SCREW K50x12-WN1452-TORX2 | |
*** | 4911067 | CHARGER |
