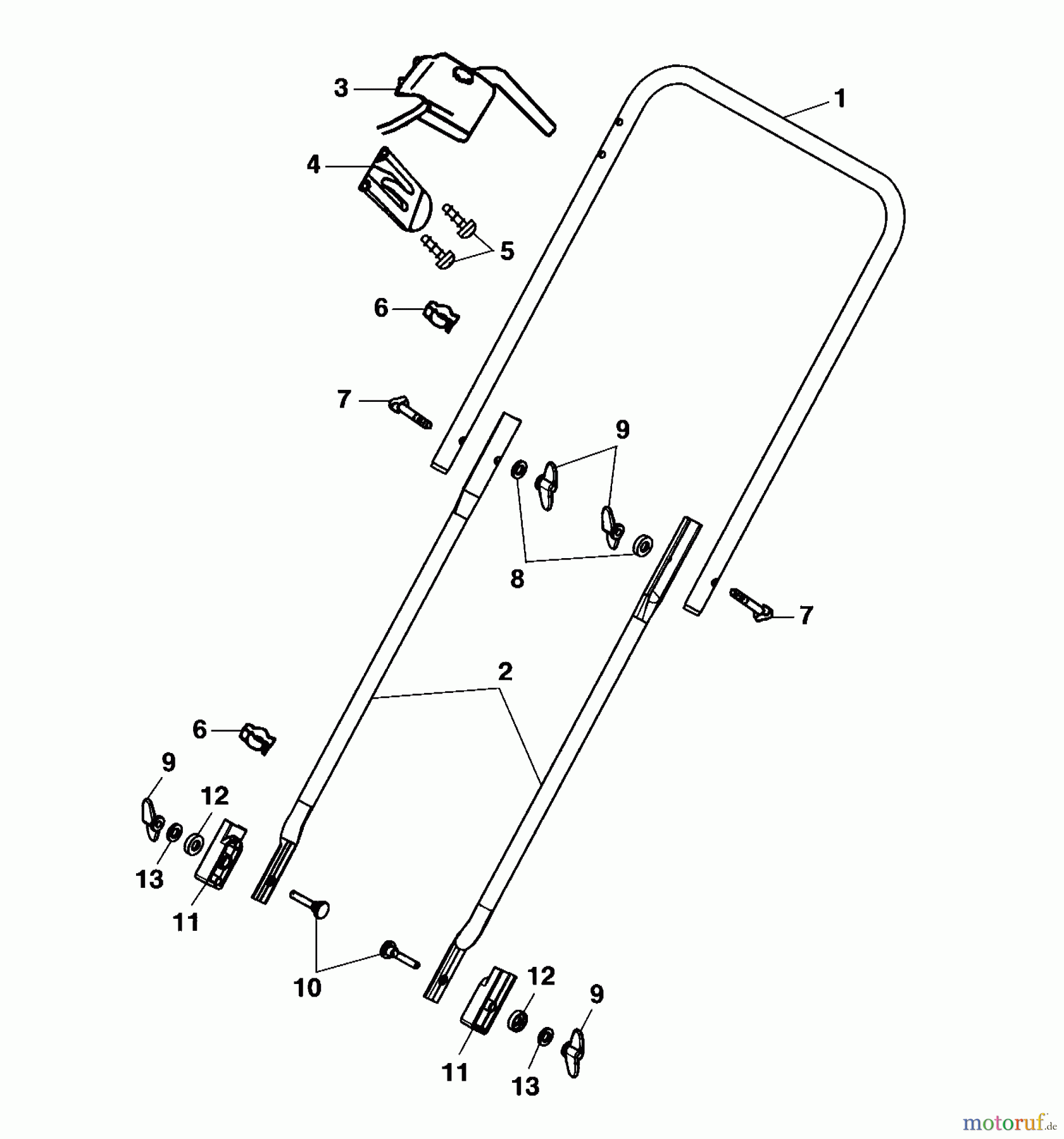

Wolf-Garten UL 33 E 3620003 Series A (2002) Handle Spareparts
Start
Wolf-Garten
Groomer
UL 33 E
3620003 Series A (2002)
Handle
Handle 3620003 Series A (2002)
Pos
Article Number
Description
1
3620025
UPPER HANDLEBAR
2
3620120
Lower Handle Part
3
3620051
CCOLO
***
3620053
SCHALTER-CCS59/CH KPL.
4
3630325
ZUGENTLASTUNG GELB,PICCOLO
***
4901325
CABLE GUIDE
5
0012883
SCREW, PT KA 40 X 22
6
4950307
CABLE CLIP
7
4901101
SCREW
8
0017275
WASHER, RECESSED
9
0016717
WING NUT
10
3620110
SECURING SCREW
11
3620311
INSULATOR WIRE OUTPUT
12
3620313
GROMMET,ISOLATOR
13
0017112
WASHER
