> Roth / TORO > Ride-On Mowers > Traktor > 270 H > 506/72115 > 9900001 > Dash Assy.

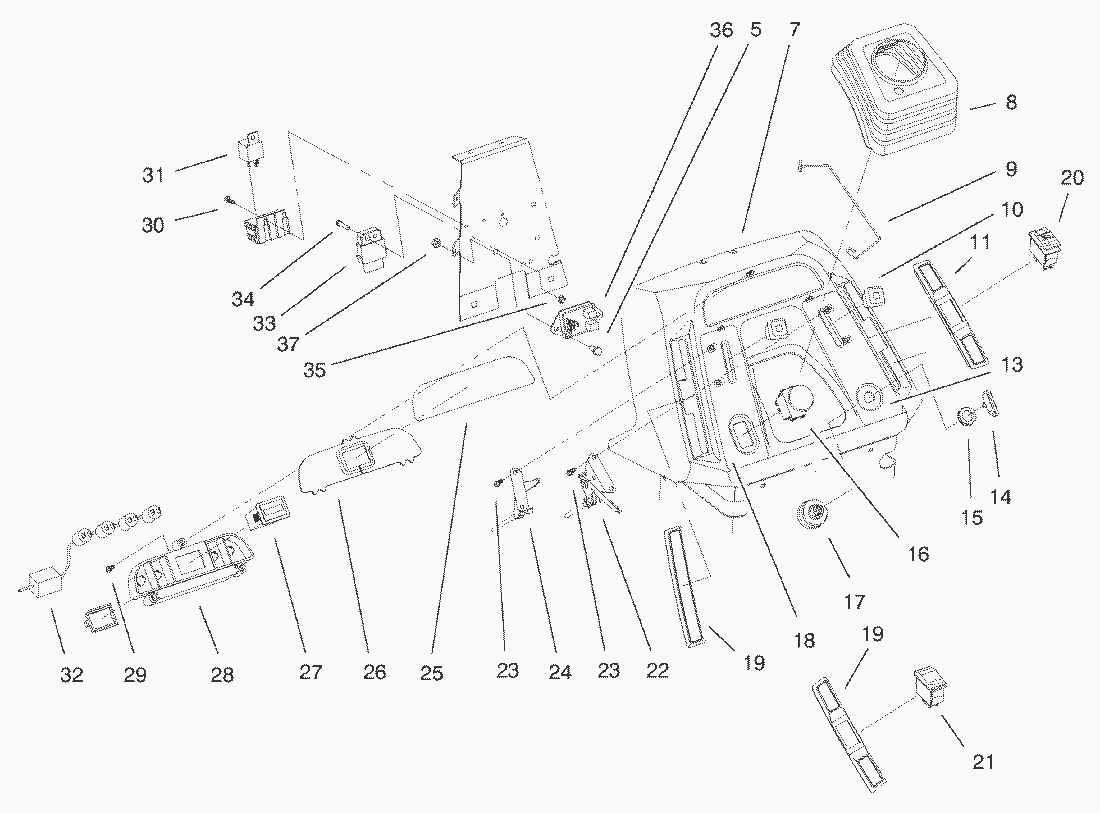

Spare Parts Lists for Toro Roth / TORO Dash Assy.




spare parts list


pos.decriptionspare part number
5Capscrew321-4
7Dash-Hydro94-1894
8Boot-Steering92-6680
9Clip-Boot94-2966
10Knob-Control66-0120
11Cover-Cruise (Only On: 72085)93-0516
11Cover-Cruise (Only On: 72103)93-0533
13Decal-Dash (Only On: 72064)93-7255
13Decal-Throttle/Ignition (Only On: 72042, 72043, 72083)92-6721
14Key-Switch62-7770
15Nut700919
16Switch-PTO93-9998
17Switch INC 12 & 3092-6785
18Decal-Dash (Only On: 72064)93-7256
18Decal-Choke/PTO (Only On: 72042, 72043, 72083)92-6720
19Cover-Lift94-3513
19Cover-Lift (Only On: 72106)94-1710
20Switch-Cruise (Only On: 72103)93-0527
21Switch-Lift94-1742
22Control-Throttle (Only On: 72103, 72083)92-6784
23Screw-Plastite32144-32
24Control-Choke (Only On: 72103, 72083)92-6783
25Decal-Dash Lens99-8035
26Lens-Dash92-6705
27Hourmeter94-4208
28Housing-Light94-1714
29Screw-Pan Hd.94-6961
30Screw-Hex Washer Hd.32144-8
31Relay (Only On: 73470)98-7249
32Harness-6 Lamp99-8072
33Module-Low Voltage (Only On: 72048)99-1933
34Screw-Cap Hex. Hd.32105-12
35Nut3296-2
36Module-Nmir, Clutch99-3701
37MUTTER3296-42
