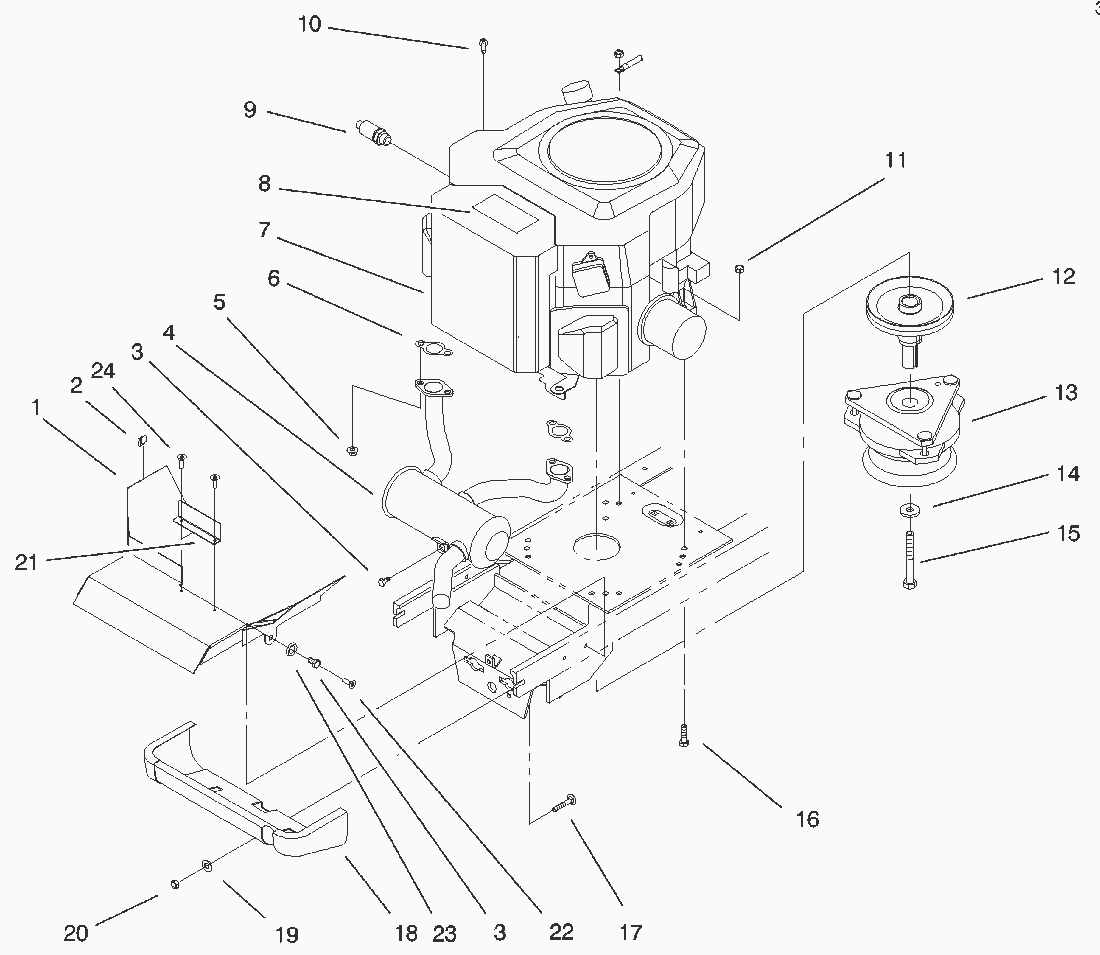

Spare Parts Lists for Toro Roth / TORO Twin Cyl. Engine, Muffler, & PTO Assy.

pos.	decription	spare part number
1	Muffler Baffle ASM	94-6950-03
2	Clip-Wire Retainer	702366
3	Screw-Wash. Hd., Tap.	32144-14
4	Muffler	98-9003
5	Nut-HHF (Only On: 72103,72083)	92-6780
6	Gasket-Exhaust (Only On: 72103, 72083)	93-0350
7
8	Decal-Toro Power Plus 20	94-2870
9	Valve-Oil Drain (Only On: 72103, 72083)	92-6877
10	Screw-PPH (Only On: 72103, 72083)	32144-118
11	MUTTER	3296-29
12	Pulley (Only On: 72083, 72103)	92-6888
13	Clutch-Electric PTO (Only On: 72046)	94-2514
13	Clutch-PTO (Only On: 72103, 72083)	92-6885
14	Washer	112843
15	Screw-Hex. Hd.	9114466
16	Capscrew	322-9
17	Carriage Bolt	3231-25
18	Shield-Muffler (Only On: 72103)	92-6867-01
19	Flat Washer	3256-24
20	Locknut	3296-39
21	Guard-Throttle (Only On: 72105)	99-6764-03
22	Screw-5/16 Countersunk Torx (Only On: 72105)	100-1325
23		100-1326
24		100-1320
