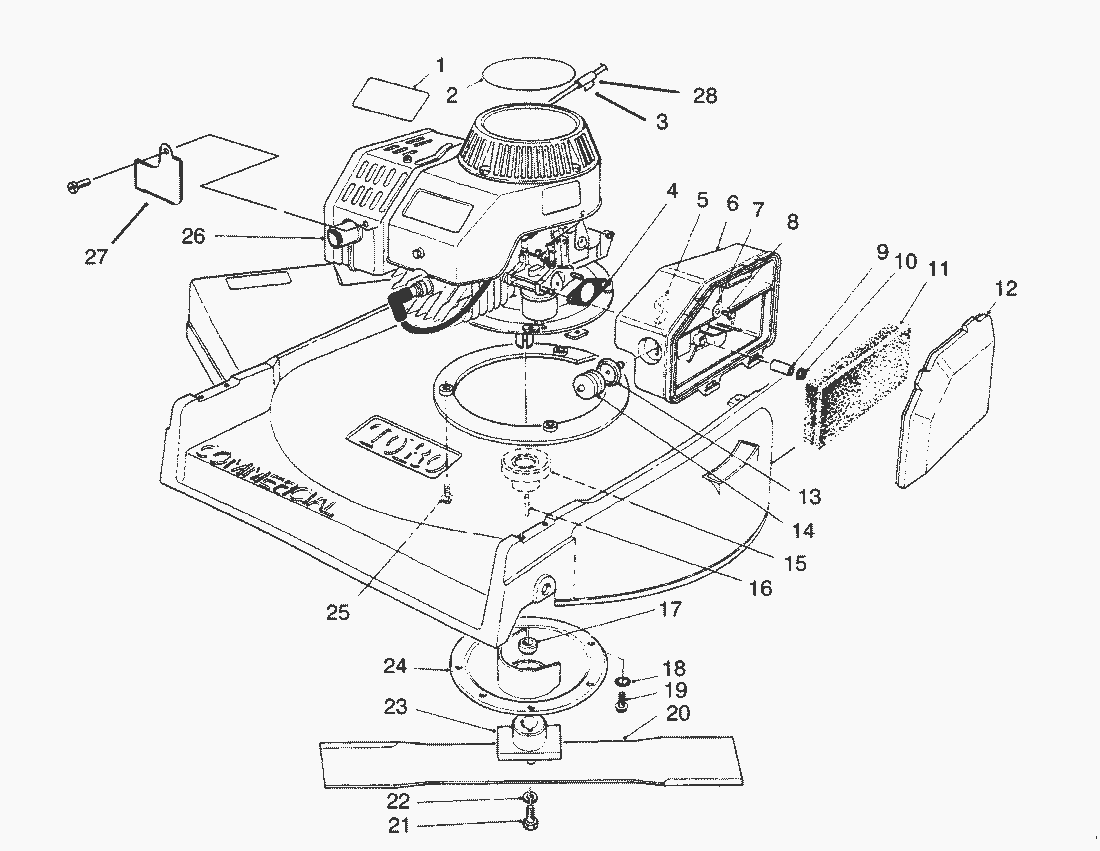

Spare Parts Lists for Toro Roth / TORO Engine Assy.

pos.	decription	spare part number
1	Decal-Pro Line	71-1260
2	Decal-Recoil	77-0040
3
4	DICHTUNG	81-0090
5	Hose-Primer	44-3172
6	Body-Air Cleaner	63-9330
7	SCHEIBE	3256-16
8	SCHRAUBE	51-2690
9	Spacer	62-3980
10	Nut-Lock	50-7180
11	Element-Air Cleaner	63-9380
12	Cover-Air Cleaner	63-9340
13	Body-Primer	44-2750
14	Bulb-Primer	66-7460
15	Pulley-Driver	46-7910
16	Key-Square	27-6300
17	Spacer-Retainer, Blade	52-2194
18	Washer-Internal Tooth Locking	3254-6
19	Self Tapping Screw	32144-70
20	Blade	26-5790
21	Screw-Blade	26-0670
22	Washer-Lock	3253-22
23	Retainer-Blade	66-7190
24	Protector-Crankshaft	65-5860
25	Screw-Hex. Flange Hd.	66-9300
26	Engine-Complete	61-8062
27	Guard-Muffler Extension	93-7661
28	SEILSTOPPER	81-3980
