back to
>
Roth / TORO
>
Hand operated
>
Lawnmower
>
2-stroke SP
>
255/22700 BC
>
5900001
>

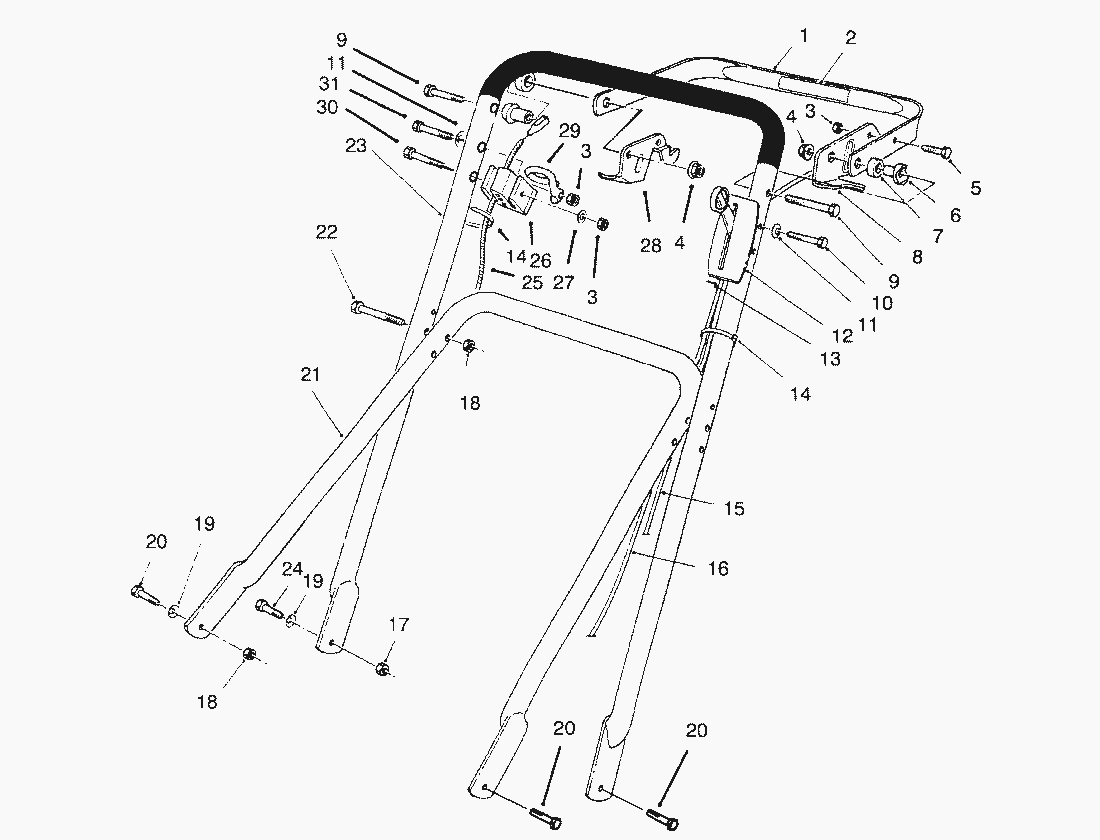

Handle Assy.
Spare Parts Lists for Toro Roth / TORO Handle Assy.
pos.
decription
spare part number
1
Bar-Control
61-8270
2
Decal-Control, Traction
93-6663
3
MUTTER
3296-42
4
Nut-Flange Lock
3296-58
5
Capscrew
321-4
6
Support-Spacer
49-1630
7
Spacer-Nylon
256-276
8
Lever-Control
66-5350
9
Capscrew
322-10
10
Screw-Hex. Hd.
321-13
11
Washer
3-7501
12
Assy.-Bracket, Throttle
82-9952
13
E-Ring
32151-86
14
Tie Wrap
3290-378
15
Cable-Traction
74-1791
16
Cable-Throttle
70-1061
17
Nut-Lock
3296-47
18
MUTTER
3296-29
19
Washer-Belleville
3290-456
20
Capscrew
322-6
21
Handle-Lower
66-6150
22
Screw-Cap Hex. Hd.
322-12
23
Handle-Upper
92-1586
24
Capscrew
322-7
25
Cable-Brake
85-6904
26
Support-Cable
46-6980
27
Washer
3256-22
28
Lever-Control
77-5270
29
Guide-Rope
46-8081
30
Capscrew
321-15
31
Hex. Hd. Capscrew
321-9
