Spare Parts Lists for Toro Roth / TORO Engine Controls (Kohler Engine CV14S-PS1472)

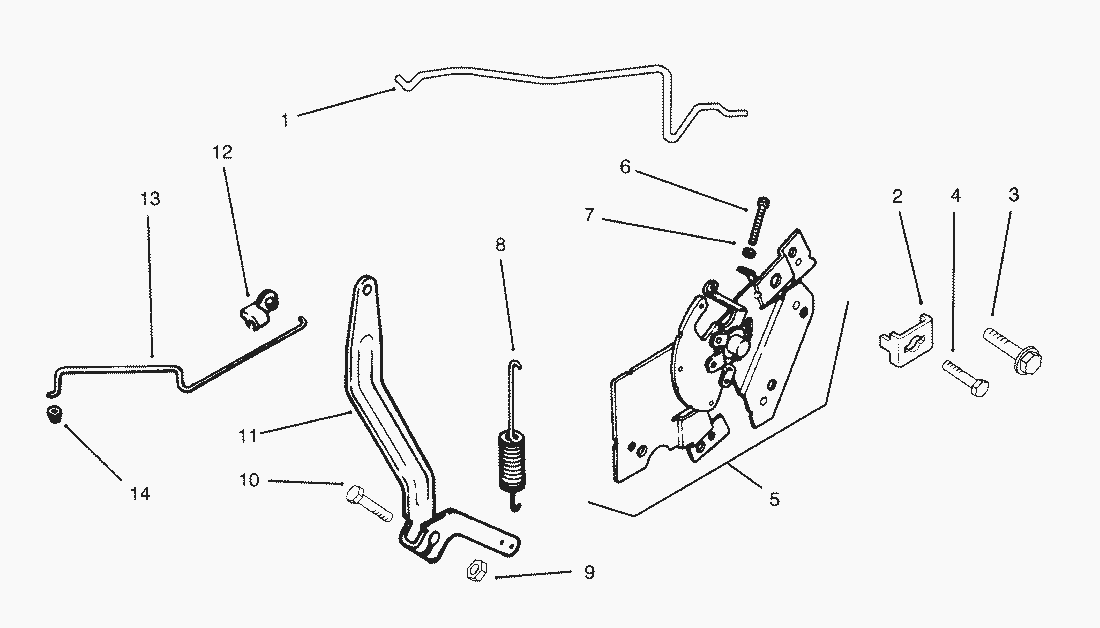

spare parts list


pos.decriptionspare part number
1Linkage-Choke (Only On: 72042,72043,72062,72063)12_079_07
2Clamp-Cable (Only On: 72103)12_237_01
3Screw-HH (Only On: 72042, 72063, 72362, 72043)M-0645016
4Screw M5x0.8x16 (Only On: 72042, 72063, 72062, 72043)M-0545016
5Control-ASM INCL 6-7 (Only On: 72042,72043,72062,72063)12_536_02
6Screw-HHF M4x0.7x28 (Only On: 72042, 72063, 72062, 72043)M-0401030
7Nut-Hex M4x0.7 (Only On: 72103, 72083)M-0446030
8Spring-Governor (Only On: 72042,72043,72062,72063)52_089_07
9Nut M6x1.0 (Only On: 72103, 72083)SM-0641060
10Screw M6x1.0x25 (Only On: 72103, 72083)SM-0642025
11Lever-Governor (Only On: 72042,72043,72062,72063)12_090_05
12Bushing-Linkage (Only On: 72103)25_158_11
13Linkage-Throttle (Only On: 72042,72043,72062,72063)12_079_01
14Bushing-Linkage (Only On: 72103)25_158_08
