> Roth / TORO > Ride-On Mowers > Traktor > 268 H > 503/72103 > 5900001 > Seat

Spare Parts Lists for Toro Roth / TORO Seat

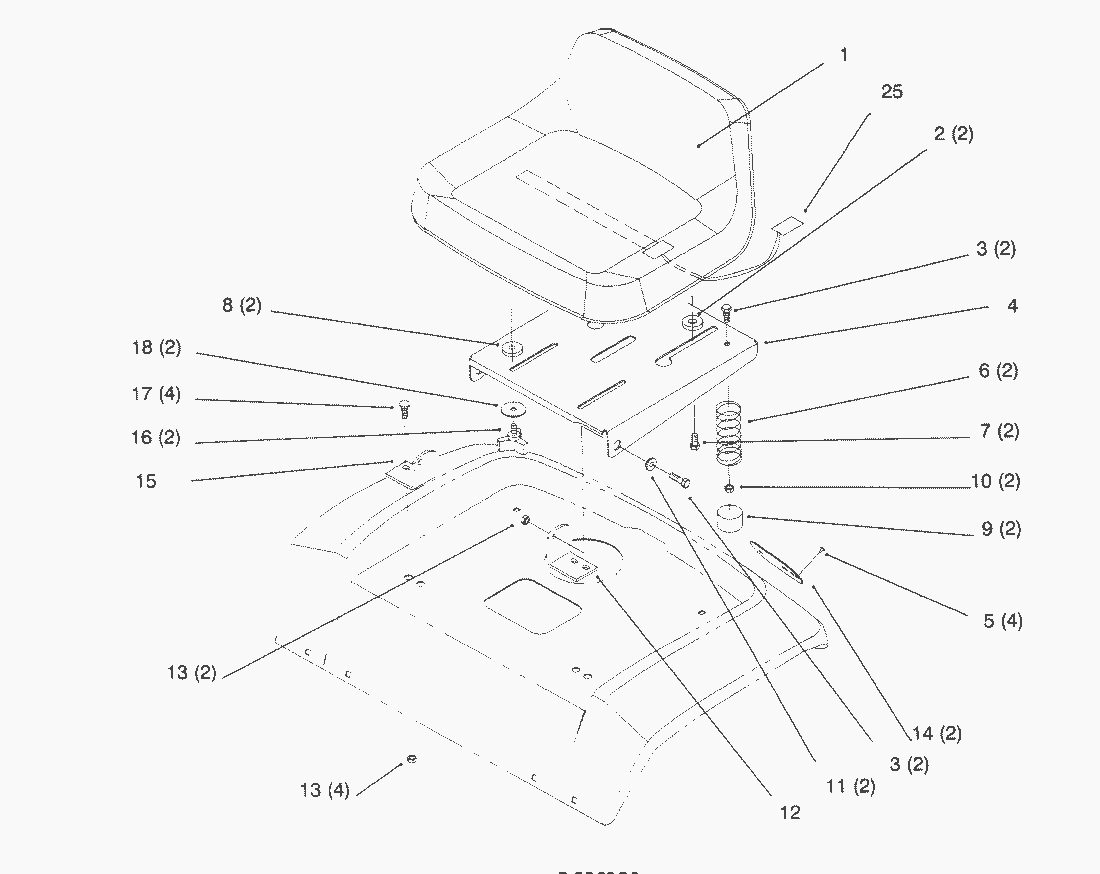

spare parts list


pos.decriptionspare part number
1Seat (Model No. 71200 Only)88-3950
1Seat (Only On: 72062, 72063, 72083, 72103)92-6511
2Spacer-Nylon92-6750
3Hex Hd. Capscrew322-5
4Support-Seat92-6972-03
5Rivet-Pop3290-282
6Spring-Compression92-7054
7Bolt-Shoulder92-6986
8Spacer-Nylon109989
9Cap-Protector701178
10Nut-Flange Lock3296-58
11Bushing105503
12Bracket-Pivot LH79-0970-03
13MUTTER3296-29
14Reflecter106557
15Bracket-Pivot RH79-0950-03
16Knob-Studded700806
17Carriage Bolt3230-2
18Washer5-4460
25Switch-Seat38-1420
