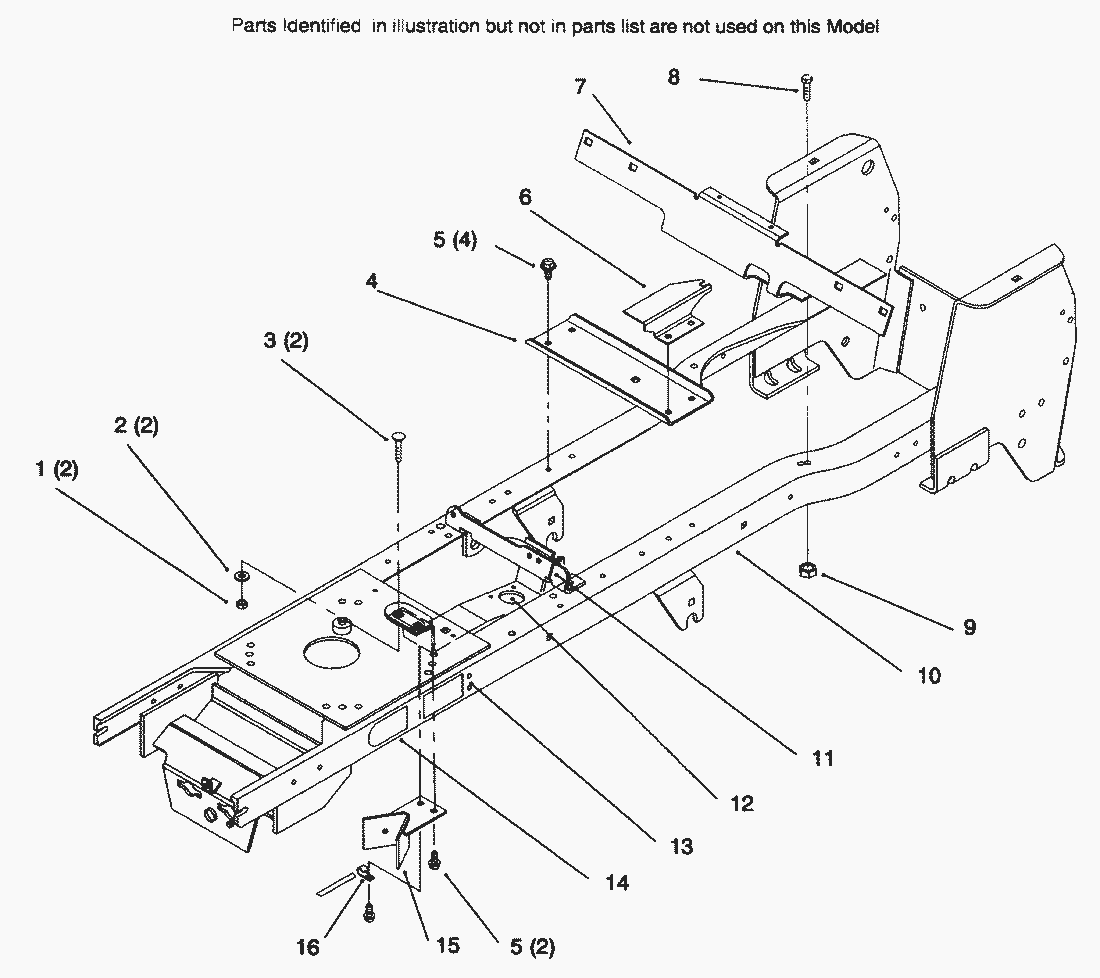

Spare Parts Lists for Toro Roth / TORO Frame

pos.	decription	spare part number
1	MUTTER	3296-29
2	Washer	3256-23
3	Carriage Bolt	3230-2
4	Bracket-ldler	92-6868-03
5	Screw-HH	32141-14
6	Bracket-HOC	92-6964-03
7	Support-Fender	92-6674-03
8	Hex Hd. Capscrew	322-5
9	MUTTER	3296-29
10	Frame Wa	94-2668
11	Tie Strap	614249
12	Bracket-Steering	92-6992-03
13	Decal-Installation (Only On: 72064)	93-7324
14	Decal-Attach-A-Matic	92-8747
15	Stop-PTO	78-2491-03
16	Clip	8830
