> Roth / TORO > Ride-On Mowers > Traktor > 12-32 XL > 390/71201 > 7900001 > Fuel Tank & Engine Pulley Assy.

Spare Parts Lists for Toro Roth / TORO Fuel Tank & Engine Pulley Assy.




pos.decriptionspare part number
Pulley-Engine88-5050

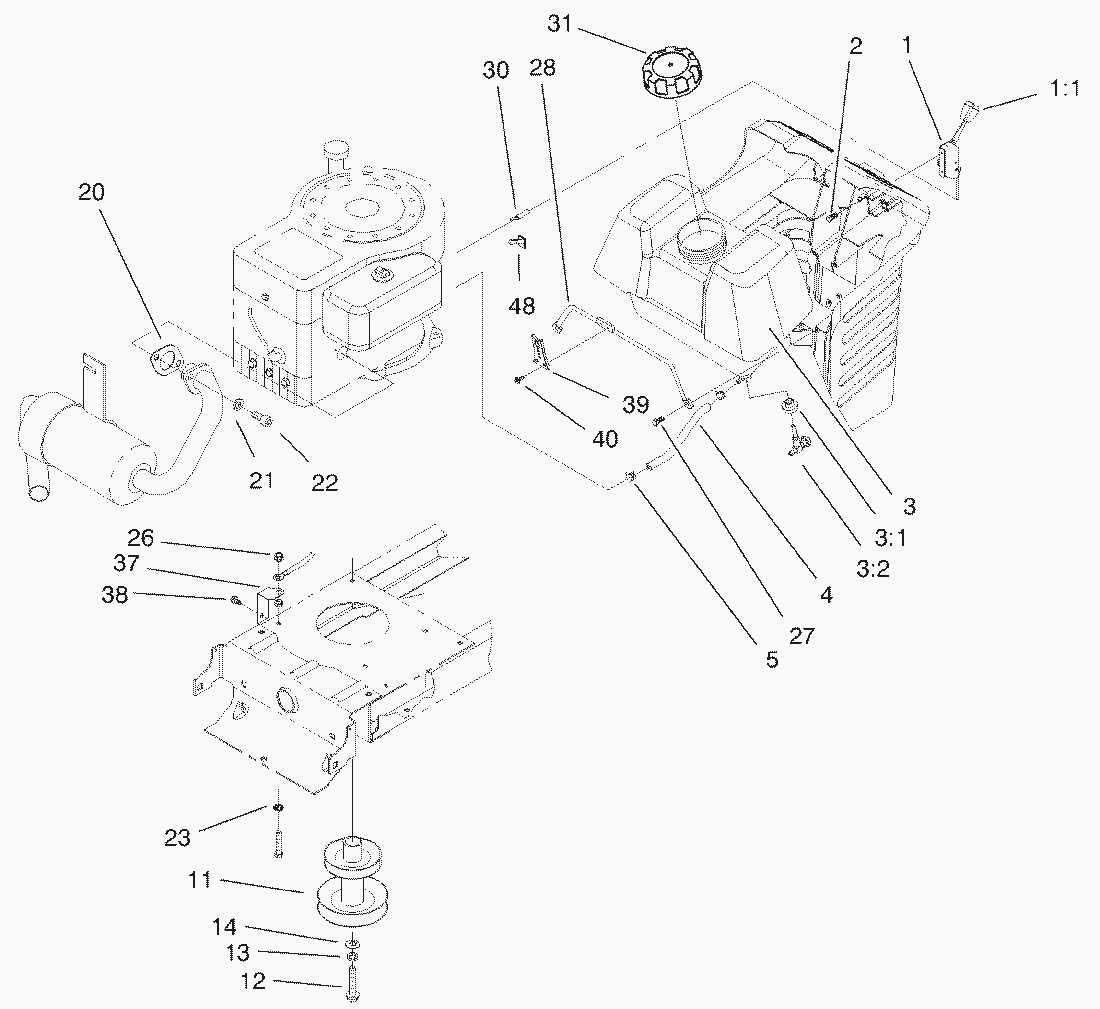

spare parts list


pos.decriptionspare part number
1Control-Throttle88-4340
11Knob-Control66-0120
2Screw Special27-0220
3Tank-Gas88-3880
31Bushing104047
32Valve104048
4Line-Fuel47-2963
5Clamp-Hose2412-98
12Screw-Blade26-0671
13Washer-Lock3253-22
14Washer-Flat3256-25
20Gasket-Muffler88-4410
21Lockwasher3253-4
22Capscrew-Hex. Socket Hd.3274-10
23Lockwasher3255-8
26Locknut32149-1
27Screw Special27-0220
28Rod-Gas Tank94-1952
30Cable-Throttle88-4350
31Cap-Gas88-3980
37Bracket-Ground93-3809
38Screw-HWHTF9266714
39Latch-Hood94-1951
40Screw-Self Tapping32144-112
48Reducer-Throttle88-4490
