> Roth / TORO > Ride-On Mowers > Traktor > 12-32 XL > 390/71201 > 7900001 > Hood Assy.

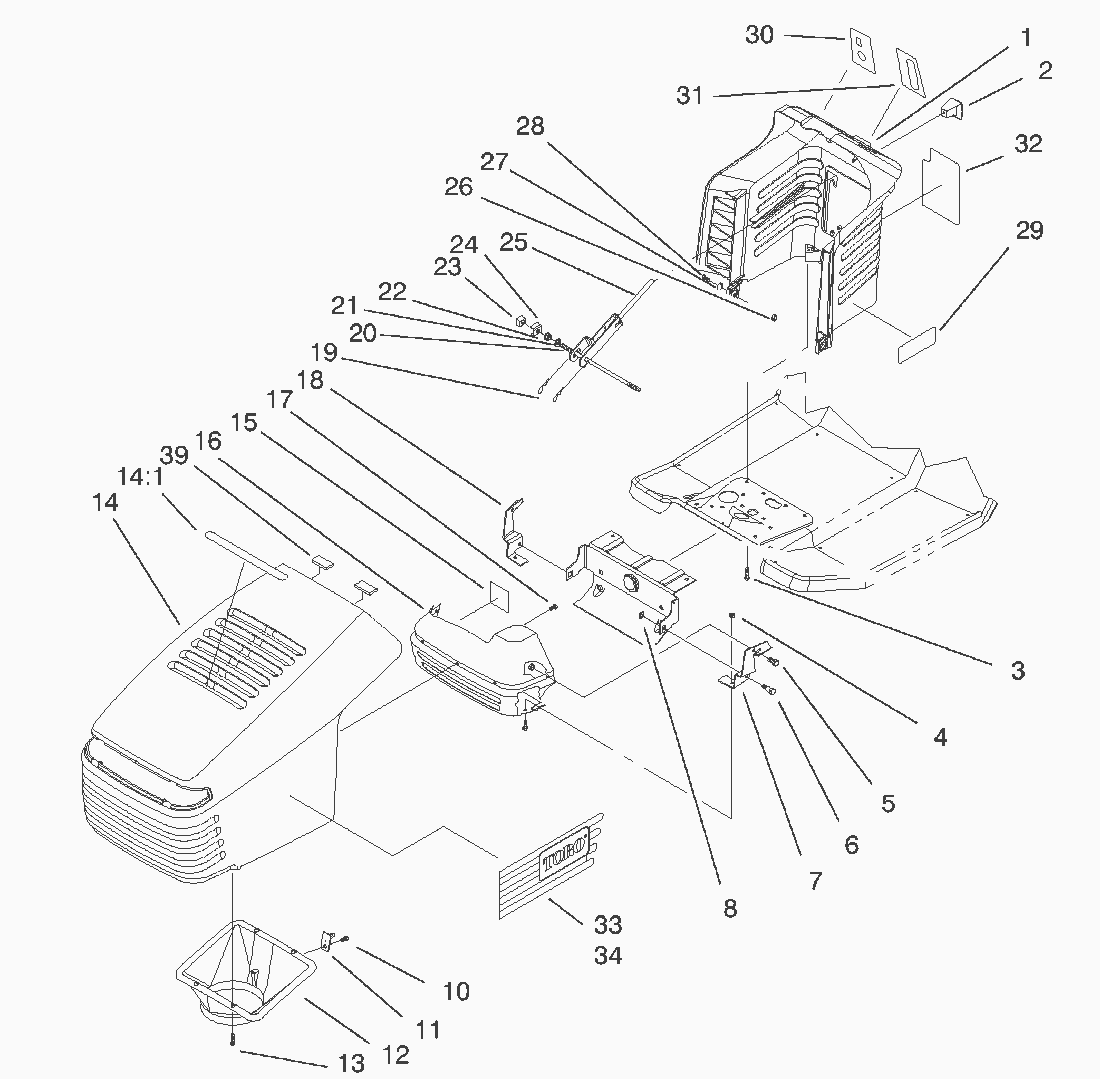

Spare Parts Lists for Toro Roth / TORO Hood Assy.




spare parts list


pos.decriptionspare part number
1Tower-Steering93-0303
2Knob-Control94-5565
3Screw-Handle46-8091
4MUTTER3296-42
5Capscrew321-2
6Bolt-Shoulder28-0540
7Bracket-Hinge88-6050-03
8Nut-Retained3290-496
10Screw-Handle46-8091
11Pin-Latch94-1984
12Duct-Hood Air88-4050
13Screw-Self Tapping46-8090
14Hood92-8650
141Decal-Air Duct92-5748
15Patch-Heat Tape92-5782
16Shield-Heat88-3930-03
17Screw-Self Tapping46-8090
18Bracket-Hinge88-6040-03
19Hair Pin Cotter3290-307
20Rod-Tower Pivot88-4170
21Flat Washer3256-24
22Nut-Flange32128-43
23Nut-Wedge88-4140
24Clamp-Pivot Rod88-4160
25Lever W.a.-Deck Engage88-5190-03
26MUTTER3296-29
27Washer3256-23
28Capscrew322-3
29Decal-Tower 1232XL (Model No. 71200 Only)92-2480
30Decal-Ignition (Model No. 71140)92-2478
30Decal-Ignition (Model No. 71200)92-5732
31Decal-Throttle (Model No. 71140)92-2461
31Decal-Throttle (Model No. 7120092-5730
32Decal-Deck Engage (Model No. 71140)92-2462
32Decal-Deck Engage(Model No. 71200)93-6673
33Decal-Hood L.H.92-2468
34Decal-Hood R.H.92-2467
39Foam-Hood94-1980
