> Roth / TORO > Ride-On Mowers > Traktor > 270 H > 506/72110 > 8900001 > Lift Lever and HOC

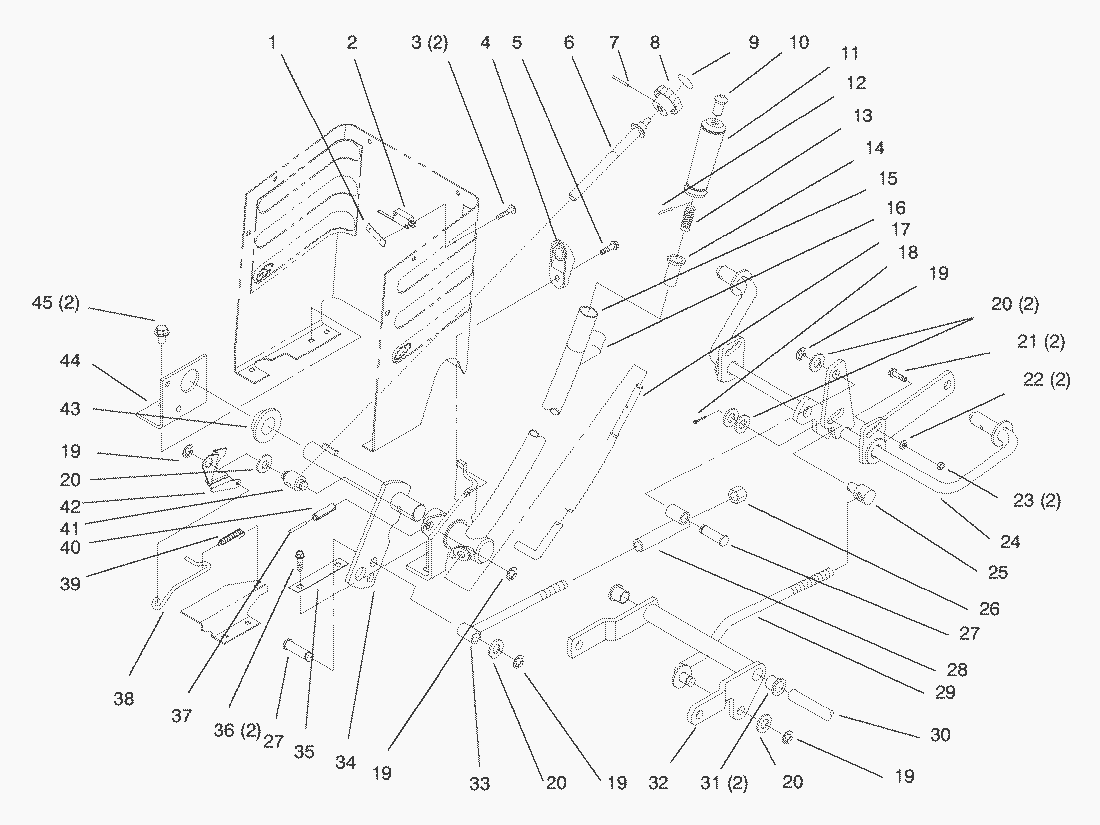

Spare Parts Lists for Toro Roth / TORO Lift Lever and HOC




spare parts list


pos.decriptionspare part number
1Speed Nut3290-354
2Switch-Micro88-9930
3Screw95-3003
4Wedge-HOC Adjust92-6794
5Screw Thread Forming32144-4
6Rod-HOC92-6965
7Pin-Roll933141
8Knob115593
9Decal-H.O.C. Knob78-9740
18Cotter Pin3272-6
19Ring-External Retaining32120-47
20Washer3256-26
21Carriage Bolt3231-25
22Flat Washer3256-24
23Locknut3296-39
24Gage Shaft79-3401-03
25Trunnion8870
26Nut-Lock3296-23
27Pin79-1250
28Link-Assembly78-7390
29Rod78-2431
30Shaft94-4944
31Bushing256-90
32Arm92-6855-03
33Rod-Assembly78-7360
34Lift Arm W.a.94-3552-03
35Plate78-6810-03
36Screw-Wash. Hd., Tap.32144-14
37Spin-Spirol32121-103
38Rod-HOC Indicator92-6978
39Spring-Extension92-7007
40Pin-Roll32121-25
41Trunnion78-2140
42Plate-HOC Gage92-6979
43Bearing-Flange106269
44Bracket-Pivot Linkage93-0523-03
45Screw-Wash. Hd., Tap.32144-14
