> Roth / TORO > Ride-On Mowers > Traktor > 270 H > 506/72110 > 8900001 > Power Lift

Spare Parts Lists for Toro Roth / TORO Power Lift

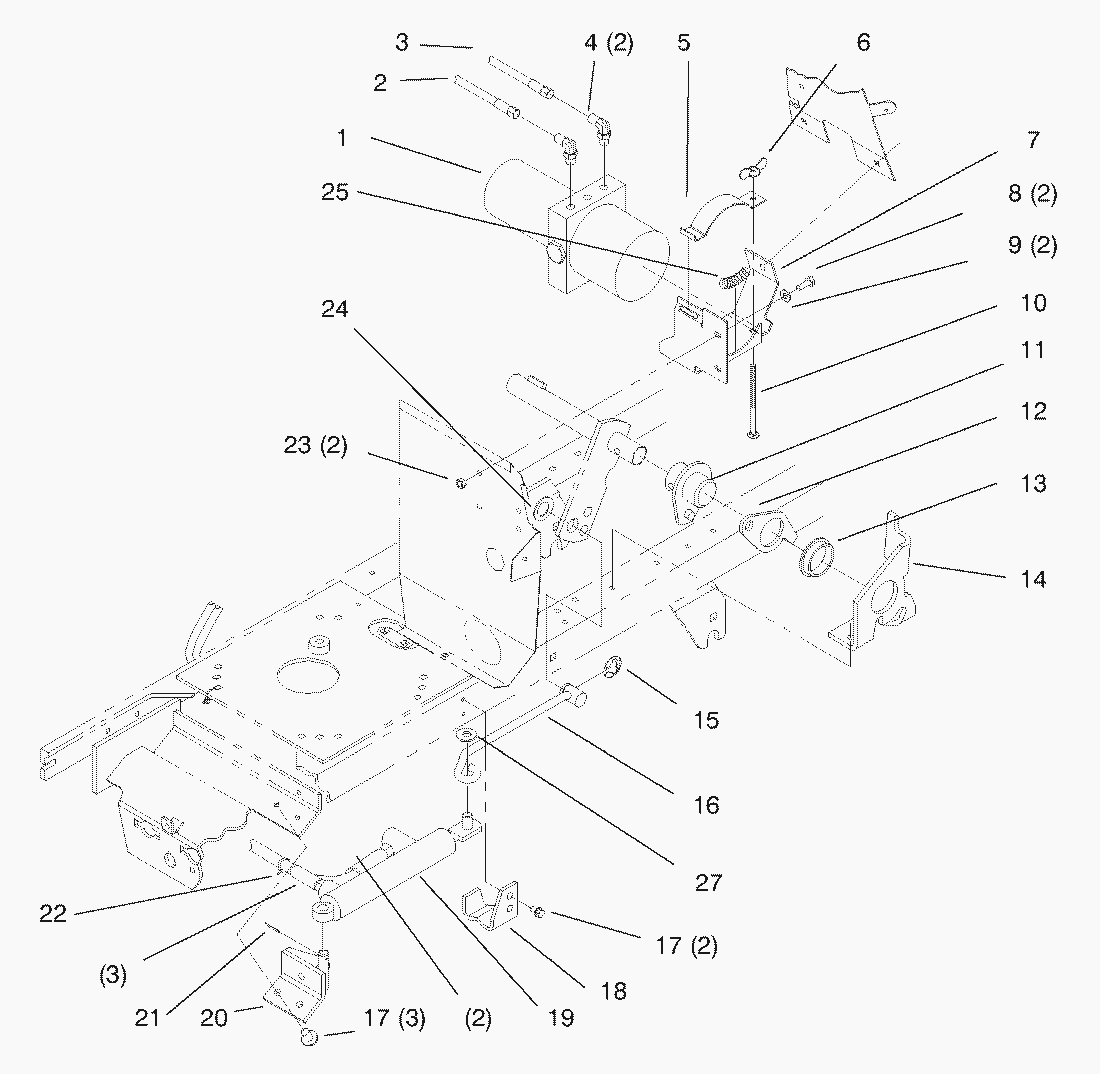

spare parts list


pos.decriptionspare part number
1Pump-Hydraulic94-1700
2Hose Assy94-3344
3Hose ASM94-1713
4Fitting-O Ring/Jic 90deg94-3561
5Clamp-Hydraulic Pump94-1748-03
6Nut-Wing32103-22
7Bracket-Mounting94-1747-03
8Capscrew321-4
9Washer3256-22
10Screw-CARR3229-33
11End Cap W.a94-3553-03
12Arm-HOC94-4927
13Bushing92-6869
14Bracket-Lift Arm94-4928
15Ring-Retaining5618
16Rod94-1708
17Screw-Wash. Hd., Tap.32144-14
18Bracket-Support94-1709-03
19Cylinder-Hydraulic Lift94-1701
20Cylinder Mtg Brkt94-1705-03
21Cotter Pin3272-6
22Tie Strap614249
23Locknut3296-8
24Washer-Shim (.050)1278
25Tubing94-1743
27Nut-Push92-7047
