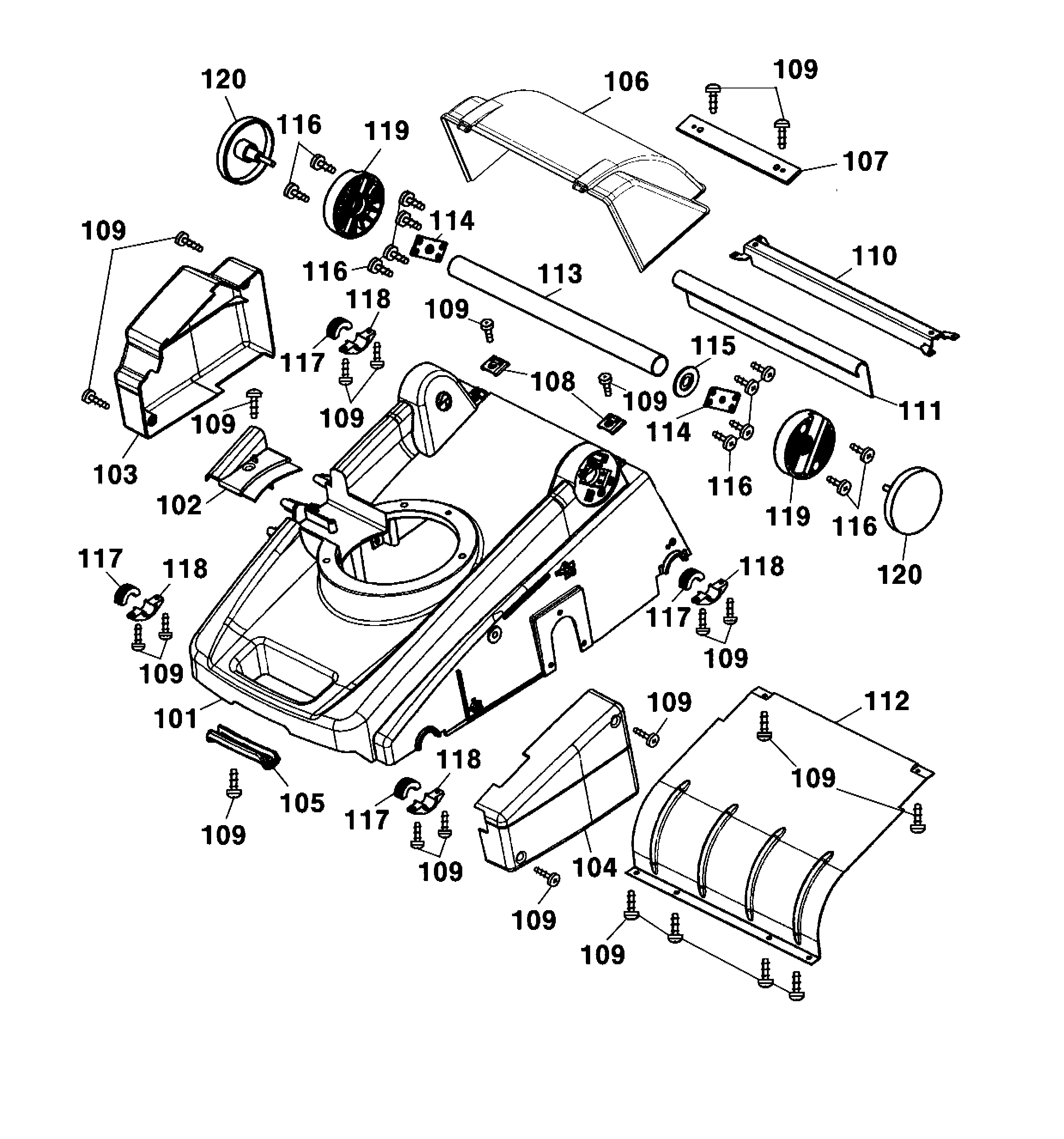

Spare Parts Lists for Wolf Scarifiers / Aerators Chassis

pos.	decription	spare part number
101	Chassis	3638 420
102	Belt Guard, Upper	3638 301
103	Belt Guard, Right	3638 300
104	Cover Left	3638 302
105	Front Handle Spill	4601 309
106	Rear Flap	3638 303
107	Counterweight	6450 149
108	Hinge 2 Qty	3638 304
109	Screw 5X12	0012 605
110	Tie-Bar	3638 134
111	Rubber Edge	3638 330
112	Deck Liner	3638 136
113	Tubular Grip, Rear	3638 122
114	Flange	3638 138
115	D-Ring	3638 314
116	Screw M6X12	0012 609
117	Bearing Shell	6450 309
118	Front Support Shell	6450 305
119	Insulator	3638 310
120	Handwheel	3638 018
