Handlebar compl.

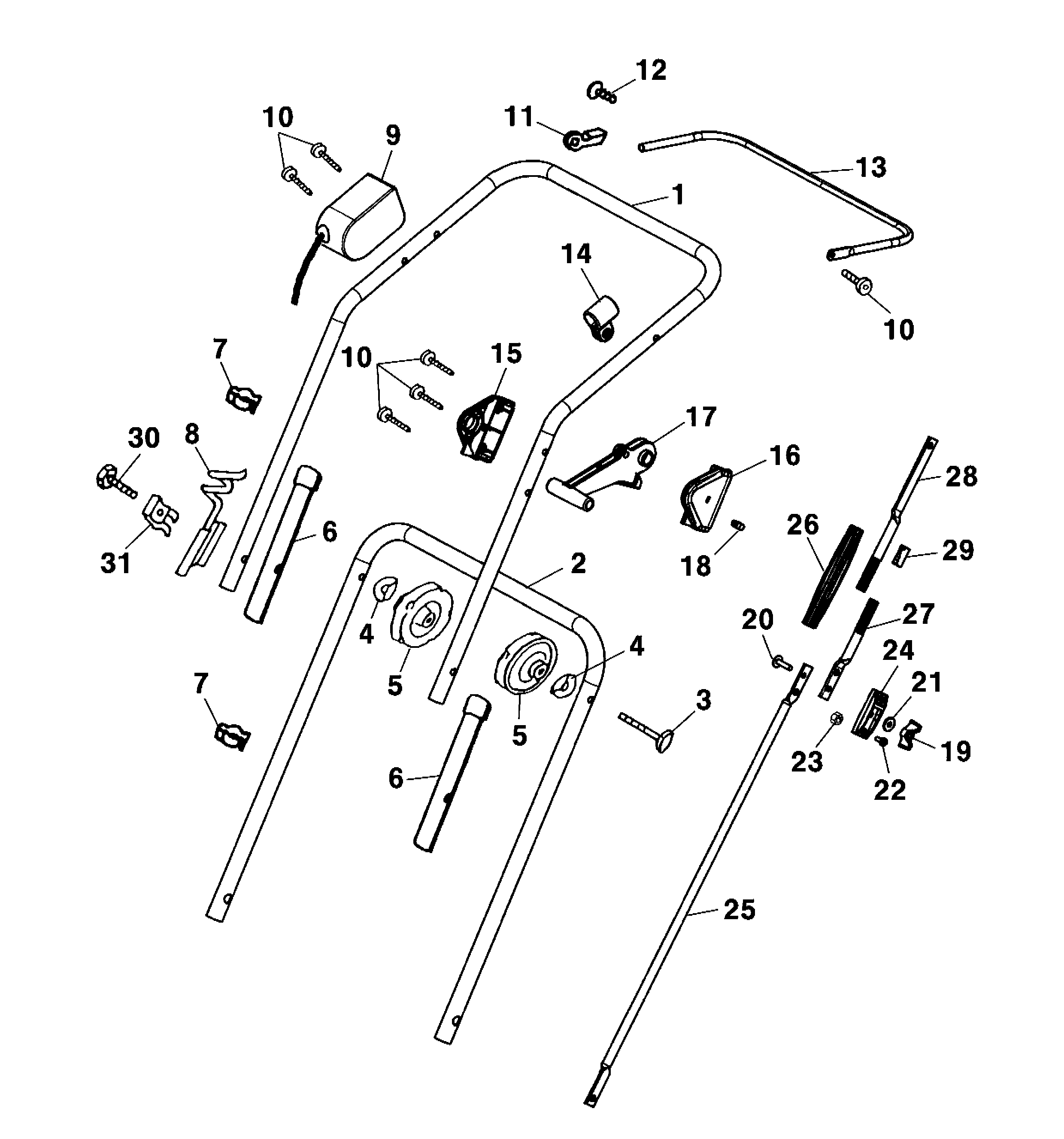

Spare Parts Lists for Wolf Scarifiers / Aerators Handlebar compl.
pos.
decription
spare part number
1
Upper Handlebar
3638 020
2
Lower Handlebar
4317 120
3
Connecting Screw
4901 101
4
Hollow Disk
0017 275
5
Handwheel
4936 022
6
Closing Cap
6340 125
7
Cable Clamp
4950 307
8
Guide-Rope
6340 014
9
Deadman Switch
3638 051
10
Screw
0012 625
11
Bushing
4940 105
12
Screw
0015 820
13
Bracket Bracket
4317 014
14
Clamp-Casing
4935 105
15
Case, Right
3632 103
16
Case, Left
3632 102
17
Lever
3638 313
18
Bolt
3638 117
19
Wingnut
3568 308
20
Screw
0013 632
21
Washer
0017 290
22
Screw
0012 864
23
Hex. Nut
0016 310
24
Link-Counterweight
3638 312
25
Connection Rod
3638 152
26
Height Adjusting Nut
3638 311
27
Centre Link
3638 148
28
Upper Link
3638 206
29
Label
3638 146
30
Screw
0010 338
31
bend protection
4950 308
