> Petrol engines > Briggs & Stratton > Intek > Intek Edge SV > Crankshaft, Piston assembly

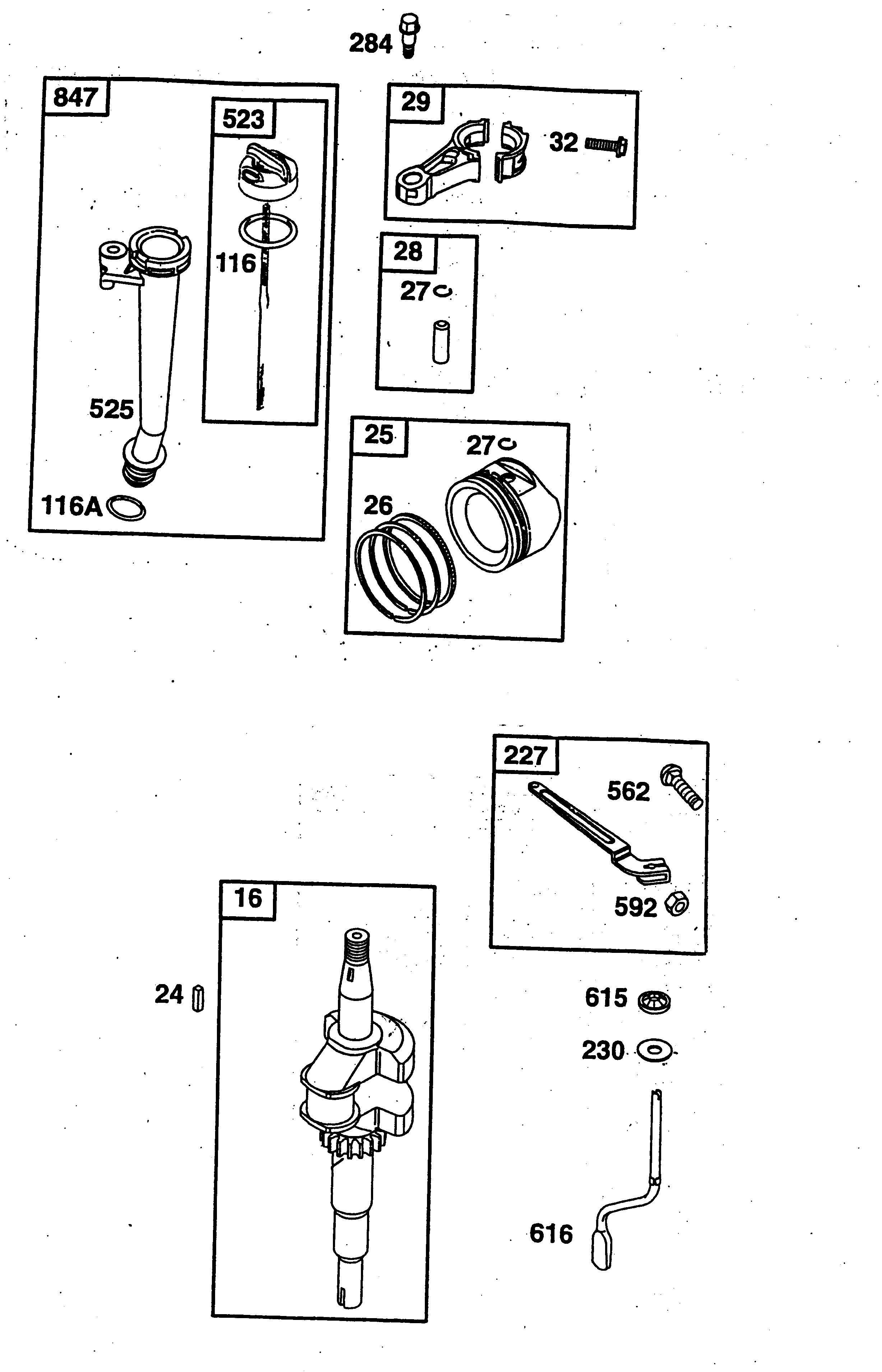

Spare Parts Lists for Wolf Petrol engines Crankshaft, Piston assembly




spare parts list


pos.decriptionspare part number
16Crankshaft2057 191
24Flywheel Pin2057 130
25Piston2057 015
26Piston Ring Set2057 016
27Retainer-E Ring2057 164
28Piston Pin2057 195
29Rod-Connecting2057 196
32Screw2059 115
116Seal-Dipstick Tube2063 211
116ASeal-Dipstick Tube2063 216
227Lever-Governor2057 187
230Washer2063 116
284Screw2063 316
523Dipstick2057 189
525Tube - Dipstick2063 212
562Screw2057 134
592Nut2063 123
615Nut2063 125
616Crank - Governor2057 163
847Oil Filler Assy.2057 010
