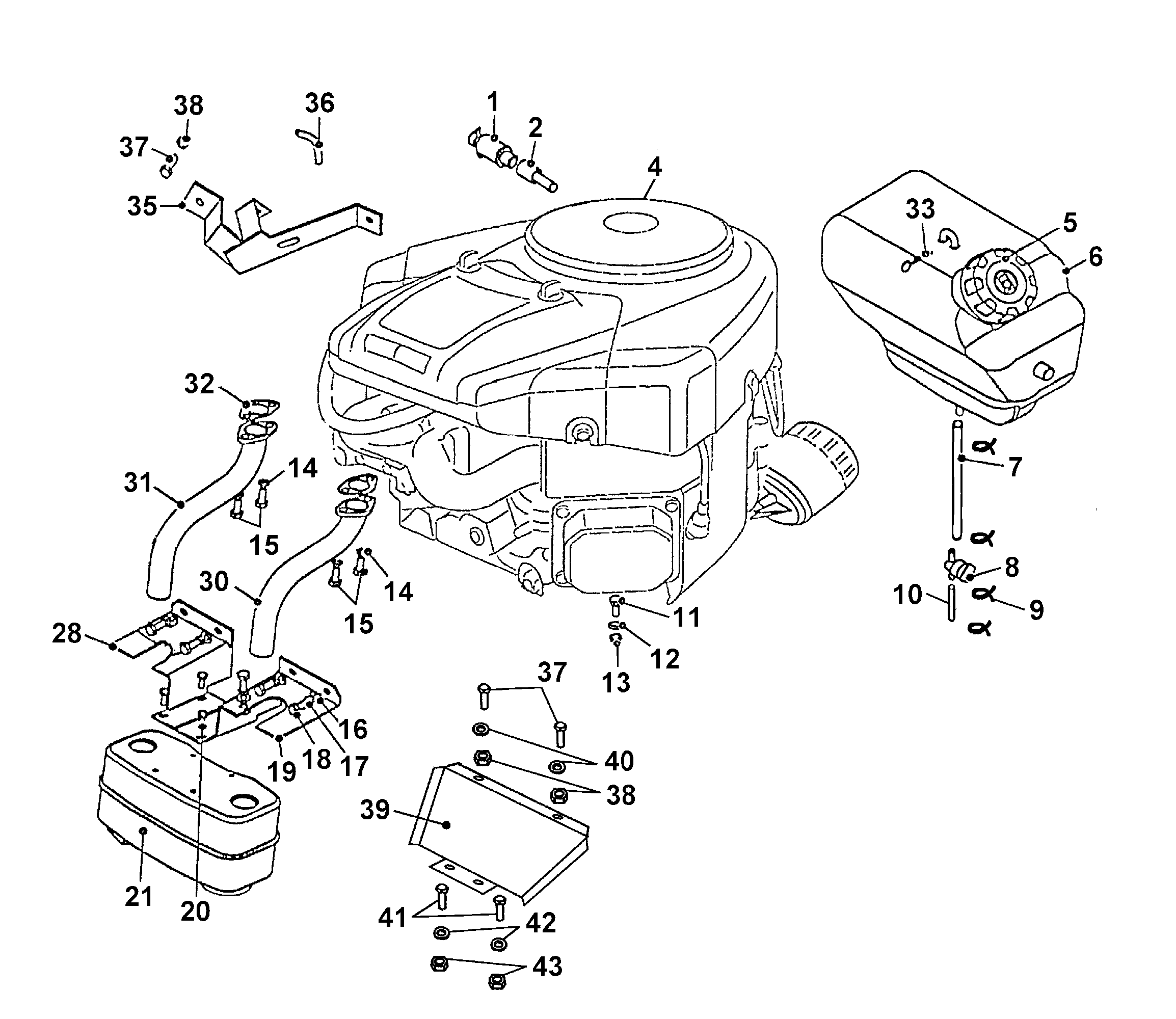

Spare Parts Lists for Wolf Ride-on Mowers Engine assembly




spare parts list


pos.decriptionspare part number
1Oil Drain Valve 74096205 049
2Oil Drain Coupler6205 537
4Engine, Intek V-Twin 18 Hp-B&S1002 000
5Fuel Tank Cap6205 323
6Fuel Tank6205 315
7Fuel Line 240Mm6200 335
8Fuel Tank Valve6205 143
9Spring Clip Um 50086205 142
10Fuel Line 70Mm6200 345
11Hex Screw M8X35 Din 933 8.86205 569
12Washer A 8,4 Din 1250017 123
13Hex. Nut0016 312
14Washer Spring0017 909
15Exhaust Screw 5/16-18Unc-3/4Lg6205 123
16Washer A 8,4 Din 1250017 123
17Washer Spring0017 909
18Hex Screw M8 X 20 Din 933 8.80010 402
19Muffler Guard Left6205 486
20Taptite Thread Form Screw 1/4"-20 - 1/26205 548
21Muffler6205 350
28Muffler Guard Right6205 487
30Manifold Lh-18 Hp V-Twin Intek6205 552
31Manifold Rh-18 Hp V-Twin Intek, Right6205 553
32Exhaust gasket 18 HP-INTEK6205 351
33Clip6205 107
35Bracket6205 489
36Fuel Line6205 326
37Screw M6X12 Din 933 8.80010 383
38Nut0016 311
39Heat Shield6205 496
40Washer0017 121
41Screw M5X12 Ecofix 4.86205 130
42Flat Washer 5.3 Din 9021 B0017 287
43Hex. Nut0016 310
