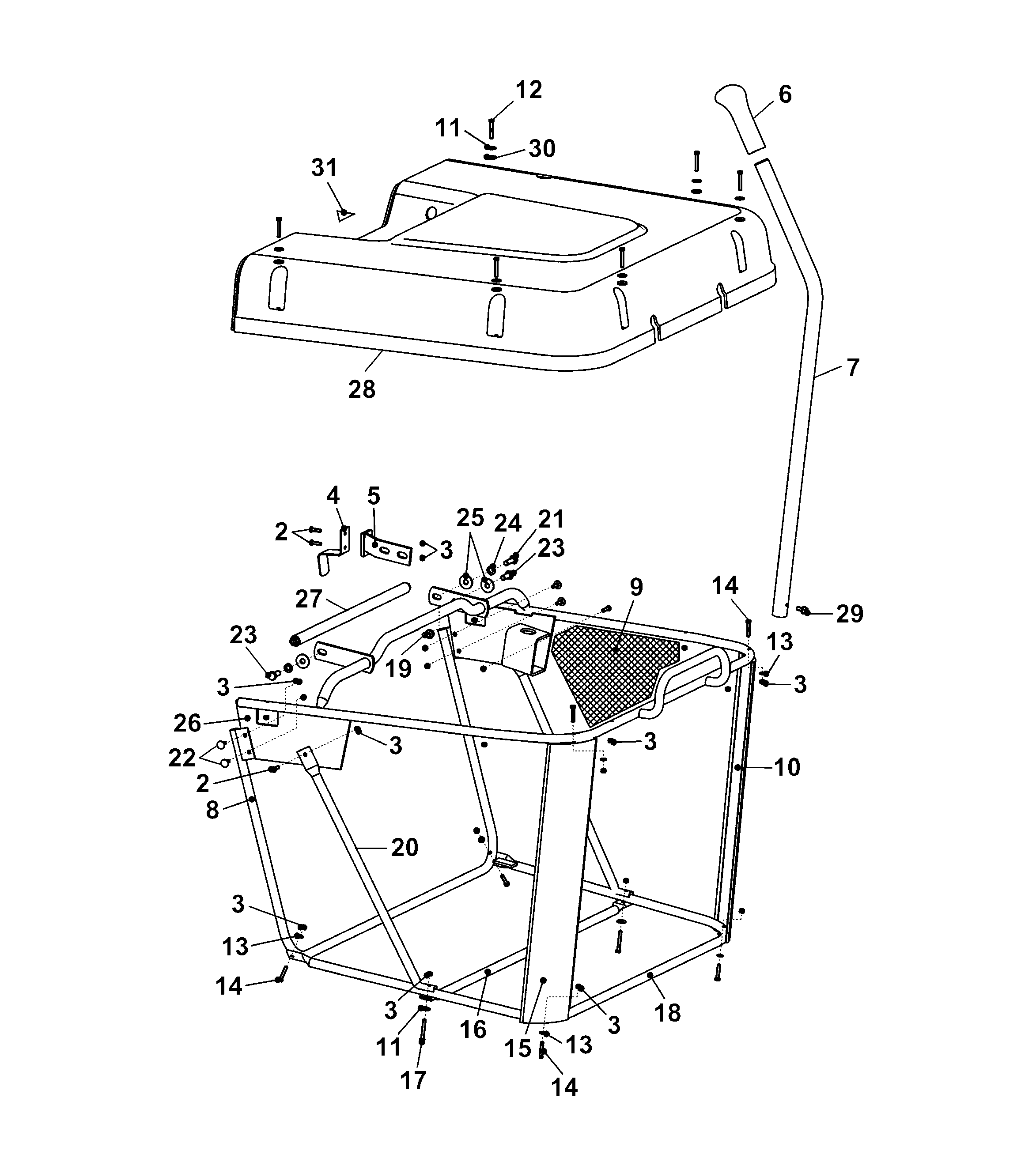

Spare Parts Lists for Wolf Ride-on Mowers Grass collector assembly

spare parts list

pos.	decription	spare part number
1	Grass Collector Assy	6200 015
2	Screw	0010 363
3	Hex. Nut	0016 310
4	Washer Spring	6205 469
5	Washer Spring	6200 469
6	Handle Grip, Dump Lever	6205 314
7	Dumping Lever	6205 479
8	Front Frame Assy	6205 462
9	Grass Catcher Cloth	6205 334
10	Right Corner Support	6205 104
11	Flat Washer 5.3 Din 9021 B	0017 287
12	Hex Screw M5X30-Din 933 8.8	6200 133
13	Washer	0017 120
14	Hex Screw M 5X25	0010 360
15	Left Corner Support	6205 105
16	Tie-Bar	6205 106
17	Hex Screw M 5X35	6205 565
18	Lower Frame	6205 520
19	Hex. Nut	0016 312
20	Brace K3 00026048	6200 132
21	Hex Screw M8X25-Din 933 8.8	0010 125
22	Screw	0013 631
23	Hex Screw M8 X 20 Din 933 8.8	0010 402
24	Washer Spring	0017 909
25	Flat washer 8.4 DIN 9021 B	6205 568
26	Top Frame Assy	6200 016
27	Carrying Handle	6205 464
28	Grass Collector Cover	6200 333
29	Taptite Thread Form Screw 1/4"-20 - 1/2	6205 548
30	Rubber Washer 5,3	6205 327
31	Label	6205 205
