UV 35 B
>
Handlebar, Switch

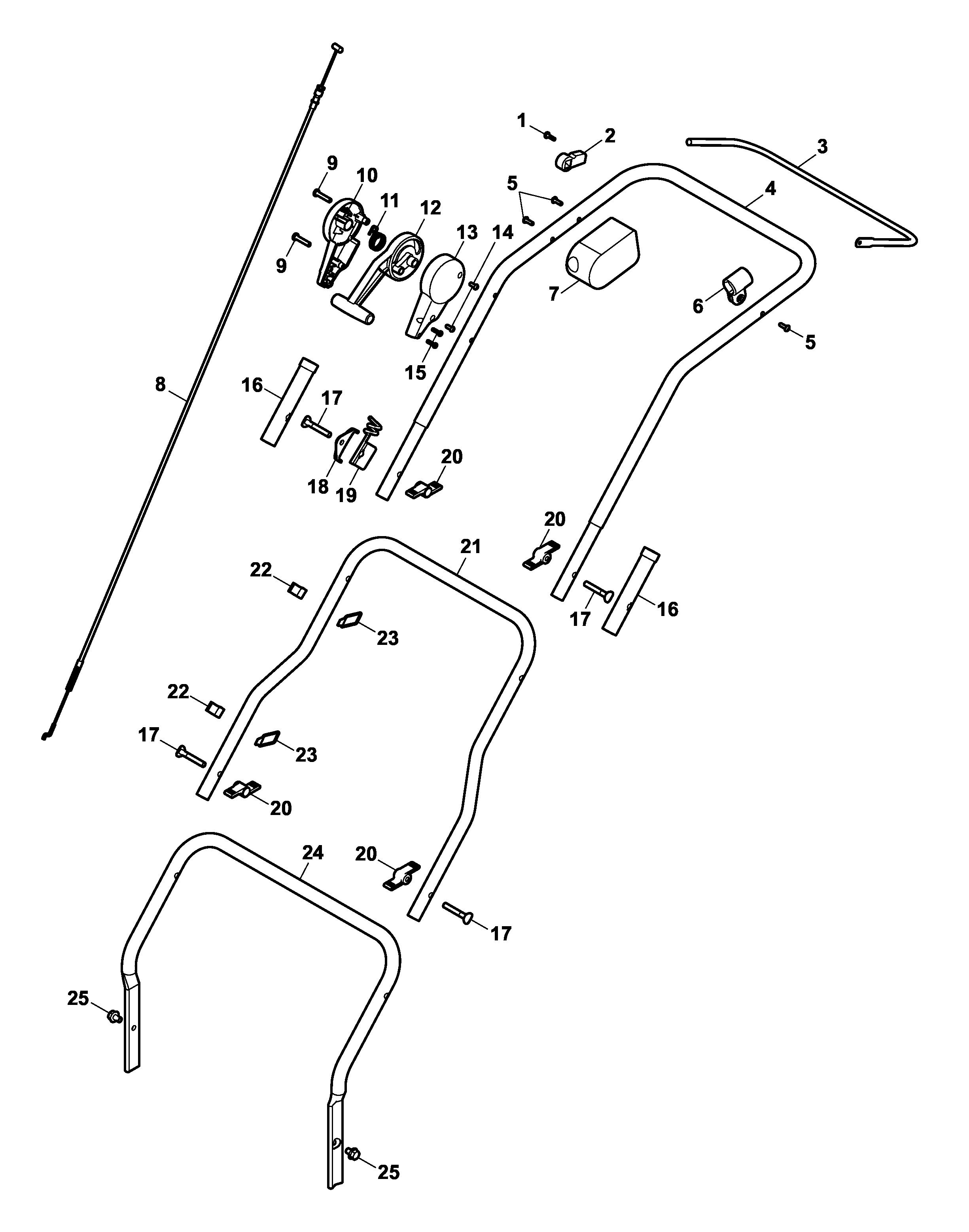

Spare Parts Lists for Wolf Scarifiers / Aerators Handlebar, Switch
pos.
decription
spare part number
1
Screw
0015 820
2
Bushing
4940 105
3
Bracket Bracket
4317 014
4
Upper Handlebar
3635 042
5
Screw
0012 625
6
Clamp-Casing
4935 105
7
Switch-Key
3635 050
8
Bowden Wire
3635 123
9
Screw
0012 642
10
Case, right
3635 314
11
Spring
3635 127
12
Lever(Replaces 6930506)
3635 316
13
case, left
3635 312
14
Screw K50x12 (2 pieces)
0012 629
15
Screw
0012 625
***
case with bowden wire
3635 031
16
Closing Cap
6340 125
17
Connecting Screw
4901 101
18
Antikink
4907 338
19
Guide-Rope
6340 014
20
Wingnut
0016 725
21
middle handlebar
3635 121
22
Clip
6340 312
23
Strap
6340 314
24
Lower Handlebar
3635 118
25
Screw
0010 404
***
Instruction Manual
0054 450
