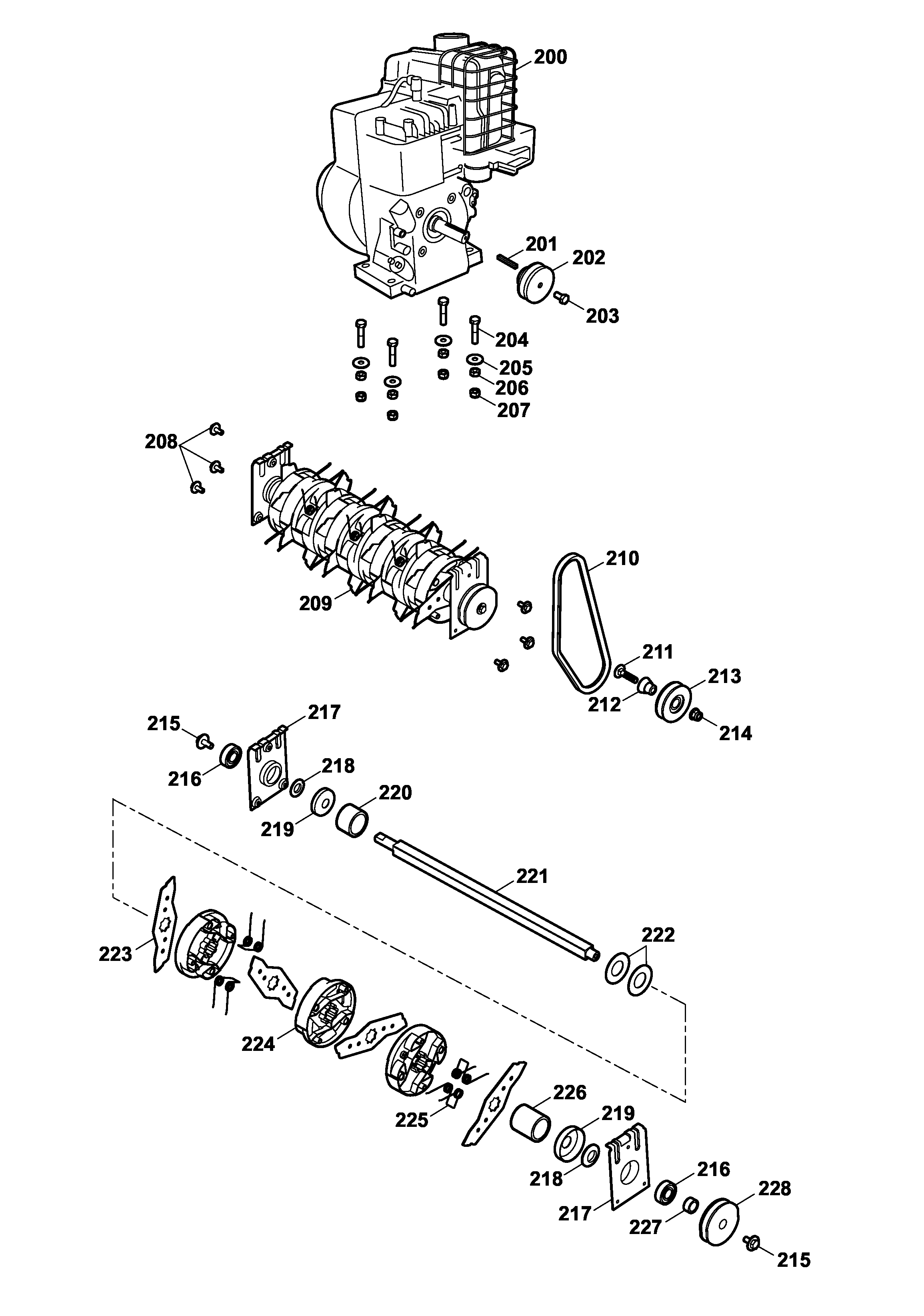

Spare Parts Lists for Wolf Scarifiers / Aerators Motor, Roller

pos.	decription	spare part number
200	Motor	2089 000
201	Woodruff Key	0028 775
202	V-Belt Pulley	3635 128
203	Screw	0010 010
204	Screw M8X45-Din 931 8.8	0010 334
205	Washer	0017 291
206	Self Locking Nut M8 Din 985 Ci.8	0016 213
207	Hex. Nut	0016 312
208	Screw	0010 681
209	Roller Compl.	3635 060
210	Drive Belt 42Cm	0039 227
211	Screw	0013 655
212	axis for tension pulley, inner	3635 110
213	tension pulley, inner	3635 108
214	Nut	0016 385
215	Screw	0010 892
216	Bearing	0023 148
217	Bearing Shell	3568 017
218	Ring	3568 512
219	Cover	3568 509
220	Distance Bush	3585 510
221	Shaft	3635 120
222	Belleville Spring Washer	0022 850
223	Blade Set	3640 097
224	distance bush	3635 319
225	replacement springs UV-EFF 40	3640 098
226	Distance Bush Inner, Green	3630 312
227	Spacer	3635 111
228	V-Belt Pulley	3635 112
