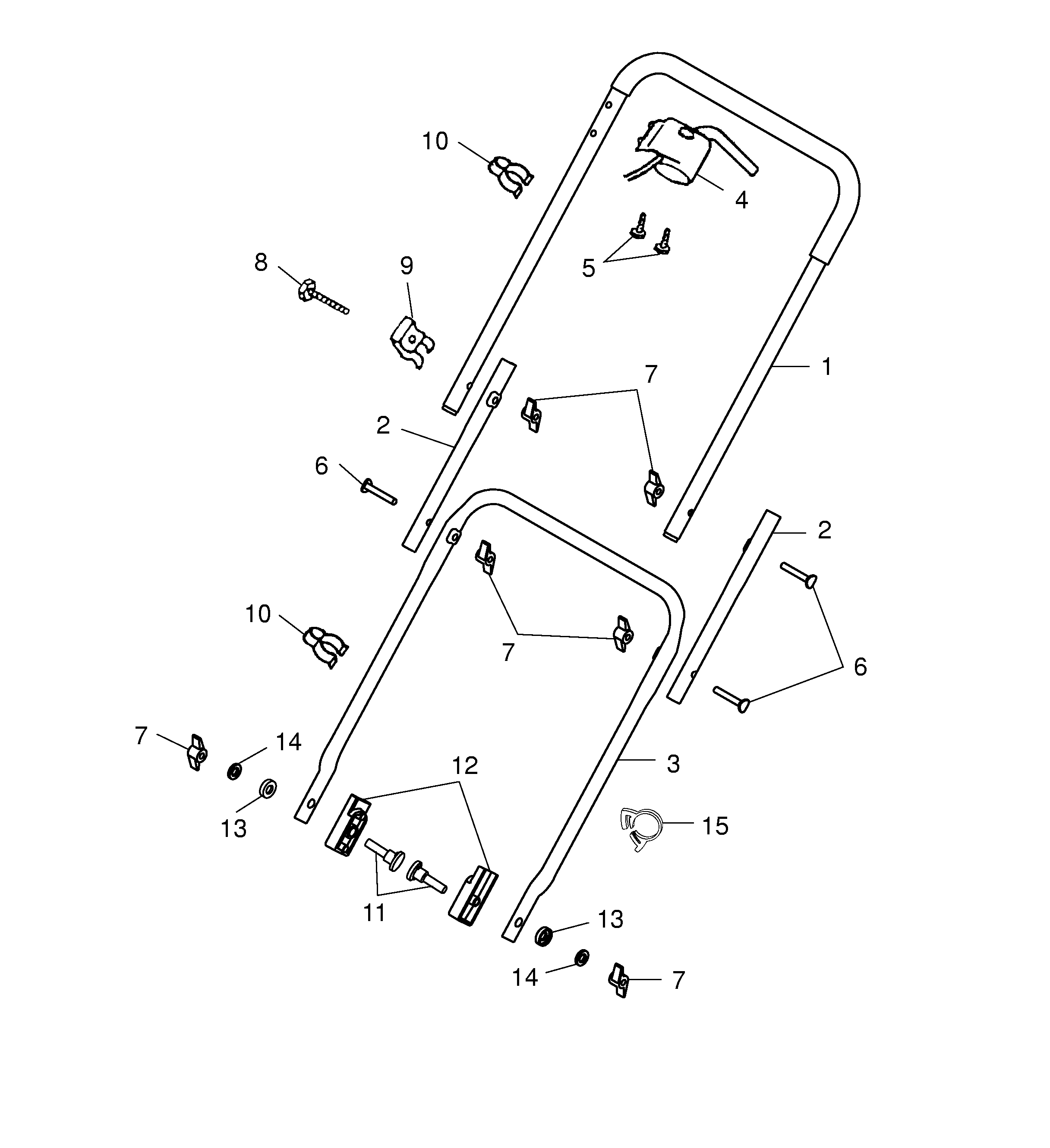

Spare Parts Lists for Wolf Reel-mowers Handlebar, Switch

pos.	decription	spare part number
1	Upper Handlebar	3616 025
2	Handle Pipe	3616 120
3	Lower Handlebar	3616 130
4	Switch-Key	3617 040
5	Screw	0012 883
6	Connecting Screw	4901 101
7	Wingnut	0016 720
8	Hex. Screw M8X50	0010 392
9	bend protection	4950 308
10	Cable Clamp	4950 307
11	Securing Screw	3620 110
12	Insulator	3620 311
13	Insulating Disk	3620 313
14	Washer	0017 112
15	Clamp	3616 310
***	Bag With Accessories	3617 030
***	Instruction Manual	0054 373
