> Mowers > Petrol > Without drive up to 42 cm > Esprit > Esprit 40 B > Handlebar compl.

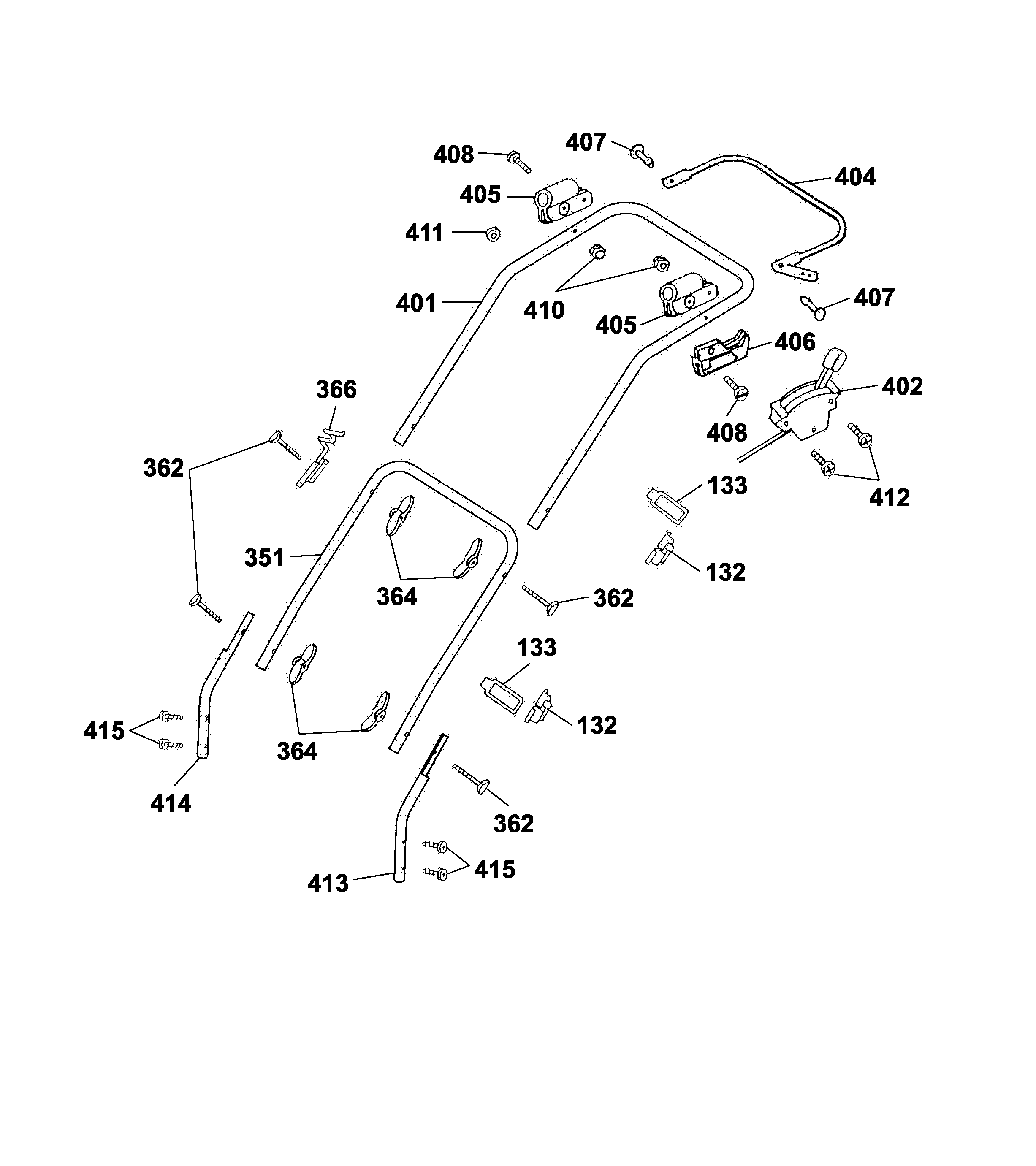

Spare Parts Lists for Wolf Mowers Handlebar compl.




spare parts list


pos.decriptionspare part number
132Clip6340 312
133Strap6340 314
351Lower Handlebar4001 132
362Connecting Screw4901 101
364Wingnut0016 723
366Guide-Rope6340 014
401Upper Handlebar4001 022
402Case With Bowden Wire, Gas4001 057
404Brake Lever4001 013
405Clamp-Casing4720 105
406Support4760 106
407Bolt4720 109
408Screw0012 211
410Nut0016 641
411Distance Disc4240 205
412Screw0012 886
413Pipe, Left4001 135
414Pipe, Right4001 137
415Screw0015 660
***Instruction Manual0054 412
