> Mowers > Petrol > Without drive up to 42 cm > Esprit > Esprit 40 B > Motor, Blade

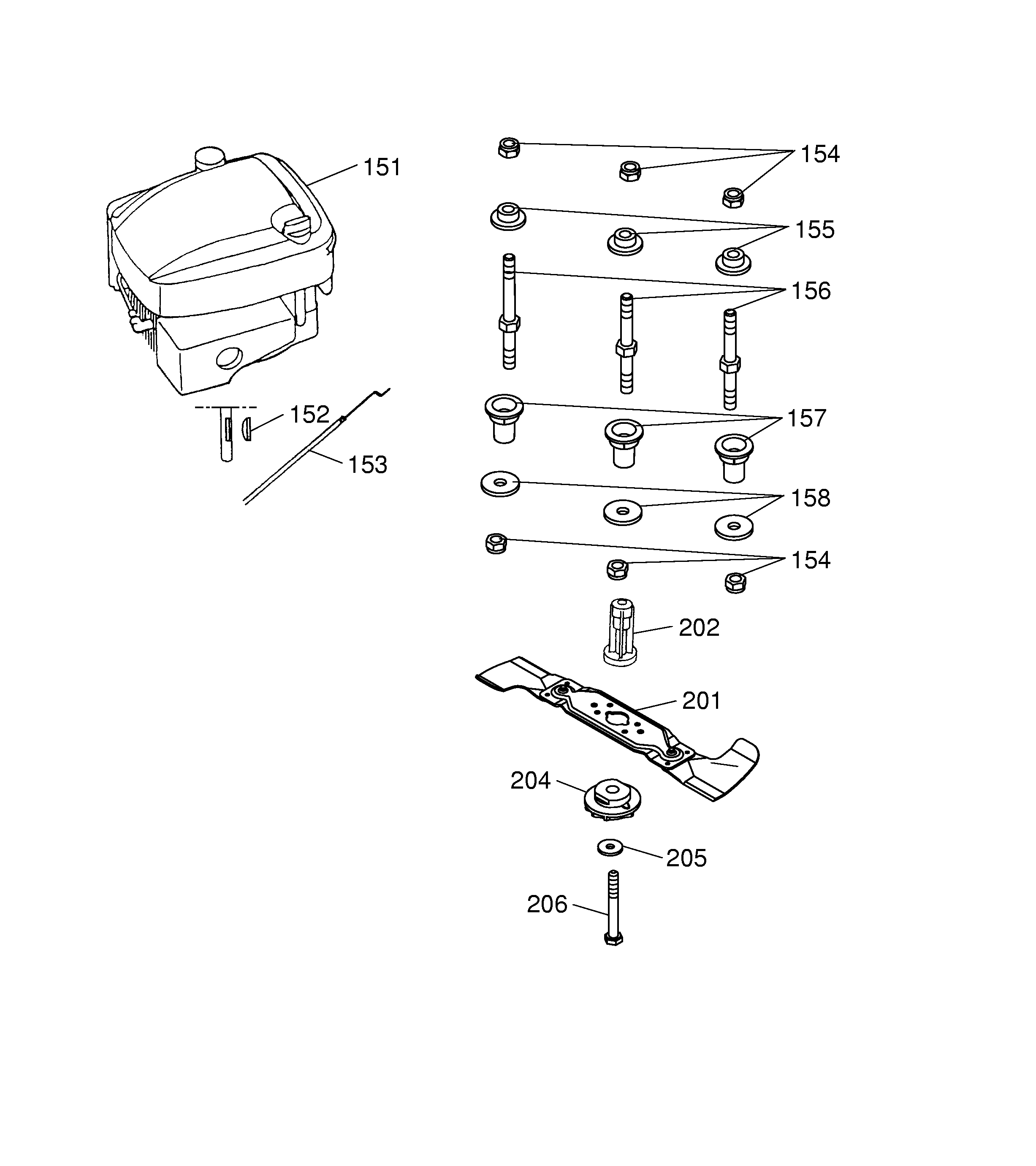

Spare Parts Lists for Wolf Mowers Motor, Blade




spare parts list


pos.decriptionspare part number
151Motor "Quattro 40"2056 000
152Key0029 130
153Bowden Wire Brake4005 058
154Hex. Nut0016 312
155Motor Bush4001 172
156Stud Bolt, Short4001 170
157Spacer4601 312
158Washer0017 111
201Cutter Bar Compl.4001 094
***Replacement blades VI-W (1 pair)4350 040
202Coupling4601 404
204Driver4605 408
205Friction Washer0017 105
206Screw0010 264
