Spare Parts Lists for Wolf Mowers Handlebar compl.

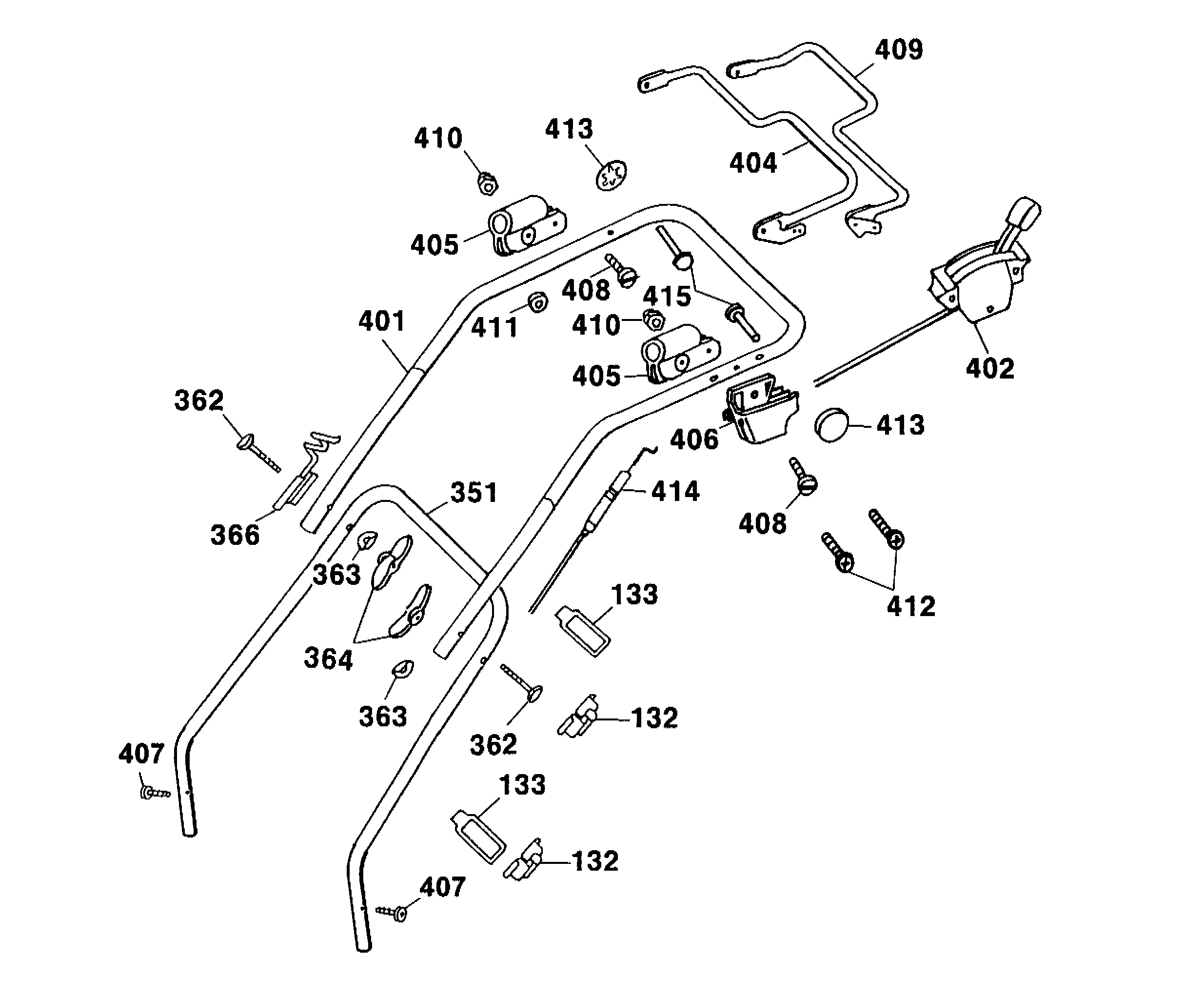

spare parts list


pos.decriptionspare part number
132Clip6340 312
133Strap6340 314
351Lower Handlebar3632 110
362Connecting Screw4901 101
363Hollow Disk0017 275
364Wingnut0016 717
366Guide-Rope6340 014
401Upper Handlebar4003 021
402Case With Bowden Wire Compl.4003 056
403Gear Lever6340 119
404Brake Lever4015 013
405Clamp-Casing4720 105
406Double Support4015 306
407Screw0015 660
408Screw0012 211
409Lever4015 035
410Nut0016 641
411Distance Disc4240 205
412Screw0012 886
413Clip3585 503
414Bowden Wire Coupler4005 055
415Bolt0018 107
***Instruction Manual0054 191
***Information Sheet4007 200
***Bag With Accessories4042 026
