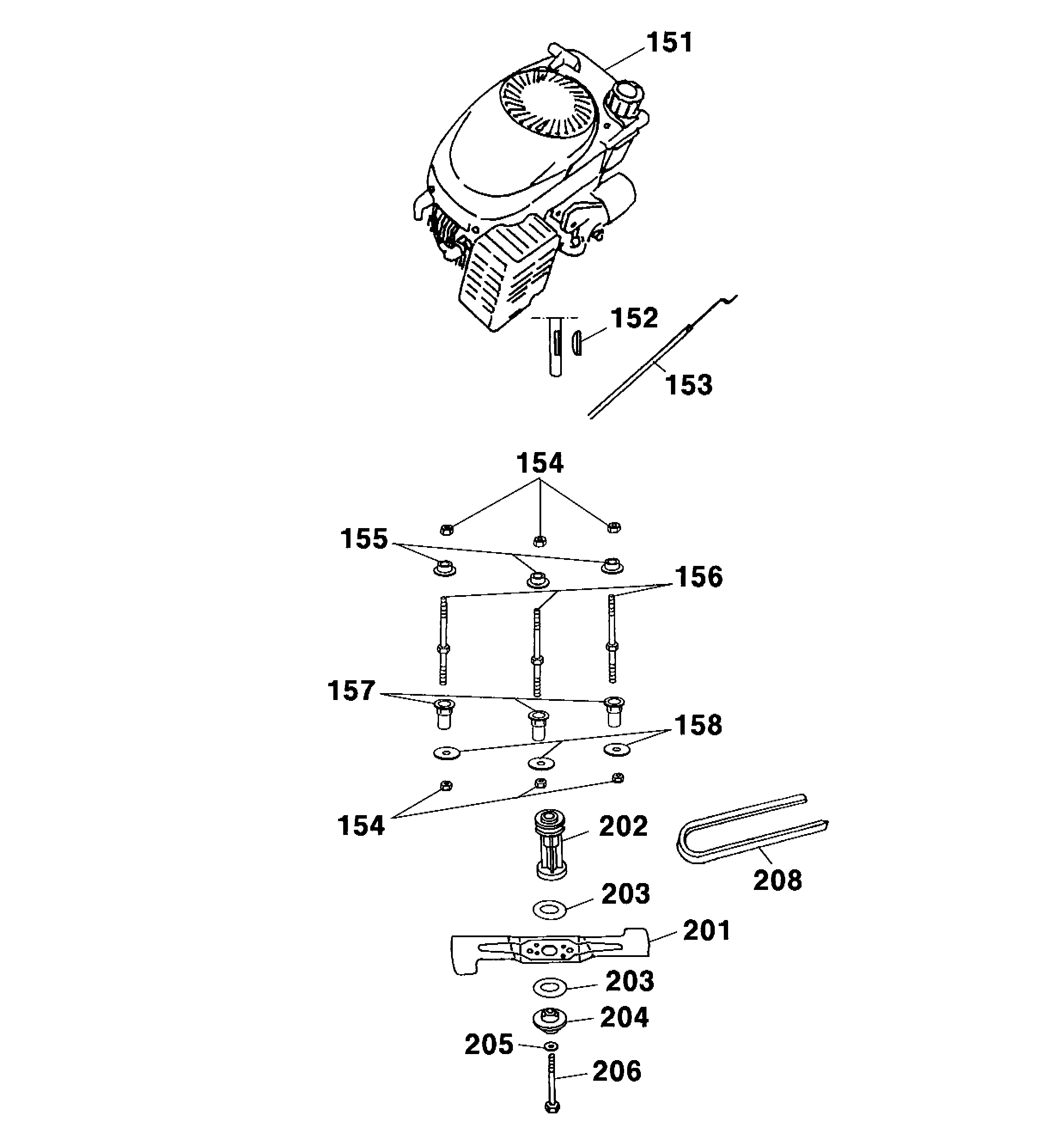

Spare Parts Lists for Wolf Mowers Motor, Blade




spare parts list


pos.decriptionspare part number
151Motor2038 005
152Key0029 055
153Bowden Wire Brake4003 054
154Hex. Nut0016 312
155Motor Bush4001 172
156Stud Bolt, Short4001 170
157Spacer4601 312
158Washer0017 111
201Blade4001 095
202Coupling4605 402
203coupling6450 403
204Coupling Disk4840 402
205Friction Washer0017 105
206Screw0010 264
208Drive Belt 42Cm0039 210
