> Mowers > Petrol > Electric start / Touch 'n Mow > series 4 > 4.42 TAi > Lower handlebar

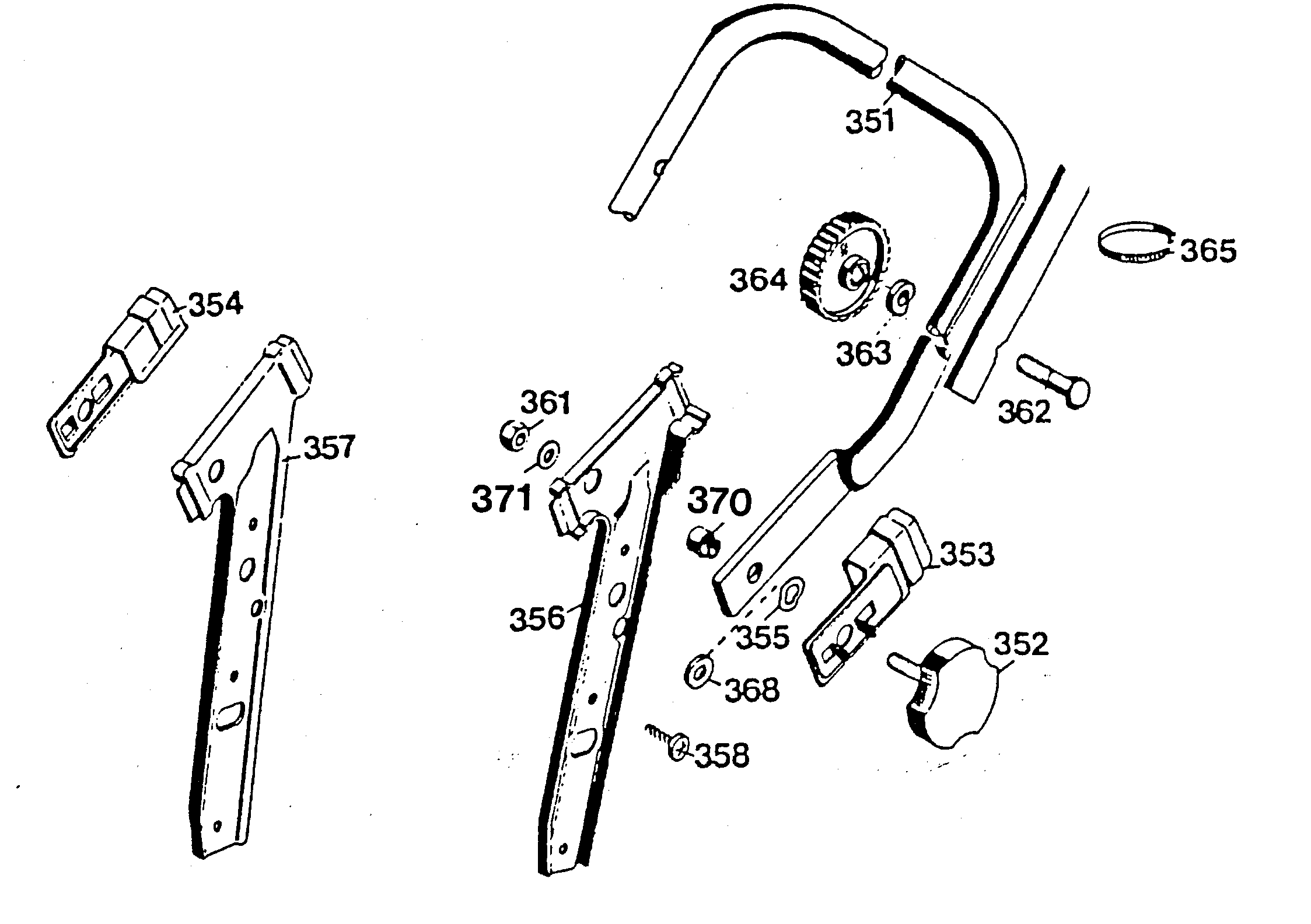

Spare Parts Lists for Wolf Mowers Lower handlebar




spare parts list


pos.decriptionspare part number
351Lower Handlebar4850 120
352Handwheel4325 010
353Panel4740 103
354Panel4740 104
355Washer0017 836
356Retainer4740 101
357Retainer4740 102
358Screw0012 890
370Bush4740 209
371Washer A 8,4 Din 1250017 123
361Hex. Nut0016 312
362Screw0013 525
363Hollow Disk0017 275
364Wing nut4191 016
365Cable Tape4330 228
368Washer0017 074
