> Mowers > Petrol > Electric start / Touch 'n Mow > series 4 > 4.42 TAi > Upper Handlebar

Spare Parts Lists for Wolf Mowers Upper Handlebar

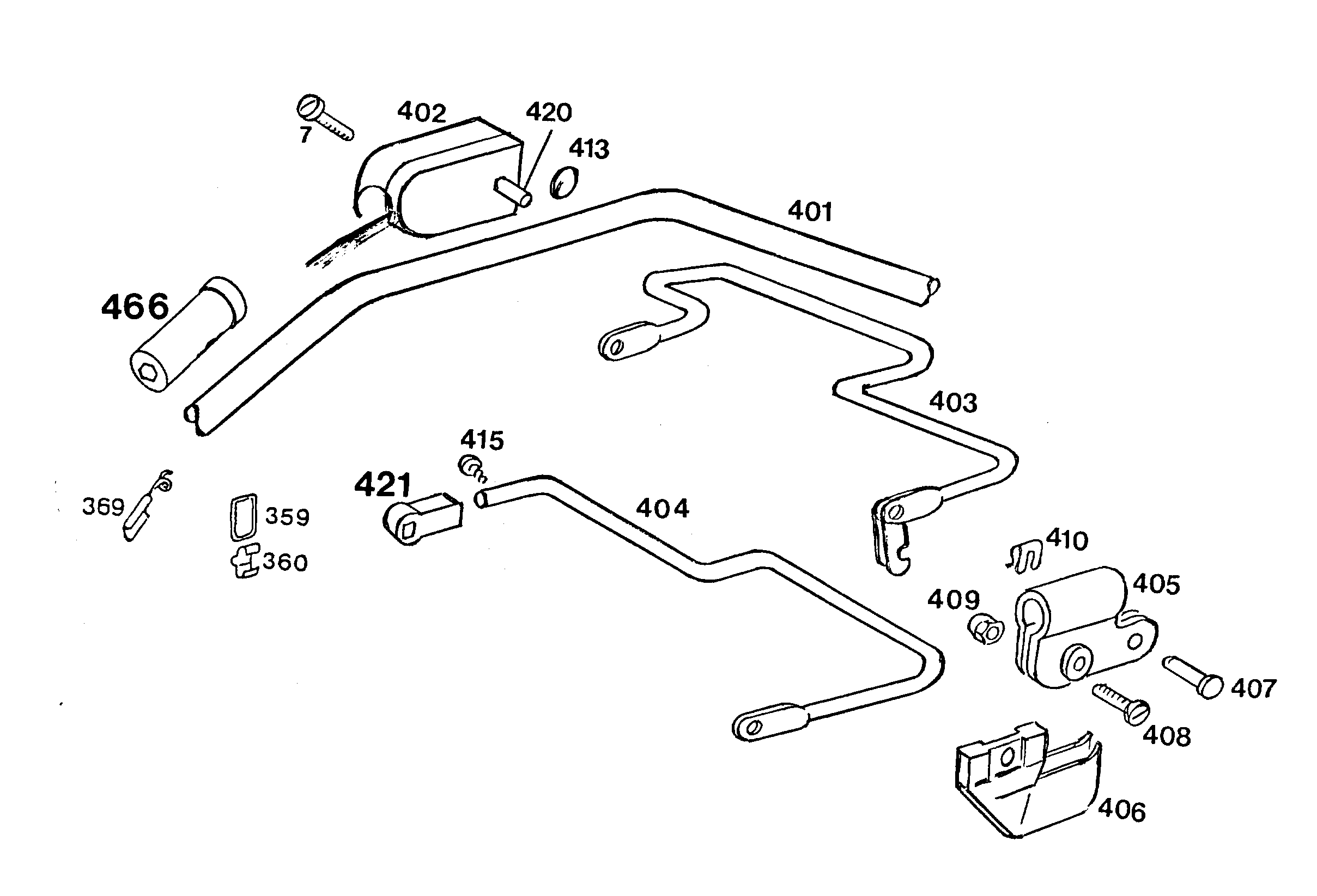

spare parts list


pos.decriptionspare part number
7Screw0012 625
359Strap6340 314
360Clip6340 312
369Guide-Rope6340 014
401Upper Handlebar4880 020
402Switch-Stop4765 051
403Bracket Bracket6522 014
404Gear Lever4920 100
405Clamp-Casing4720 105
406Support4720 106
407Bolt0018 459
408Screw0012 211
409Nut0016 641
410Retaining Clip0020 982
413Clip3585 503
415Screw0015 652
420Bearing Bolt4920 208
421Bushing4940 105
466Closing Cap6360 125
