> Mowers > Petrol > Drive up to 42 cm > Power Edition > Power Edition 40 KA > Motor, Blade

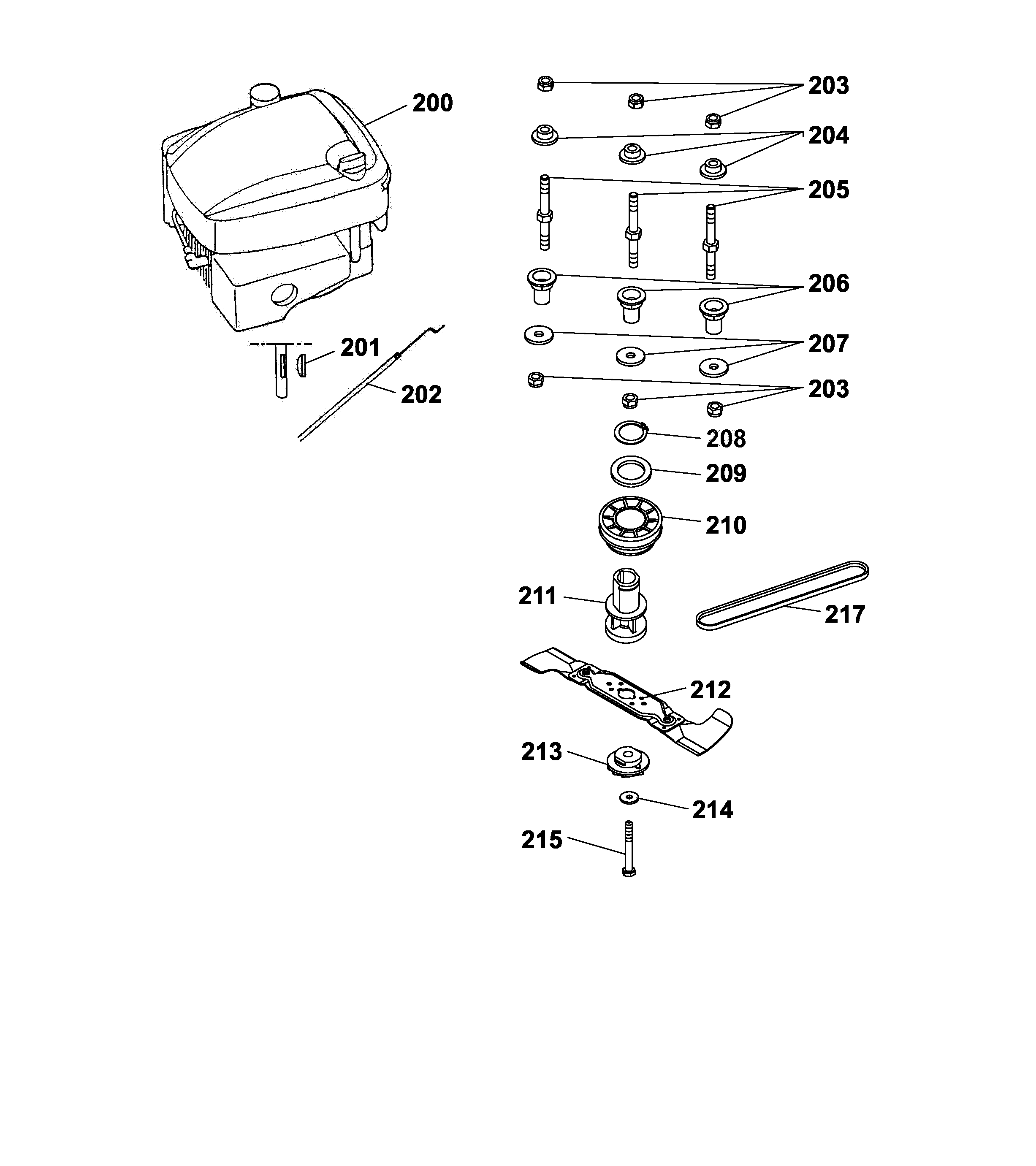

Spare Parts Lists for Wolf Mowers Motor, Blade




spare parts list


pos.decriptionspare part number
200Motor2094 000
201Key0029 130
202Bowden Wire Brake4012 058
203Hex. Nut0016 312
204Motor Bush4012 171
205Stud Bolt4012 170
206Spacer4601 312
207Washer0017 111
208Retainer-E Ring0021 057
209Washer0017 406
210V-Belt Pulley1081 105
211Coupling Bushing4016 405
212Cutter Bar Compl.4001 094
***Replacement blades VI-W (1 pair)4350 040
213Driver4605 408
214Friction Washer0017 105
215Screw0010 264
217Drive Belt 42Cm0039 221
