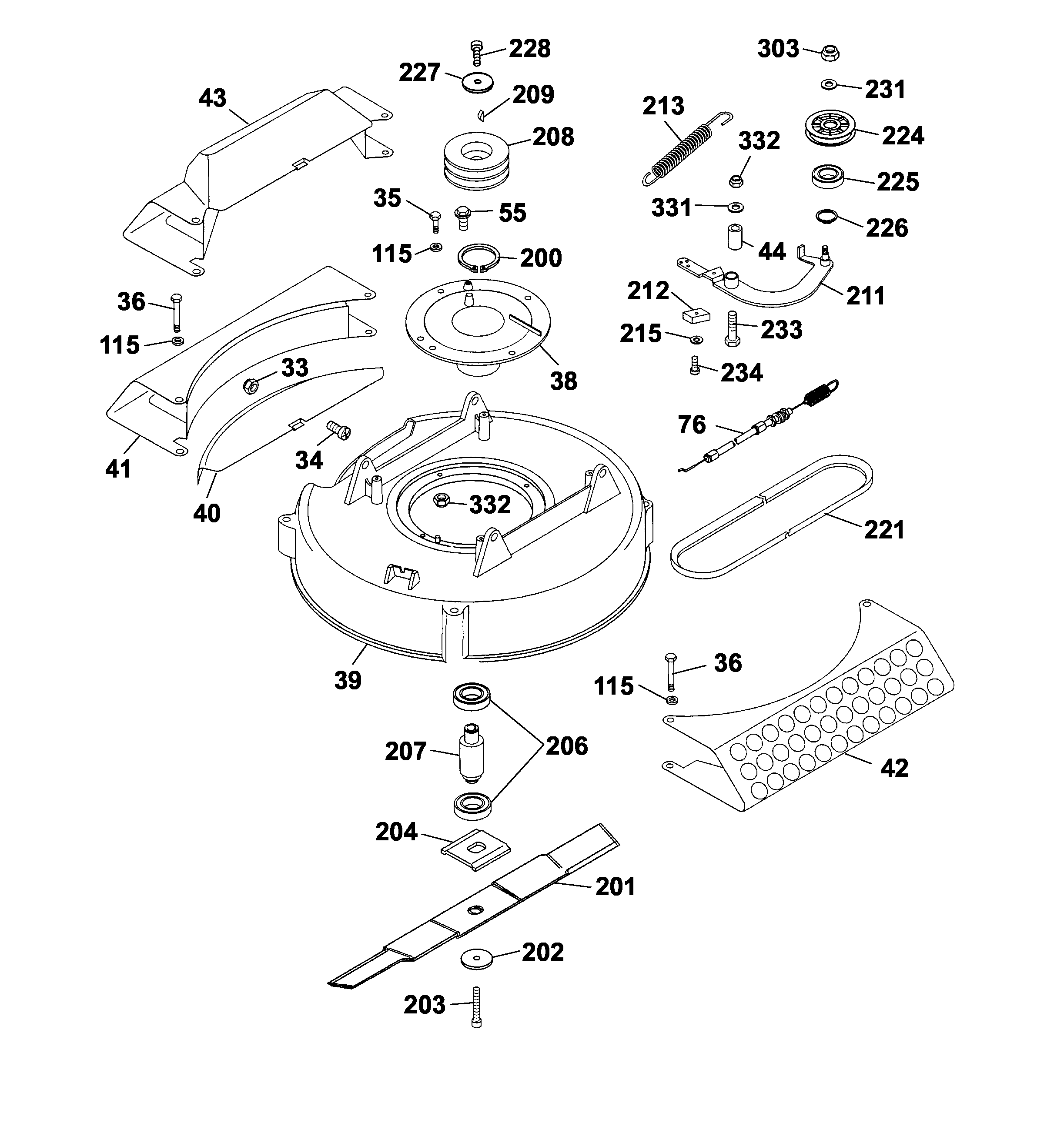

Spare Parts Lists for Wolf Ride-on Mowers Mower deck assy. compl.




spare parts list


pos.decriptionspare part number
33Hex. Nut0016 310
34Screw0012 864
35Screw0010 365
36Screw0010 315
38Bearing Flange, Red6110 423
39Mower Deck6110 421
40Closing Sheet Metal, Red6110 433
41Side Guard With Ring6110 068
42Side Guard6110 424
43Side Guard With Refusing Sheet Metal6110 070
44Distance Bush6150 165
55Screw0010 892
76Bowden Wire, Mower Deck6110 056
115Washer0017 121
200Retainer-E Ring0021 055
201Cutter Bar Mulching6110 400
***Blade6155 400
202Washer6150 441
203Screw0011 420
204Driver6150 427
206Bearing0023 098
207Blade Shaft6110 185
208Pulley (Blade)6110 168
209Feather Key0028 769
211Tension Lever6110 064
212Puck, Friction6110 302
213Tension Spring6110 195
215Flat Washer 5.3 Din 9021 B0017 287
221V-Belt, Mower Deck0039 212
224Idler Pulley6150 166
225Bearing0023 091
226Retainer-E Ring0021 020
227Washer0017 111
228Oval Head Screw0011 359
231Washer A 8,4 Din 1250017 123
233Screw0010 311
234Screw0012 865
303Hex. Nut0016 312
331Washer0017 289
332Nut0016 311
***Decal, Gearchange6195 201
***Operate Label Height-Adjust.6110 202
***Operate Label Blade Coupling6150 203
***Safety Label0051 232
***Wolf-Garten Badge0051 124
***Instruction Manual0054 314
***Key Hook Compl. With Key6110 043
***Information Bulletin6110 207
