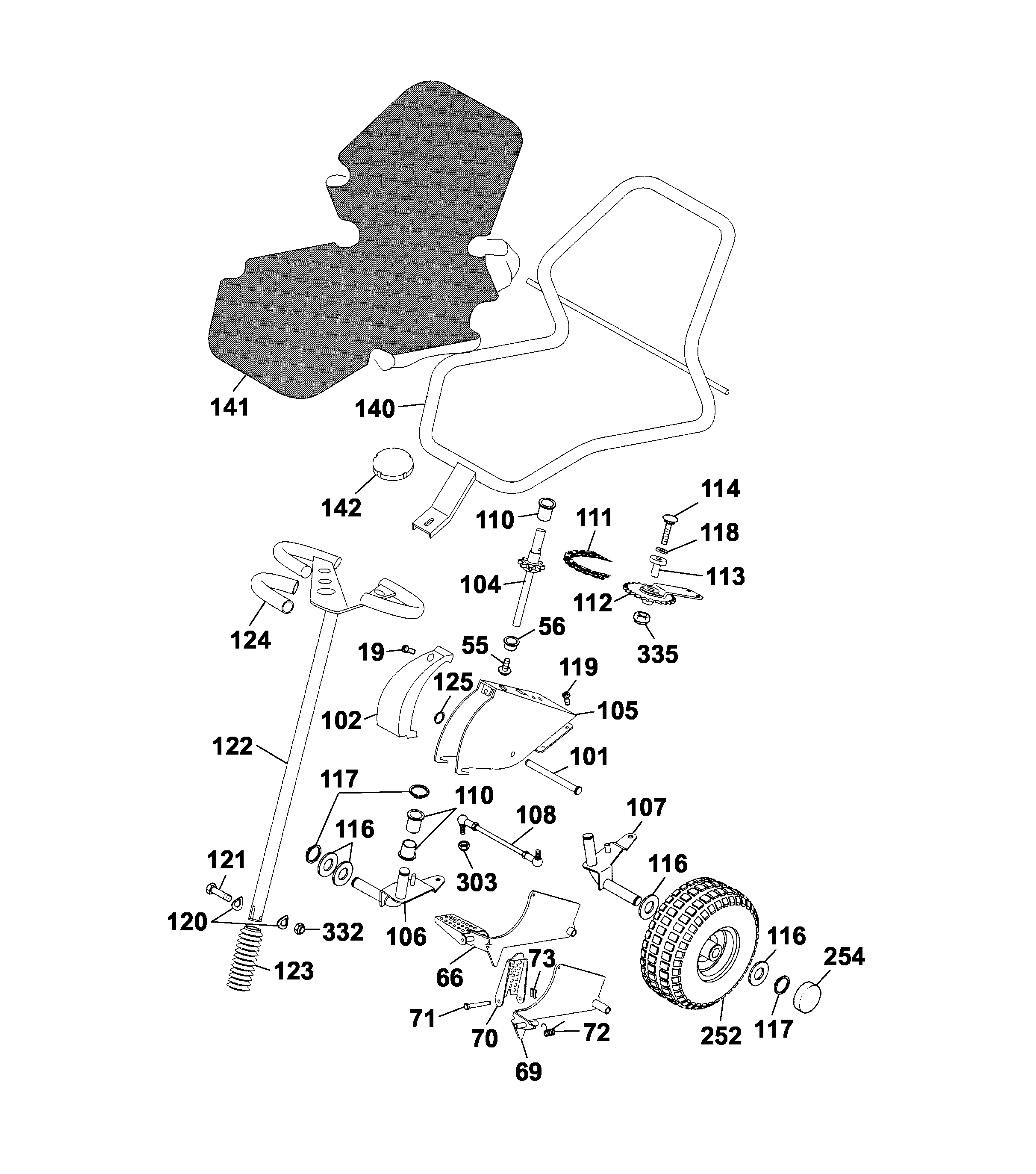

Spare Parts Lists for Wolf Ride-on Mowers Steering, Seat




spare parts list


pos.decriptionspare part number
19Screw0015 820
55Screw0010 892
56Bush6195 160
66Transmission Pedal, Red6110 014
69Pedal Lever, Red6110 018
70Pedal, Red6110 154
71Pedal Axle6110 159
72Spring6110 160
73Retaining Clip0020 982
101Bearing Axle6110 162
102Steering Cover, Red6110 300
104Steering Shaft6195 035
105Panel6110 148
106Stub Axleright (Cart)6195 022
107Stub Axleleft (Cart)6195 020
108Track Rod Assembly6110 035
110Flanged Bush6150 316
111Roller Chain For Steering6110 151
112Track Lever6110 037
113Track Lever Bearing6110 138
114Screw0013 656
116Washer0017 113
117Quick Fixing Clip0020 018
118Friction Lining6110 442
119Screw0012 847
120Friction Disk6150 182
121Screw0010 301
122Racing Steering Wheel6110 033
123Steering Collar6110 301
124Handle Tube6110 305
125Quick Fixing Device0020 008
140Seat Frame6195 046
141Seat Cover6110 310
142Handwheel4901 015
252Front Wheel 'Kenda' Or 'Maxtrac'6150 040
254Cover6150 328
303Hex. Nut0016 312
332Nut0016 311
335Nut0016 385
