Roth / TORO
>
Ride-On Mowers
>
Traktor
>
12-38 XL
>
391/71202
>
3900001
>

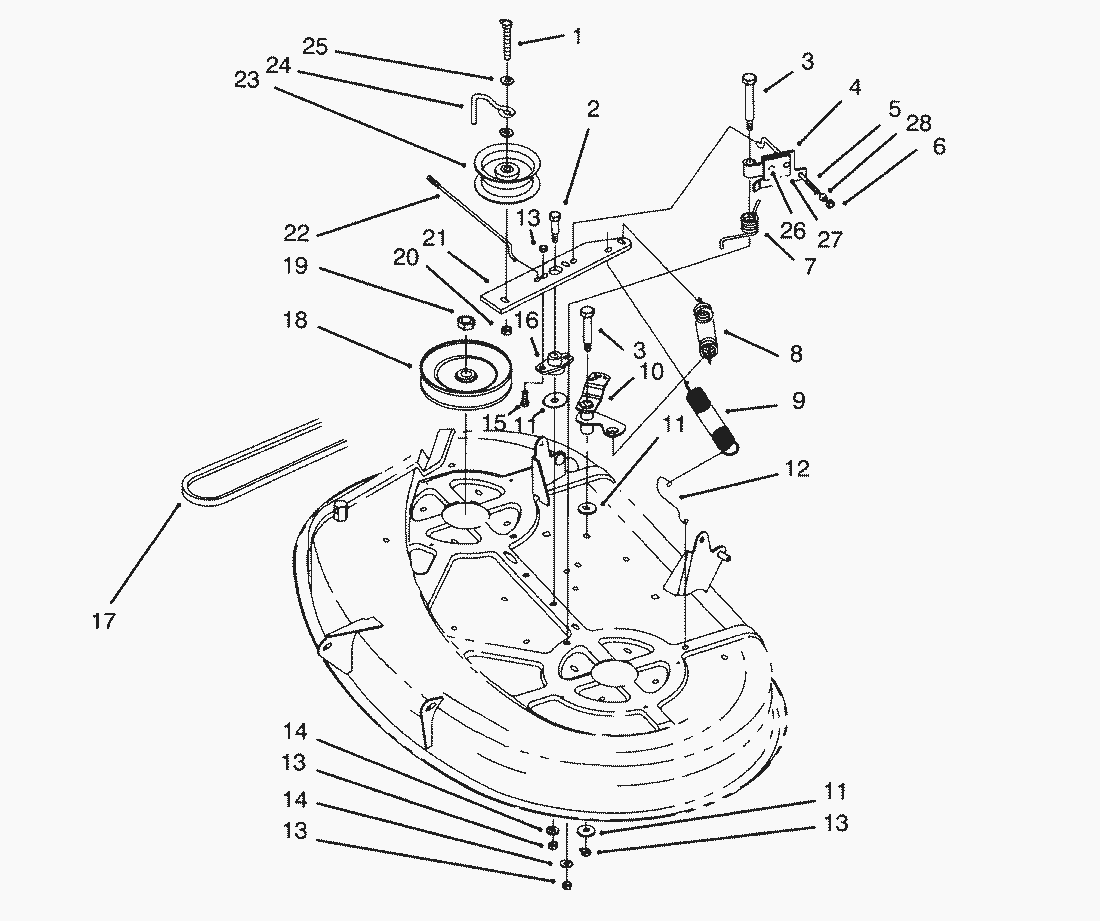

Spare Parts Lists for Toro Roth / TORO
pos.
decription
spare part number
88-6100
pos.
decription
spare part number
1
Hex Hd. Capscrew
323-12
2
Bolt-Shoulder
7-0030
3
Bolt-Shoulder
88-4590
5
Rod-Deck Brake L.H.
88-5550
6
MUTTER
3296-42
7
Spring-Torsion
88-5910
8
Spring-Deck Engage
88-6130
9
Spring-Extension
88-6330
10
Bellcrank
88-5390
11
Washer
3256-68
12
Hook-Spring Return
88-5970
13
MUTTER
3296-29
14
Washer
3256-23
15
Hex Hd. Capscrew
322-5
16
Bushing-Idler Arm
88-4980
17
V-Belt-Deck
88-6250
18
Pulley-Deck
88-5330
19
Nut-Lock
3219-6
20
Locknut
3296-39
21
Arm-Idler
88-4870
22
Rod-Deck Brake R.H.
88-5540
23
Pulley-Idler
88-5630
24
Guide-Idler Belt
88-5070
25
Flat Washer
3256-24
26
Rivet-Pop
3290-282
27
Pad-Brake
56-9830
28
Ball-Swivel
67-0710
