> Roth / TORO > Ride-On Mowers > Traktor > 12-38 XL > 391/71202 > 3900001 > Shift Assy. (Serial No. 3900001-3901496) (Model No. 71180), (Serial No. 3900001-3900480) (Model No. 71202)

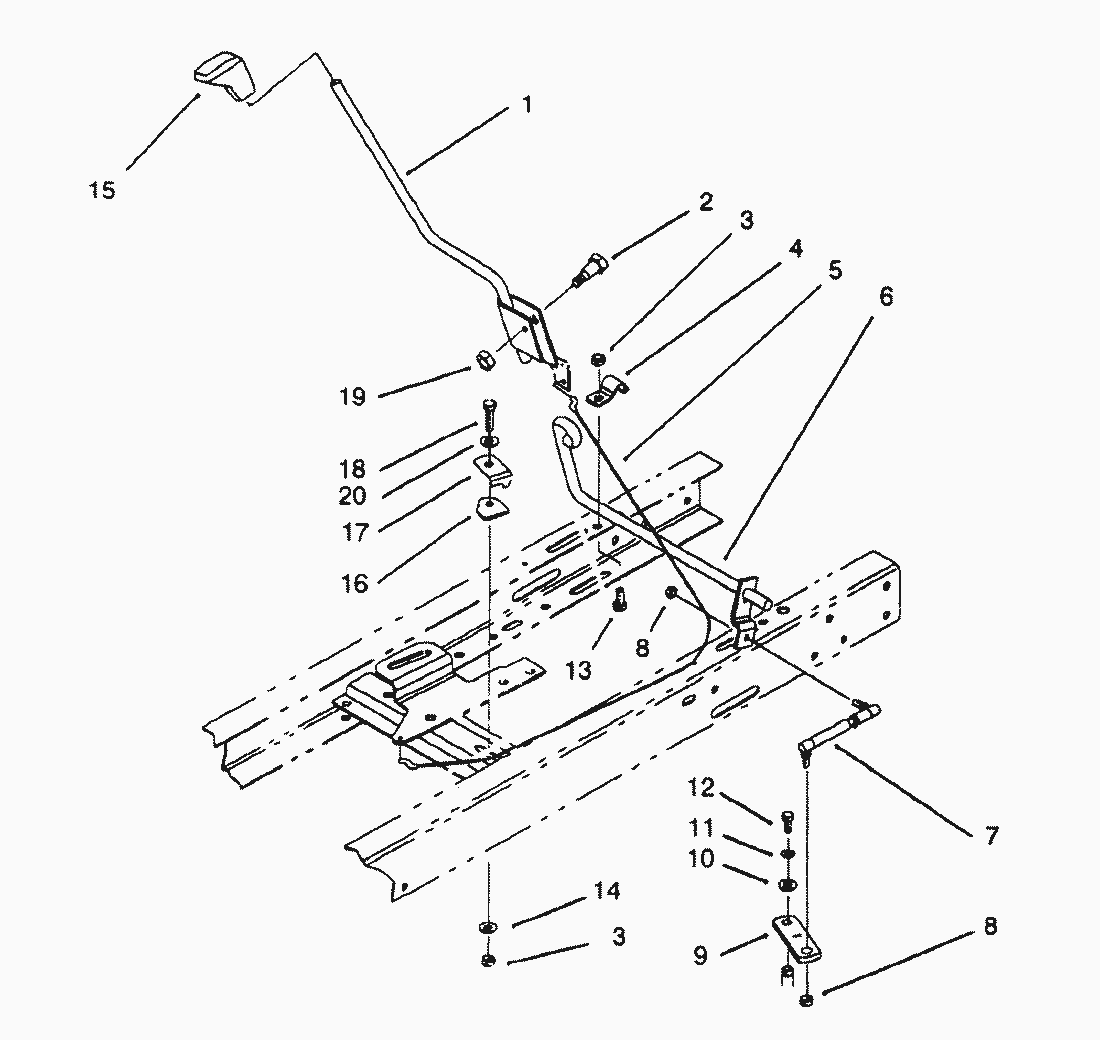

Spare Parts Lists for Toro Roth / TORO Shift Assy. (Serial No. 3900001-3901496) (Model No. 71180), (Serial No. 3900001-3900480) (Model No. 71202)




spare parts list


pos.decriptionspare part number
1Lever-Shift88-5300
2Bolt-Shoulder5-4015
3MUTTER3296-29
4Clamp-Shift Pivot88-4810
5Cable-Clutch55-9321
6Pivot-Shift88-5080
7Rod-Shift Tie88-5530
8Nut-Lock3296-3
9Lever-Trans. Shift88-5340
10Spacer7-5461
11Lockwasher3253-3
12Capscrew Hex. Hd.329-23
13Capscrew322-3
14Washer3256-23
15Knob-Engage Lever62-1292
16Guide-Cable84-5610
17Keeper-Cable88-5930
18Carriage Bolt3230-3
19Locknut3296-39
20Washer-Flat3256-25
