Roth / TORO
>
Ride-On Mowers
>
Traktor
>
12-38 XL
>
391/71202
>
3900001
>
Front Axle Assy.

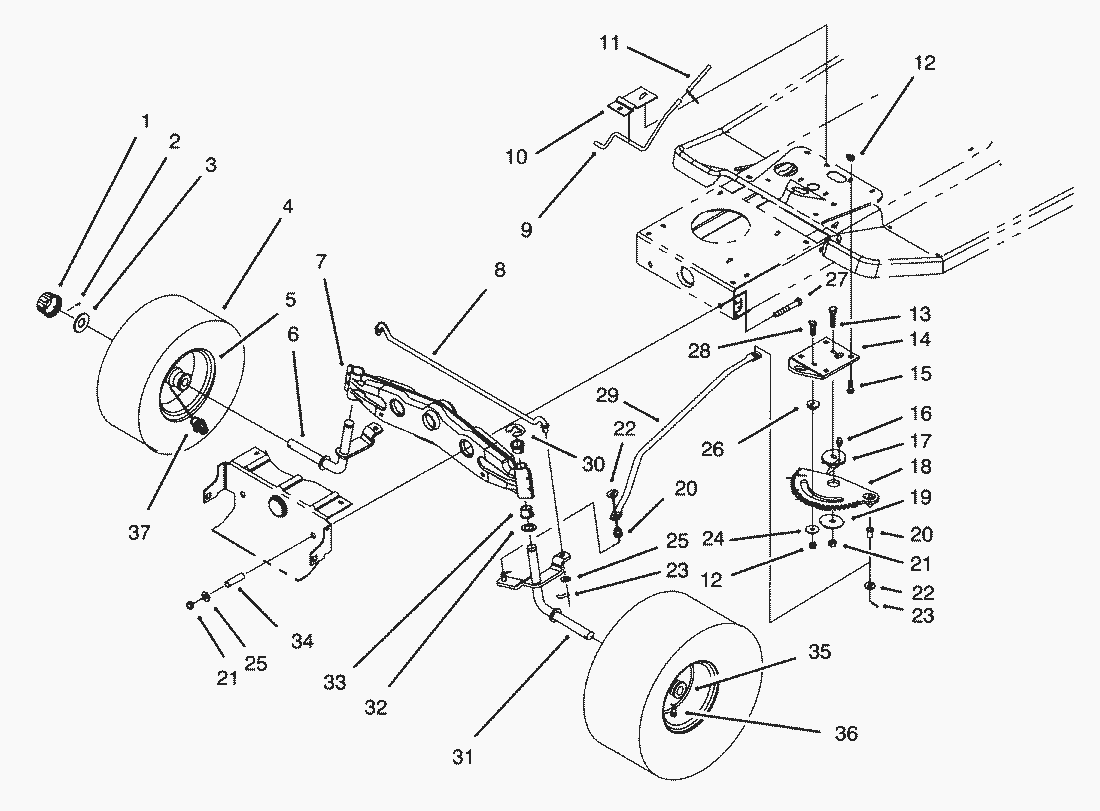

Spare Parts Lists for Toro Roth / TORO Front Axle Assy.
pos.
decription
spare part number
88-4280
88-4070
pos.
decription
spare part number
1
Cap-Hub
61-9780
2
Pin-Cotter
3272-12
3
Washer
28-2480
5
Rim-Front Wheel
88-4370
6
Spindle-R.H.
88-4530
7
Axle-Front
88-4460
8
Rod-Steering Tie
88-5380
9
Rod-Parking Brake
88-5510
10
Bracket-Parking Brake
88-5520
11
Grip-Brake Rod
88-0890
12
MUTTER
3296-29
13
Bolt-Carriage
3231-4
14
Bracket-Steering Rack
88-5130
15
Carriage Bolt
3230-1
16
Fitting-Grease
302-26
17
Bushing-Eccentric
88-4670
18
Rack-Steering
88-5200
19
Washer
111419
20
Bushing-Steering Link
52-2891
21
Locknut
3296-39
22
Washer-Flat
3256-25
23
Pin-Cotter
3272-10
24
Washer
5-4460
25
Flat Washer
3256-24
26
Spacer-Steering Rack
88-5010
27
Bolt
323-13
28
Carriage Bolt
3230-3
29
Link-Drag
88-4830
30
E-Ring-External
32151-48
31
Spindle-L.H.
88-4930
32
Washer-Thrust
3-6498
33
Bushing-Steering Spindle
88-5800
34
Spacer-Front Axle
88-5470
35
Bearing-Wheel
88-4400
36
Valve Stem
232-27
37
Grease Fitting
302-5
Inner Tube
232-39
