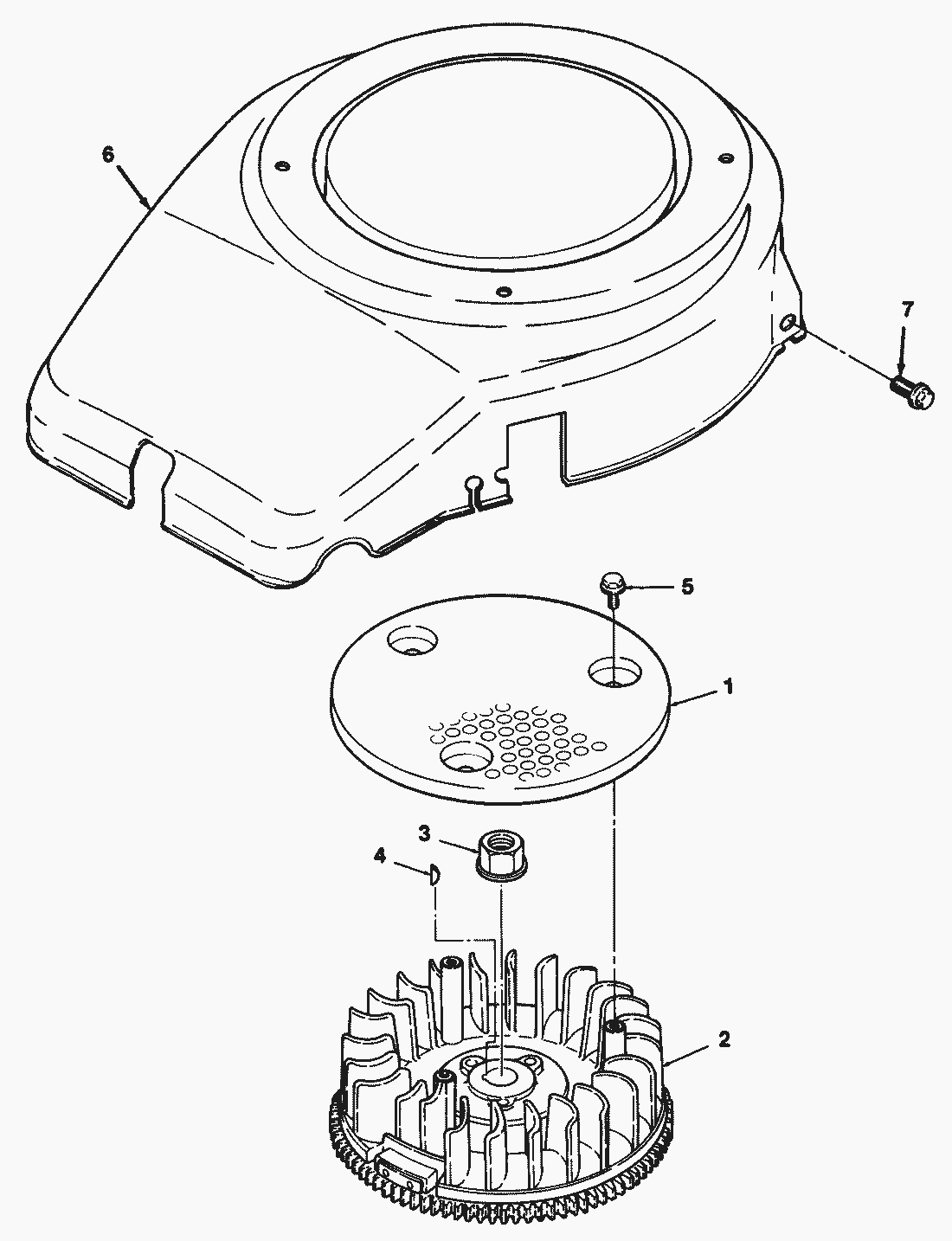

12HP Engine Flywheel & Cover Assy.
Spare Parts Lists for Toro Roth / TORO 12HP Engine Flywheel & Cover Assy.
pos.
decription
spare part number
1
Screen
NN10804
2
Blower Wheel Assembly
NN10712
3
Nut
NN10715
4
Key
NN10713
5
Screw-Hex Hd.
NN10805
6
Housing-Blower
NN10803
7
Bolt
NN10721
