Spare Parts Lists for Toro Roth / TORO Engine B&S Model 28N707-0131-01

pos.	decription	spare part number
50	Manifold-Intake	214047
51	Gasket-Carb (Carb to Elbow)	272465
53	Stud-Carb Mtg	94637
93	Bushing-Throttle	281346
95	Screw-Throttle Valve Mounting Sem	94098
98	Screw-ldle Speed	495800
104	Pin-Float Hinge	231789
105	Valve Assy.-Inlet Needle	231855
106	Inlet Valve Seat	231854
108	Valve-Choke	224540
117	Jet-Main	231858
117	Jet-Main (High Altitude)	231850
118	Valve-Needle	495932
123	Screw-Elbow Mtg	94616
125	Carburetor	497061
127
130	Valve-Throttle	224539
131	Shaft and Lever-Throttle	494379
133	Float-Carburetor	494381
137	Gasket-Float Bowl	281165
138	Washer-Float Bowl Screw	281164
141	Shaft and Lever-Choke	495931
142	Nozzle-Carburetor	231990
147	Jet-Pilot	231985
186	Elbow-Fuel Pipe	493496
187	Pipe-Fuel (11 Long)	393815
240	Filter-Fuel (In Fuel Line)	394358
601	Clamp-Fuel Pipe	93053
618	Spring-Choke Return	262803
634	Washer-Throttle Shaft	398970
634	Seal-Choke Shaft	281168
947	Solenoid	497157
965	Locknut-Air Cleaner Mtg.	94010
975	Bowl-Float	495933
987	Seal-Throttle Shaft	281166

Lists

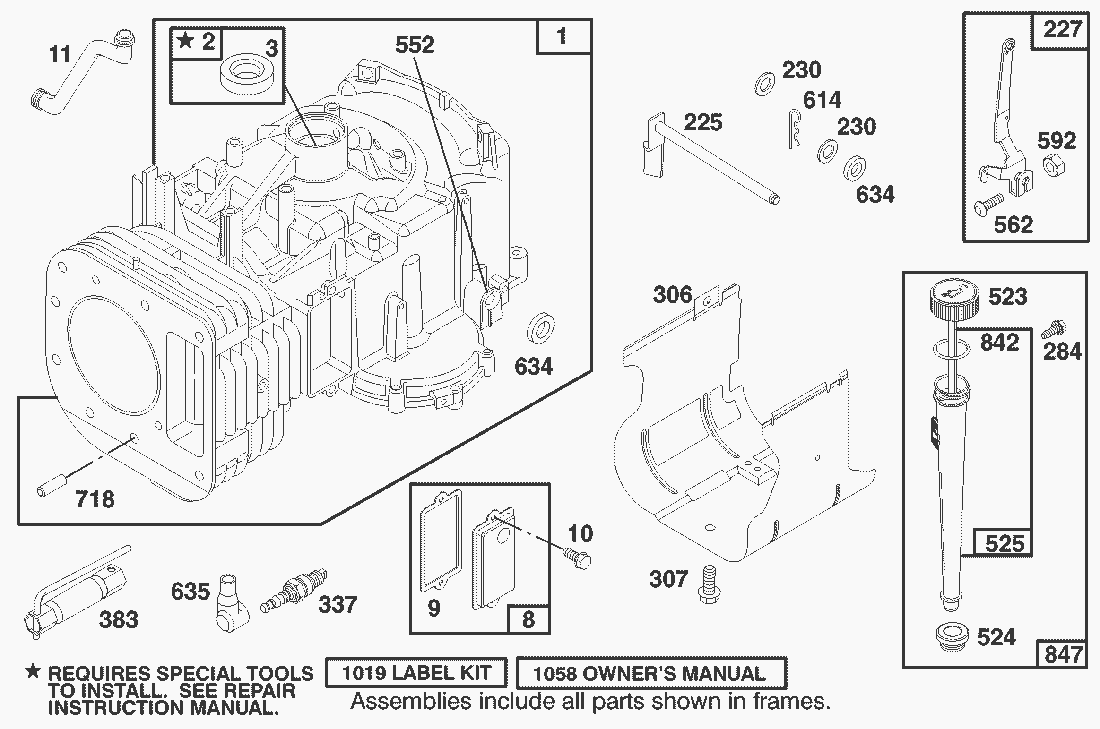

pos.	decription	spare part number
1	Cylinder Assembly	496412
2	Bearing-Cylinder Note: Installation Requires Special Tools	399265
3	Seal-Oil	391086
8	Breather Assembly	495735
9	Gasket-Valve Cover	27803
10	Screw	94621
11	Tube-Breather	281246
225	Crank-Governor	495157
227	Lever Assy.-Governor	493935
230	Washer-Gov.Crank	94742
284	Screw-Sem	94073
306	Shield-Cylinder	225020
307	Screw-Cylinder Shield Mtg. Sem	94623
337	Plug-Spark	491055
383	Wrench-Spark Plug	89838
523	Cap and Dipstick Oil Filler	495230
524	Seal-Filler Tube	281370
525	Tube-Oil Filler	496113
552	Bushing-Gov. Crank	231597
562	Bolt, Governor Lever	92613
592	Nut-Hex.-10-24	231082
614	Cotter, Hair Pin	93306
634	Seal-Oil	491323
635	Elbow-Spark Plug	280872
718	Pin-Cylinder	230192
842	Seal-Oil Filler Cap	270920
847	Fill Group-Oil	496415
1019	Label Kit	496758
1058	Owner s Manual	273132

pos.	decription	spare part number
5	Head-Cylinder	495858
7	Gasket-Cylinder Head	272614
13	Screw-Cylinder Head	94728
33	Valve-Exhaust	495856
34	Valve-lntake	495857
35	Spring-Valve	262811
40	Retainer-Valve	224641
45	Tappet-Valve	262411
52	Gasket-Carb. Mounting	272569
166	Stud-Rocker Arm	94555
192	Ball & Screw-Rocker Arm	492160
238	Cap-Valve	262836
294	Screw-Set	810068
305	Screw-Hex. Washer Hd.	94786
868	Seal-Valve	494435
868	Seal-Valve	272610
871	Bushing-Guide (Intake and Exhaust)	262835
883	Gasket-Exhaust Pipe	272293
1022	Gasket-Rocker Cover	272475
1023	Cover-Rocker	224552
1026	Rod-Push (Intake) Note: 495136 Rod-Push (Exhaust)	494432
1029	Arm-Rocker	224554
1034	Rod-Push (Intake) Note: 495136 Rod-Push (Exhaust)	494432

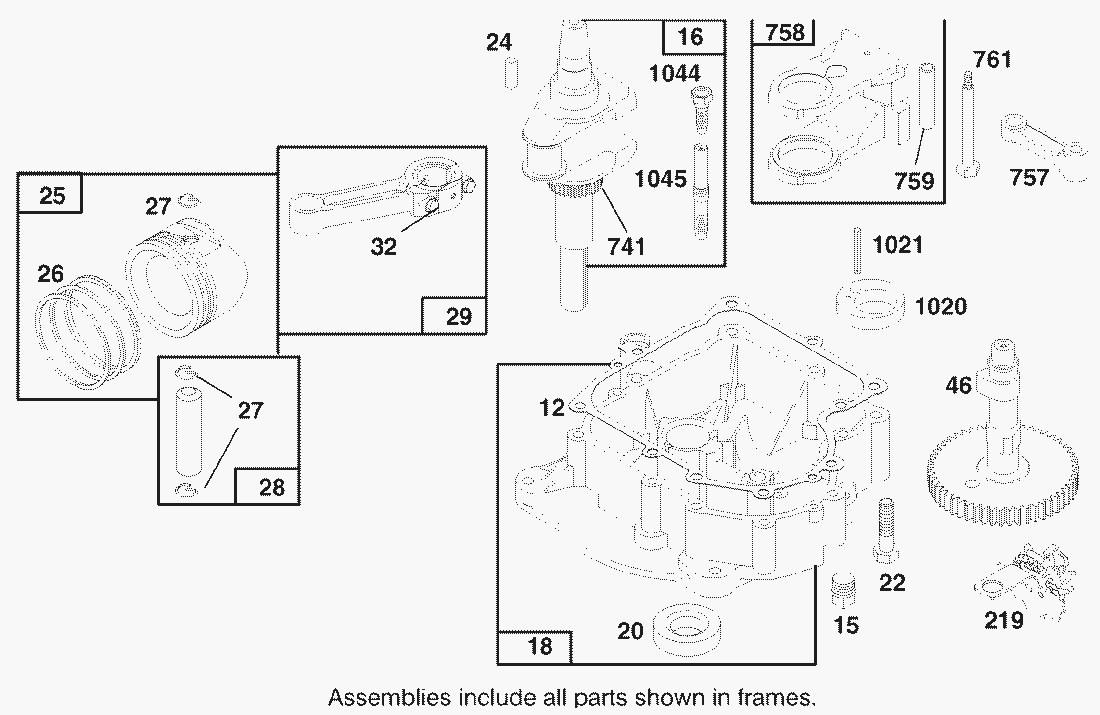

pos.	decription	spare part number
	Gasket-Crkcse Cover, .005 Thick * Included in Gasket Set Part No. 494241.	271997
	Gasket-Crkcse Cover, .009 Thick * Included in Gasket Set Part No. 494241.	271996
15	Plug-Oil Drain	94239
16	Crankshaft	495162
18	Base-Engine	494238
20	Seal-Oil	291675
22	Screw-Base Mtg. Sem	94624
24	Key-Flywheel	222698
25	Piston Assembly (Standard)	494860
26	Ring Set (Standard)	495854
27	Lock-Piston Pin	260924
28	Pin Assembly-Piston-Standard	299691
29	Rod-Connecting	494504
	Rod-Conn. (.020 U.S.)	495490
46	Gear-Cam	496884
219	Oil Slinger	490815
741	Gear-Timing	262932
757	Link-Counterweight	213998
758	Counterweight Assy.	399891
759	Pin Assy., Piston, Std.	298909
761	Screw-Counterweight	94593
1020	Eccentric	262243
1021	Pin-Eccentric	94160
1044	Screw-Hex. Head	94673
1045	Extension-Crankshaft	231828

pos.	decription	spare part number
201	Link-Governor	262767
209	Spring, Governor	260695
216	Link-Choke	262766
222	Plate-Governor Control	495611
232	Spring-Governor Link	262785
265	Clamp, Casing	221535
333	Armature-Magneto	495859
334	Screw, Breaker Arm Mtg. Sem	93381
356	Wire Stop	497708
356	Wire Stop	494705
474	Stator-Alternator (Dual Circuit)	393474
482	Screw-Sem	93621
657	Screw, Sem	93496
729	Clip-Wire	281390
851	Terminal-Ignition Cable	493880
877	Diode and Connector Assy. (Dual Circuit)	393456
878	Alternator Harness Assy. (Dual Circuit)	393362
878	Harness-Alternator	399916
1054	Tie-Cable	270723
