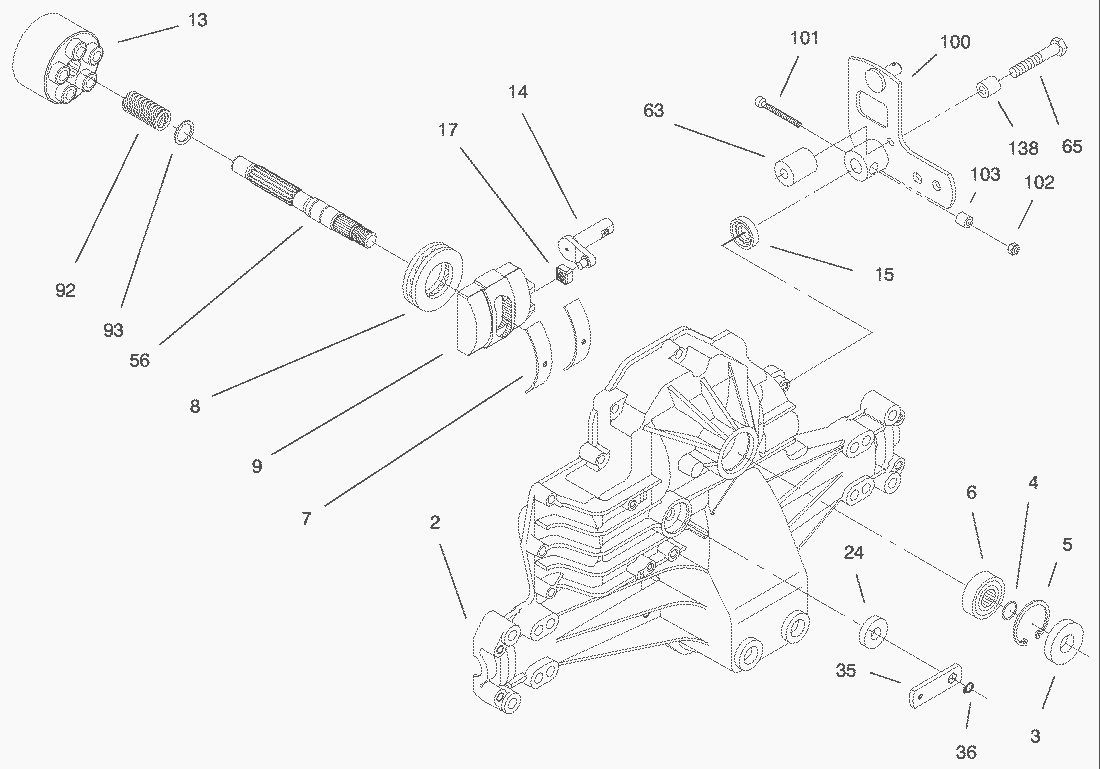

Spare Parts Lists for Toro Roth / TORO Hydro Transaxle Assy.




spare parts list


pos.decriptionspare part number
2Upper Housing Assembly94-1948
3Ring-Wire Retaining92-6543
4Ring-Wire Retaining94-1902
5Ring-Retaining94-1903
6Bearing-Shaft Ball94-1904
7Bearing-Cradle94-1905
8Bearing-Thrust94-6922
9Swashplate-Variable94-1907
13Block-Cylinder Ass y94-1908
14Arm-Trunion94-1909
15Seal-Lip92-6544
17Guide-Slot94-1910
24Seal-Lip92-6545
35Arm-Bypass92-6547
36Ring-Retaining936109
56Shaft-Input94-1925
63
65
92Spring-Block94-1936
93Washer-Block Thrust94-1937
100
101
102
103
138
