Spare Parts Lists for Wolf Mowers Drive, Wheels

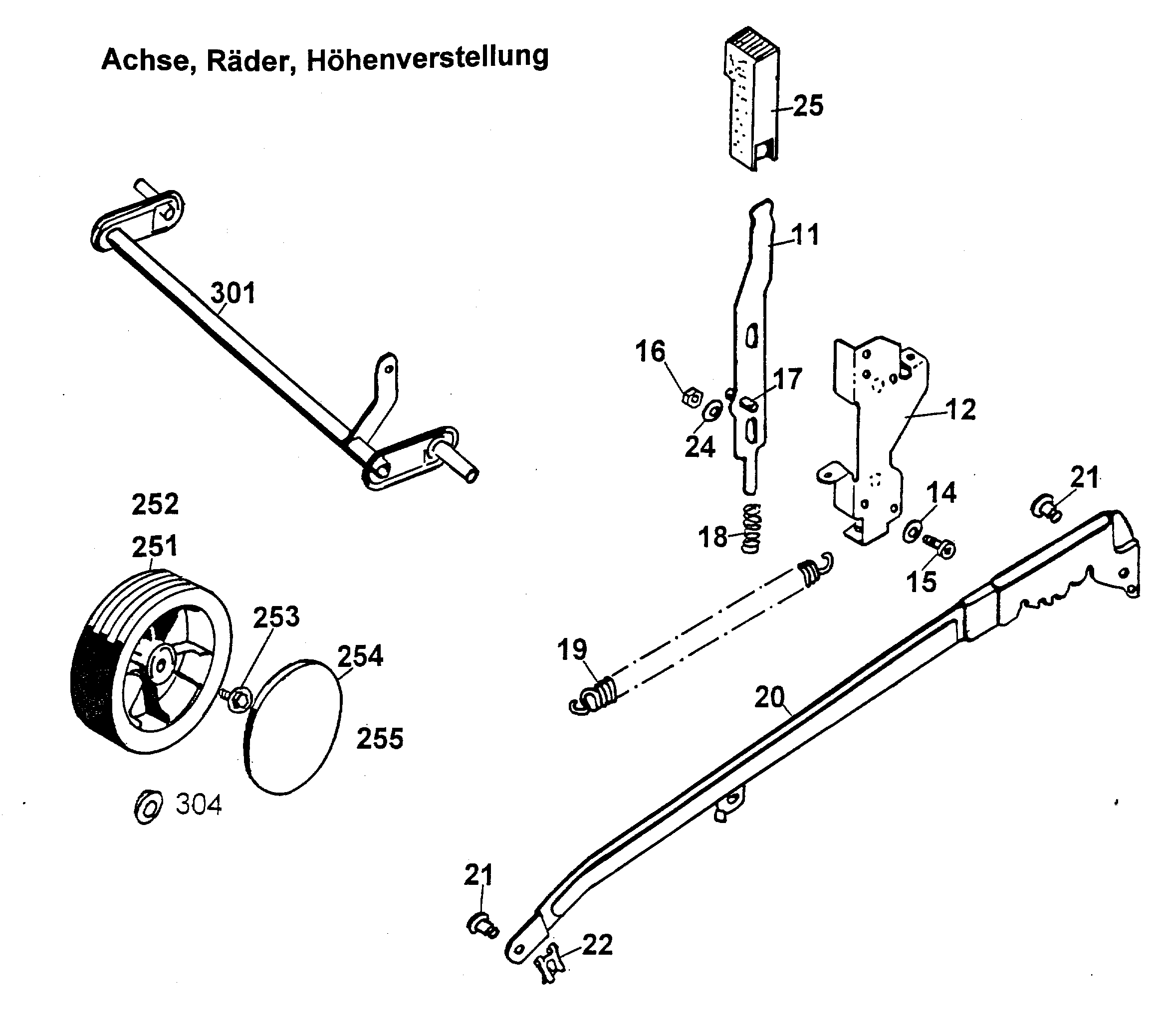

spare parts list


pos.decriptionspare part number
11Lever With Ref. No. 174740 013
12Guiding6340 020
14Flat Washer 5.3 Din 9021 B0017 287
15Screw0012 864
16Nut0016 311
17Dowel Pin0018 864
18Spring4740 207
19Spring4740 206
20Rod4942 020
21Bolt6340 214
22Retaining Clip0020 981
24Washer0017 290
25Button4740 100
251Wheel ø 170 mm6440 050
252Wheel ø 200 mm6440 051
253Screw0010 893
254Cover ø 170 mm6450 520
255Cover ø 200 mm6450 530
301Axle4740 030
304Bearing6340 516
